Description

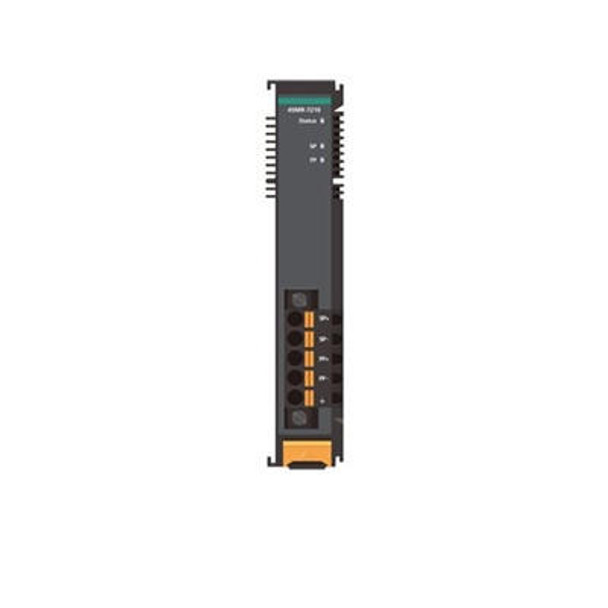

Module for ioThinx 4500 Series, system and field power input, -20 to 60C operating temperature
System Power Parameters
-
Power Connector
- Spring-type Euroblock terminal
-
Over-Current Protection
- 1 A @ 25°C
-
No. of Power Inputs
- 1
-
Input Voltage
- 12 to 48 VDC
-
Power Consumption
- 800 mA @ 12 VDC
-
Output Current
- 1 A (max.)
-
Over-Voltage Protection
- 55 VDC
Field Power Parameters
-
Power Connector
- Spring-type Euroblock terminal
-
No. of Power Inputs
- 1
-
Output Current
- 2 A (max.)
-
Input Voltage
- 12/24 VDC
-
Over-Current Protection
- 2.5 A @ 25°C
-
Over-Voltage Protection
- 33 VDC
Physical Characteristics
-
Housing
- Plastic
-
Dimensions
- 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
-
Installation
- DIN-rail mounting
-
Wiring
- I/O cable, 18 to 24 AWG
-
Strip Length
- I/O cable, 9 to 10 mm
Environmental Limits
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
-
Altitude
- Up to 4000 meters
Standards and Certifications
-
EMC
- EN 55032/24
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
-
Shock
- IEC 60068-2-27
-
Vibration
- IEC 60068-2-6
Declaration
-
Green Product
- RoHS, CRoHS, WEEE
MTBF
-
Time
- 2,550,077 hrs
-
Standards
- Telcordia SR332
Warranty
5 years
