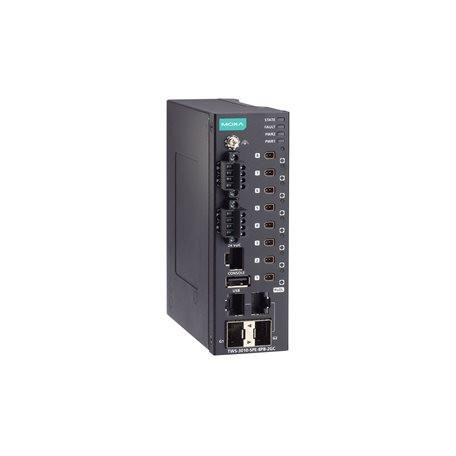

Managed single-pair Ethernet switch with 2 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 8 10BASE-T1L ports with IEC 63171-2 SPE connectors and PoDL power classes 10, 11, and 12, dual 24 VDC power supplies, -40 to 75°C operating temperature
Input/Output Interface
-
Alarm Contact Channels
- 1
Relay output with current carrying capacity of 1 A @ 24 VDC
-
Buttons
-
Digital Input Channels
-
Digital Inputs
- +13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
-
Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
-
Standards
- IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP
IEEE802.3cg for 10Base-T1L and PoDL
-
SPE Ports (10Base-T1L)
- 8
IEC 63171-2 SPE connectors
PoDL classes 10, 11, and 12
Ethernet Software Features
-
Filter
- 802.1Q VLAN
BPDU Guard
BPDU Filter
GMRP
GVRP
IGMP v1/v2/v3
Port-based VLAN
-
Industrial Protocols
- EtherNet/IP
Modbus TCP
PROFINET IO Device
-
Management
- LLDP
Back Pressure Flow Control
BOOTP
Port Mirroring
DHCP Option 66/67/82
DHCP Server/Client
Fiber check
Flow control
IPv4/IPv6
RARP
RMON
SCP
SMTP
SNMP Inform
SNMPv1/v2c/v3
Syslog
Telnet
TFTP
-
MIB
- Ethernet-like-MIB
MIB-II
Bridge-MIB
P-BRIDGE MIB
Q-BRIDGE-MIB
RMON MIB Groups 1, 2, 3, 9
RSTP MIB
-
Redundancy Protocols
- Link Aggregation
MRP
MSTP
RSTP
STP
-
Security
- Broadcast storm protection
HTTPS/SSL
TACACS+
SNMPv3
Sticky MAC
NTP authentication
Port Lock
RADIUS
SSH
SMTP with TLS
-
Time Management
Switch Properties
-
IGMP Groups
-
MAC Table Size
-
Max. No. of VLANs
-
Packet Buffer Size
-
Priority Queues
-
VLAN ID Range
USB Interface
-
Storage Port
- USB Type A (for ABC-02 only)
LED Interface
-
LED Indicators
- PWR1, PWR2, STATE, FAULT, Gigabit combo port, SPE port, SPE PoDL indicator
Serial Interface
-
Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Rotary Switch Configuration
Power Parameters
-
Connection
- 2 removable 4-contact terminal block(s)
-
Input Current
-
Input Voltage
- 24 VDC
Redundant dual inputs
-
Operating Voltage
-
Overload Current Protection
-
Reverse Polarity Protection
Physical Characteristics
-
Housing
-
IP Rating
-
Dimensions
- 43 x 135 x 111 mm (1.69 x 5.32 x 4.37 in)
-
Weight
-
Installation
- DIN-rail mounting
Wall mounting (with optional kit)
Environmental Limits
-
Operating Temperature
- -40 to 75°C (-40 to 167°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
-
Altitude
- Up to 2,000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes
Standards and Certifications
-
Safety
- UL 61010-2-201
EN IEC 62368-1
-
EMC
-
EMI
-
EMS
- IEC 61000-4-2 ESD: Level 3
IEC 61000-4-3 RS: Level 3
IEC 61000-4-4 EFT: Level 3
IEC 61000-4-5 Surge: Level 3
IEC 61000-4-6 CS: Level 3
IEC 61000-4-8 PFMF: Level 3
-
Vibration
- IEC 60068-2-6
IEC 60068-2-64
-
Shock
-
Freefall
