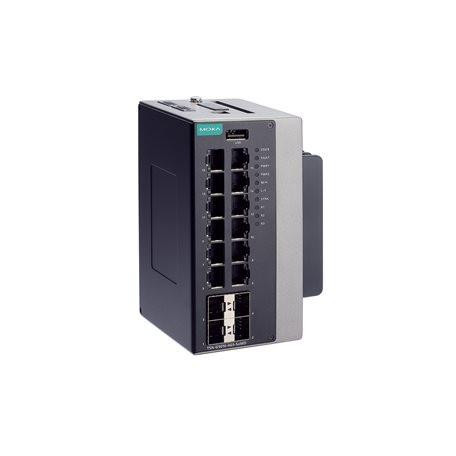

TSN-capable managed Ethernet switch with 12 10/100/1000BaseT(X) ports, 4 fixed 1000BaseSFP ports, -40 to 70°C operating temperature
Ethernet Interface
-
Standards
- IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEE 1588v2 PTP Precision Time Protocol (hardware-based)
IEEE 802.1 AS for Time Synchronization
IEEE 802.1 Qbv for Time-aware Shaper
-
10/100/1000BaseT(X) Ports (RJ45 connector)
- 12
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
-
1000BaseSFP Slots
Ethernet Software Features
-
Management
- IPv4/IPv6
LLDP
SMTP
SNMP Inform
SNMPv1/v2c/v3
SNMP Trap
DHCP Server/Client
ARP
TFTP
SFTP
HTTP
HTTPS
SSH
Telnet
Private MIB
Syslog
Port Mirroring
-
MIB
- Bridge-MIB
Ethernet-like-MIB
IEEE8021-AS-MIB
IEEE8021-SPANNING-TREE-MIB
IF-MIB
LLDP-MIB
PTPBASE-MIB
Q-BRIDGE-MIB
RFC1213-MIB
SNMPv2-MIB
-
Redundancy Protocols
-
Security
- Broadcast storm protection
Trust access control
Login and Password Policy
HTTPS/SSL
SSH
SNMPv3
RADIUS
TACACS+
-
Time Management
- SNTP
NTP Server/Client
IEEE 1588v2 PTP (hardware-based)
IEEE 802.1 AS
IEEE 802.1 Qbv
-
Filter
- 802.1Q VLAN
Static Multicast
Switch Properties
-
MAC Table Size
-
Max. No. of VLANs
-
VLAN ID Range
-
Packet Buffer Size
Serial Interface
-
Console Port
- RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface
-
USB Connector
- (This interface is reserved for future use.)
Input/Output Interface
-
Alarm Contact Channels
- 1
Relay output with current carrying capacity of 1 A @ 24 VDC
-
Buttons
-
Digital Input Channels
-
Digital Inputs
- +13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
LED Interface
-
LED Indicators
- STATE, FAULT, PWR1, PWR2, M/H, C/T, SYNC, R1, R2, R3
Power Parameters
-
Connector
- 2 removable 4-contact terminal block(s)
-
Input Voltage
- 12 to 48 VDC
Redundant dual inputs
-
Operating Voltage
-
Input Current
-
Overload Current Protection
-
Reverse Polarity Protection
Physical Characteristics
-
Housing
-
IP Rating
-
Dimensions
- 84 x 140 x 105 mm (3.31 x 5.51 x 4.13 in)
-
Weight
-
Installation
- DIN-rail mounting
Wall mounting (with optional kit)
Environmental Limits
-
Operating Temperature
- -40 to 70°C (-40 to 158°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
Safety
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
-
Shock
-
Freefall
-
Vibration
