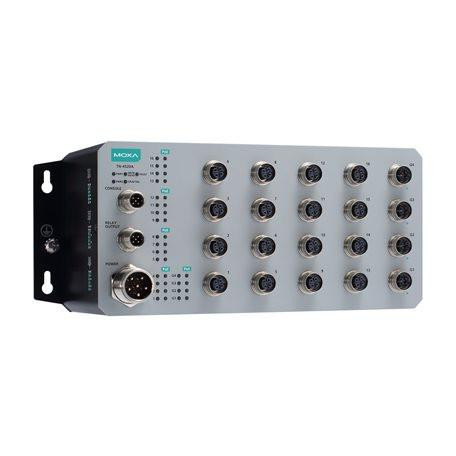

Layer 2 managed Ethernet switch with 16 PoE 10/100BaseT(X) ports with M12 connector, 4 PoE 100/1000BaseT(X) ports with M12 connector, 1 (dual input) 24 to 110 VDC power supply, -40 to 70°C operating temperature
Input/Output Interface
-
Alarm Contact Channels
- 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Ethernet Interface
-
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)
Ethernet Software Features
-
Broadcast Forwarding
-
Configuration Options
- Command Line Interface (CLI) through Serial/Telnet/SSH
Web Console (HTTP/HTTPS)
Windows Utility
-
Filter
- GMRP
GVRP
802.1Q VLAN
Port-based VLAN
Static Multicast
Multicast Filtering
IGMP Snooping v1/v2/v3
IGMP Querier
DHCP Filter
-
Management
- IPv4/IPv6
Flow control
LLDP
ICMP
Port Mirroring
QoS/CoS/ToS
RMON
SMTP
SNMP Inform
SNMP Trap
SNMPv1/v2c/v3
Syslog
Account Management
Loop Protection
DNS Server
DHCP option 82 (relay agent)
Port-based DHCP Server
DHCP Server (options 1/3/12/15/42/50/55)
DHCP Client (options 1/3/50/51/53/54/55/57/61/66/67)
-
MIB
- Bridge MIB
Ethernet-like MIB
MIB-II
P-BRIDGE MIB
Q-BRIDGE MIB
RMON MIB Groups 1, 2, 3, 9
RSTP MIB
-
Redundancy Protocols
- MSTP
RSTP
STP
Turbo Chain
Turbo Ring v1/v2
Turbo Ring with DRC
Static Port Trunk
LACP
-
Security
- Access control list
Trust access control
Broadcast storm protection
TACACS+
RADIUS
HTTPS/SSL
SSH
Rate Limit
SCP
-
Time Management
- IEEE 1588 PTP v1/v2
NTP Server/Client
SNTP Server/Client
Switch Properties
-
Max. No. of VLANs
-
VLAN ID Range
-
Jumbo Frame Size
-
IGMP Groups
- 512 (shared with static multicast)
LED Interface
-
LED Indicators
- PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports
Serial Interface
-
Console Port
- M12 A-coded male connector
Power Parameters
-
Input Current
-
Input Voltage
-
No. of Power Inputs
-
Power Connector
-
Operating Voltage
-
Overload Current Protection
-
Reverse Polarity Protection
-
Power Consumption (Max.)
- With PoE disabled:
16.1 W @ 24 VDC, 15.7 W @ 110 VDC
With PoE enabled:
31.7 W @ 24 VDC, 23.1 W @ 110 VDC
Physical Characteristics
-
Dimensions
- 279.6 x 115 x 122.3 mm (11.01 x 4.53 x 4.82 in)
-
Housing
-
IP Rating
-
Weight
-
Installation
Environmental Limits
-
Operating Temperature
- -40 to 70°C (-40 to 158°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
-
Altitude
Standards and Certifications
-
EMC
-
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
-
Freefall
-
Radio Frequency
-
Railway
- EN 50121-4
EN 50155
IEC 60571
-
Railway Fire Protection
-
Safety
- UL 62368-1
IEC 62368-1
EN 62368-1
-
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
-
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
MTBF
-
Standards
- Telcordia Standard SR-332
-
Time
