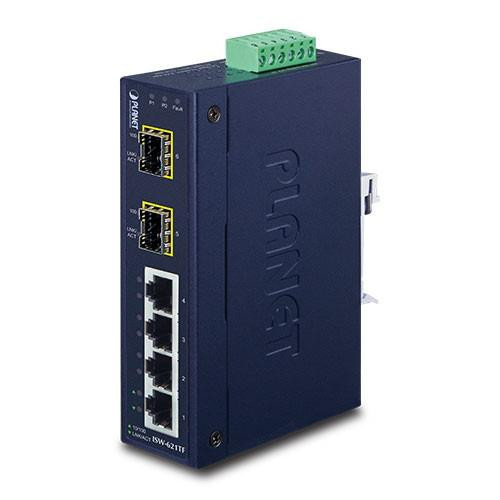

PLANET Technology ISW-621TF Ethernet switch

Description
Details
Warranty
Customer Reviews
Data Sheet

Description

4-Port 10/100Base-TX + 2-Port 100Base-FX SFP Industrial Ethernet Switch with Wide Operating Temperature

Hardware Specifications
Copper Interface	Ports 　‧4 x 10/100Base-TX, auto negotiation, auto-MDI/MDI-X Cable 　‧10Base-T: 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) 　‧100Base-TX: 2-pair UTP Cat. 5, 5e, 6 cable (100meters, max.)
Optical Interface	Port / Type 　‧2 x 100Base-FX / LC interfaces Cable 　‧Multi-mode: 50/125μm / 62.5/125μm fiber 　‧Single-mode: 9/125μm fiber
Dimensions (W x D x H)	135 x 87.8 x 32 mm
Weight	442g
Power Requirements	12~48V DC, Redundant power with polarity reverse protection
Power Consumption / Dissipation	Max. 16 watts / 54 BTU
Installation	DIN rail kit / wall mount ear
Alarm	Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Buffer	1Mbit
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Switch Fabric	1.2Gbps
Throughput (Packet Per Second)	0.89Mpps @ 64Bytes
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x Flow Control
Regulation Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~85 degrees C
Humidity	Operating: 5~90% Storage: 5~90% (non-condensing)

Ordering Information
ISW-621TF	4-Port 10/100Base-TX + 2-Port 100Base-FX SFP Industrial Ethernet Switch (-40 ~ 75 degrees C operating temperature)

Details

Warranty

5 years

Customer Reviews

Data Sheet

Click the PDF to know More details
