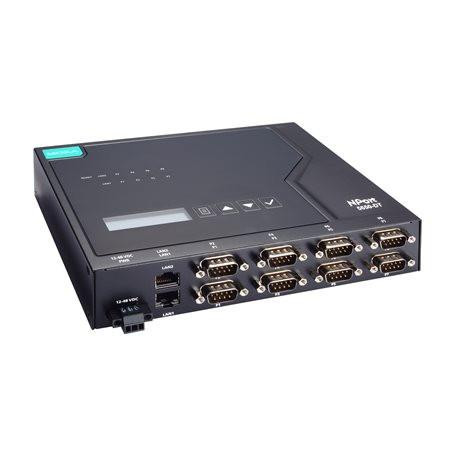

8-port RS-232/422/485 compact desktop serial device server, -10 to 60°C operating temperature
Ethernet Interface
-
10/100/1000BaseT(X) Ports (RJ45 connector)
- 2
Auto MDI/MDI-X connection
-
Magnetic Isolation Protection
Ethernet Software Features
-
Configuration Options
- Web Console (HTTPS)
Windows Utility
Device Search Utility (DSU)
MCC Tool
Serial Console
-
Management
- ARP
DHCP Client
DNS
HTTPS
ICMP
IPv4/IPv6
SMTP
SMTPS
SNMPv1/v2c/v3
SNTP
TCP/IP
UDP
WINS
-
Windows Real COM Drivers
- Windows 11, 10, 8.1, 8, and 7
Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2
-
Linux Real TTY Drivers
- Kernel versions 6.x, 5.x, and 4.x
-
Fixed TTY Drivers
- macOS versions: 14, 13, 12, and 11
-
Arm®-based Platform Support
- Windows 11
Linux Kernel 6.x, 5.x and 4.x
macOS 14, 13, 12 and 11
-
Virtual Machine
- VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x) VMware Fusion (Windows on macOS 14, 13, 12, and 11)
Parallels Desktop (Windows on macOS 14, 13, 12, and 11)
-
Time Management
-
MIB
- MIB-II
RFC1213, RFC1317
Private MIB
Security Functions
-
Root of Trust
- Secure Boot
True Random Number Generator (TRNG)
-
Authentication
- Local database (RBAC support)
-
Encryption
- HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC
SNMPv3: AES-128, SHA-256, SHA-384
Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC
Config Import/Export: AES-256, SHA-256, HMAC
-
Security Protocols
Serial Interface
-
Connector
- NPort 5600-8-DT-G2 models: DB9 male
NPort 5600-16-DT-J-G2 models: 8-pin RJ45
NPort 5600-8-DTS-J-G2 models: 10-pin RJ50
-
No. of Ports
- NPort 5600-8-DT-G2/5600-8-DTS-J-G2 models: 8
NPort 5600-16-DT-G2 models: 16
-
Serial Standards
- NPort 5610-DT-G2/5610-DTS-G2 models: RS-232
NPort 5650-DT-G2/5650-DTS-G2 models: RS-232, RS-422, RS-485
-
Secure Operation Modes
- Secure Pair Connection
Secure Real COM
Secure TCP Client
Secure TCP Server
-
Standard Operation Modes
- Disabled
Pair Connection
Real COM
RFC2217
TCP Client
TCP Server
UDP
-
Bitrate
- 50 bps to 921.6 kbps (supports non-standard baudrates)
-
Data Bits
-
Stop Bits
-
Parity
- None, Even, Odd, Space, Mark
-
Flow Control
- None
RTS/CTS
DTR/DSR
XON/XOFF
-
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)
-
Terminator for RS-485
-
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
-
RS-485-4w
-
RS-485-2w
Power Parameters
-
No. of Power Inputs
-
Input Current
-
Input Voltage
-
Reverse Polarity Protection
-
Source of Input Power
Reliability
-
Automatic Reboot Trigger
-
Alert Tools
- Built-in buzzer and RTC (real-time clock)
Physical Characteristics
-
Housing
-
Dimensions (without ears)
- NPort 5600-DT-G2 models: 197 x 125 x 44 mm (7.76 x 4.92 x 1.73 in)
NPort 5600-DTS-G2 models: 210 x 95 x 25 mm (8.27 x 3.74 x 0.98 in)
-
Weight
- NPort 5600-8-DT-G2 models: 880 g (1.94 lbs)
NPort 5600-16-DT-J-G2 models: 875 g (1.93 lbs)
NPort 5600-8-DTS-J-G2 models: 610 g (1.34 lbs)
-
Weight (including package)
- NPort 5600-8-DT-G2 models: 1,315 g (2.90 lbs)
NPort 5600-16-DT-J-G2 models: 1,285 g (2.83 lbs)
NPort 5600-8-DTS-J-G2 models: 925 g (2.04 lbs)
-
Installation
- Desktop
Wall mounting
DIN-rail mounting (with optional kit)
Environmental Limits
-
Operating Temperature
- Standard models: -10 to 60°C (14 to 140°F)
Wide temp. models: -40 to 75°C (-40 to 167°F)
-
Storage Temperature (package included)
- -40 to 75°C (-40 to 167°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
-
Safety
- IEC 62368-1
UL 62368-1
EN 62368-1
-
Vibration
-
Package Drop Test
MTBF
-
Time
- NPort 5610-8-DT-G2: 29,666 hrs
NPort 5610-8-DT-G2-T: 2,729,079 hrs
NPort 5650-8-DT-G2: 29,612 hrs
NPort 5650-8-DT-G2-T: 2,339,917 hrs
NPort 5650I-8-DT-G2: 29,543 hrs
NPort 5650I-8-DT-G2-T: 1,971,992 hrs
NPort 5610-16-DT-J-G2 models: 2,043,468 hrs
NPort 5650-16-DT-J-G2 models: 1,638,263 hrs
NPort 5610-8-DTS-J-G2 models: 3,499,034 hrs
NPort 5650-8-DTS-J-G2 models: 2,883,685 hrs
-
Standards
- Telcordia Standard SR-332
Telcordia SR-332 Standard Issue 4
