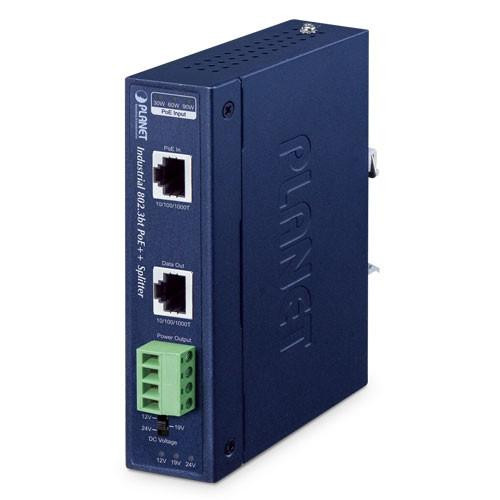

Planet IPOE-173S PoE++ Splitter

Description
Details
Warranty
Customer Reviews
Data Sheet

Description

Industrial Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter

Hardware Specifications
Interface	PoE Input Port 　1 10/100/1000 BASE-T RJ45 Data Output Port 　1 10/100/1000 BASE-T RJ45 DC Out Plug Connector 　1 removable 4-pin terminal block DIP Switch 　12V/19V/24V DC output
LED Indicators	PoE Input: 　30W (Green) 　60W (Green) 　90W (Green) DC Voltage: 　12V (Green) 　19V (Green) 　24V (Green)
Data Rate	10/100/1000Mbps
Dimensions (W x D x H)	32 x 87.8 x 135 mm
Weight	440g
Installation	DIN-rail/wall mountable
ESD Protection	4KV
EFT Protection	4KV
Enclosure	IP30 metal case
Power Requirements	4-pair 802.3at PoE+ and 802.3bt PoE++ PoE DC 48 ~ 54V
Power Consumption	System on with PoE input 　5.3 watts Full loading with maximum 12V DC, 6.8A output 　75.83 watts
Power Output	802.3 bt type 4 PoE++ input 　12V DC, 6.8A (max.) 　19V DC, 4.3A (max.) 　24V DC, 3.3A (max.)
Network Cable	802.3 bt PoE++ input (60W+) 　4-pair UTP Cat. 5e, 6, up to 100m (328ft) 802.3at PoE+ input (30W) 　2-pair UTP Cat. 5, 5e, 6, up to 100m (328ft)
Power over Ethernet
PoE Standard	802.3 bt PoE++ 4-pair 802.3at PoE+
Power Output	DC 12V/19V/24V by DIP switch control
PoE Power Supply Type	End-span + Mid-span End-span Mid-span
Power Pin Assignment	1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Standards Conformance
Standards Compliance	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Type 4
Regulatory Compliance	FCC Part 15 Class A, CE
Environment
Operating Temperature	-40~ 75 degrees C
Storage Temperature	-40~ 85 degrees C
Humidity	5 ~ 95% (non-condensing)

Ordering Information
IPOE-173S	Industrial Single-Port 10/100/1000Mbps 802.3bt PoE++ Splitter
