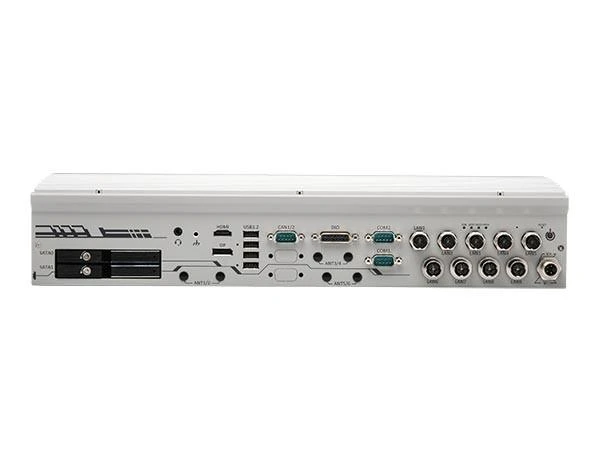

GT-92RL-H is a 19" rack mount, wide-temperature, fanless GPU computer that delivers excellent CPU and GPU performance by leveraging Intel® 14th/ 13th/ 12th-Gen platform and NVIDIA® RTX™ 2000 ADA. Thanks to its high-performance and flexible camera expansion, GT-92RL-H is ideal for multi-camera applications requiring real time responses, e.g., pantograph and track gauge monitoring, video analytics in train carriages, track object identification, and tunnel inspection, etc.
GT-92RL-H has a proven thermal design to guarantee reliable system operation from -40°C to 55°C. It features a passive-cooling design for the system and 70W GPU card. Supporting eight GigE cameras (or IP cameras) and four USB3 cameras, GT-92RL-H is ideal for various vision-based AI applications on rolling stocks with its 110V DC input design and EN 50155/ EN 45545 certifications. It also provides flexible data storage options, including one M.2 2280 Gen4x4 NVMe providing up to 7000 MB/s extreme read/write speeds and two 2.5" SATA HDD/SSD to expand storage capacity.
With performance enhancements and comprehensive I/Os, GT-92RL-H is the perfect edge AI inference platform for rolling stock applications.
| System Core |
| Processor |
Supporting Intel® 14th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)[1][2]
- Intel® Core™ i9-14900/ i9-14900T
- Intel® Core™ i7-14700/ i7-14700T
- Intel® Core™ i5-14500/ i5-14400/ i5-14500T
- Intel® Core™ i3-14100/ i3-14100T |
Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP)
- Intel® Core™ i9-13900E/ i9-13900TE
- Intel® Core™ i7-13700E/ i7-13700TE
- Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE
- Intel® Core™ i3-13100E/ i3-13100TE |
Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 35W/ 65W TDP)
- Intel® Core™ i9-12900E/ i9-12900TE
- Intel® Core™ i7-12700E/ i7-12700TE
- Intel® Core™ i5-12500E/ i5-12500TE
- Intel® Core™ i3-12100E/ i3-12100TE
- Intel® Pentium® G7400E/ G7400TE
- Intel® Celeron® G6900E/ G6900TE |
| Chipset |
Intel® R680E platform controller hub |
| Graphics |
Integrated Intel® UHD Graphics 770 (32EU) |
| Acceleration GPU |
NVIDIA® RTX™ 2000 ADA |
| Memory |
Up to 128 GB ECC/ non-ECC DDR5 4800 SDRAM (two SODIMM slots) |
| AMT |
Supports Intel vPro/ AMT 16.0 |
| TPM |
Supports dTPM 2.0 |
| I/O Interface |
| Ethernet Port |
1x GbE Ethernet by Intel I219-LM via M12 x-coded connector(with WoL)
8x GbE Ethernet by Intel I350-AM4 via M12 x-coded connectors |
| POE+ |
None |
| CAN Bus |
2x isolated CAN 2.0 port, supporting SocketCAN in Linux |
| USB |
4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors |
| Video Port |
1x HDMI 1.4, supporting 4096×2160 resolution
1x DisplayPort, supporting 4096 x 2304 resolution |
| Serial Port |
2x isolated 3-wire RS232/ 422/ 485 port (COM1/ COM2) |
| Isolated DIO |
4-CH isolated DI and 4-CH isolated DO |
| Audio |
1x 3.5 mm jack for mic-in and speaker-out |
| Storage interface |
| SATA HDD |
2x hot-swappable HDD trays for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 |
1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD |
| Internal Expansion Bus |
| Mini PCI Express |
2x full-size mini PCI Express socket with SIM slot |
| Power Supply |
| DC Input |
43V to 160V DC input (M12 K-coded) |
| Mechanical |
| Dimension |
440mm (W) x 250mm (D) x 88mm (H) (excl. rack-mount bracket) |
| Weight |
8.0 kg |
| Mounting |
Rack-mounting (optional) and wall-mounting (optional) |
| Environmental |
| Operating temperature |
with 35W CPU
-40°C ~ 55°C [1], compliant with EN50155 Class OT2
with 65W CPU
-40°C ~ 35°C [1] |
| Storage temperature |
-40°C ~ 85°C |
| Humidity |
10% ~ 90% , non-condensing |
| Vibration |
EN 50155:2021/ IEC 61373, Category I, Class B - Body mounted |
| Shock |
EN 50155:2021/ IEC 61373, Category I, Class B - Body mounted |
| EMC |
EN 50121 (EN 50155 EMC)
CE/FCC Class A, according to EN 55032 & EN 55035 |
| EN 50155 |
All mandatory sections of EN 50155:2021 (110V)
- Interruptions of voltage supply Class S3: 0V/ 20ms
- Supply change-over Class C2: 0V/ 30ms
- Voltage withstand test: 1500V DC |
| EN 45545 |
EN 45545-2 (Fire protection on railway vehicles |
[1] For sub-zero operating temperature, a wide temperature HDD or Solid State Disk (SSD) is required.
GT-92RL-H
EN50155 & EN45545 19" rack mount railway GPU computer including NVIDIA® RTX™ 2000 ADA, supporting Intel® 14th/ 13th / 12thGen Core™ processor, 43V to 160V DC input with isolation
Optional Accessories
Cbl-M12X8M-RJ45-CAT6A-500CM
M12 (8-pole-X-coded) to RJ45, CAT6A, Length: 500cm
Cbl-DB9F-2DB9M-15CM
DB9 (Female) to 2x DB9 (Male), Length: 15cm for CAN1/2
AccsyBx-SplicingConnector
Accessory box kits for Splicing Connector 2-Pole, included 10pcs
AccsyBx-CONN_M12_K_5P_Female
Accessory box kits for CONN Circular M12 K-Code 5P Female, included 10pcs
Rmkit-GT92
Rack-mount assembly for GT-92 series
Wmkit-GT92
Wall-mount assembly for GT-92 series
mPCIe-M2B
NGFF M.2 key B to mini-PCIe adapter with dual nano-SIM slots
mPCIe-M2E
NGFF M.2 key E to mini-PCIe adapter
mPCIe-M2M
NGFF M.2 key M to mini-PCIe adapter
