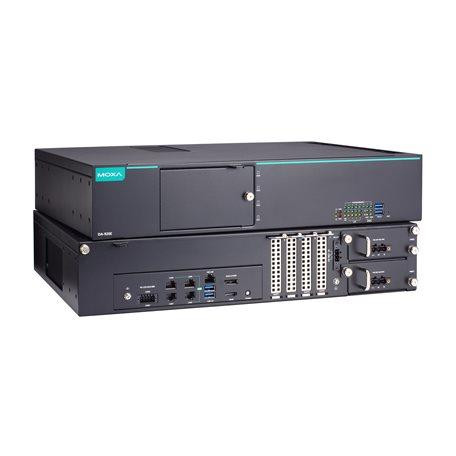

IEC 61850-3 2U rackmount server with Intel® Xeon® D-1834 processor, 8P/16T core, 1 DA-PWR-200-HV, and 1 DA-PWR-200-WV power modules, -25 to 55°C operating temperature
Computer
-
CPU
- Intel® Xeon® D-1834 (8 Cores)
-
System Memory Slot
- RDIMM/UDIMM DDR4 slots x 4 (256 GB max.)
-
DRAM
- 256 GB max.
(RDIMM/UDIMM x 4, each supporting up to 2666 MHz and 64 GB max. per module)
-
Graphics Controller
- AST2600 (DisplayPort)
SM768 (HDMI)
-
Storage Slot
- M.2 M-key 2280 sockets x 1 (NVMe PCIe Gen 3 x2)
2.5-inch SSD slots x 4 (SATA)
-
Supported OS
- Windows drivers:
Windows Server 2022
Windows Server 2025
Linux drivers (via x86 Linux SDK Wizard):
- Canonical® Ubuntu® Server LTS 22.04
- Canonical® Ubuntu® Server LTS 24.04
- Red Hat® Enterprise Linux 9
- Debian 13
Computer Interface
-
Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2, 1 shared LAN and 1 dedicated management LAN, out-of-band management support
Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 3
-
Serial Ports
- RS-232/422/485 ports x 2 (software-selectable, Terminal-block connector)
-
Expansion Slots
- PCIe x16 slot x 1 (Gen 4, low-profile)
PCIe x8 slot x 1 (Gen 3, low-profile)
PCIe x4 slots x 1 (Gen 3, low-profile)
-
USB 3.0
- USB 3.2 hosts x 4 (Gen1, font 2, rear 2)
-
Video Output
- DisplayPort x 1 (default display)
(1.1a, up to 1920 x 1080 resolution at 60 Hz)
HDMI x 1, HDMI connector (type A)
(1.4a, up to 1920 x 1200 resolution @ 60Hz)
-
Secure Boot
-
TPM
Serial Interface
-
Bitrate
-
Connector
-
Isolation
-
Serial Standards
Serial Signals
-
RS-232
-
RS-422
-
RS-485-2w
-
RS-485-4w
LED Indicators
-
System
- Power x 1
Storage x 1
Power failure detection x 2
Programmable x 8
-
Serial
-
LAN
- 2 per port (10/100/1000/2500 Mbps)
Power Parameters
-
Input Voltage
- DA-PWR-200-HV: 100 to 240 VAC/VDC
DA-PWR-200-WV: 24 to 110 VDC
-
Operating Voltage
- DA-PWR-200-HV: 90 to 264 VAC/VDC
DA-PWR-200-WV: 21.6 to 121 VDC
-
Power Button
- Reset button (front panel)
ON/OFF (rear panel)
Physical Characteristics
-
Housing
-
IP Rating
-
Dimensions (without ears)
- 440 x 330 x 88 mm (17.32 x 12.99 x 3.46 in)
-
Weight
-
Installation
Environmental Limits
-
Operating Temperature
- -25 to 55°C (-13 to 131°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
- EN 61000-6-2/-6-4
EN 55032/35
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8: 20 A/m
IEC 61000-4-11
-
Protection Relay
-
International Approval
-
Power Substation
-
Railway
-
Safety
MTBF
-
Time
-
Standards
- Telcordia SR-332 Standard Issue 4
