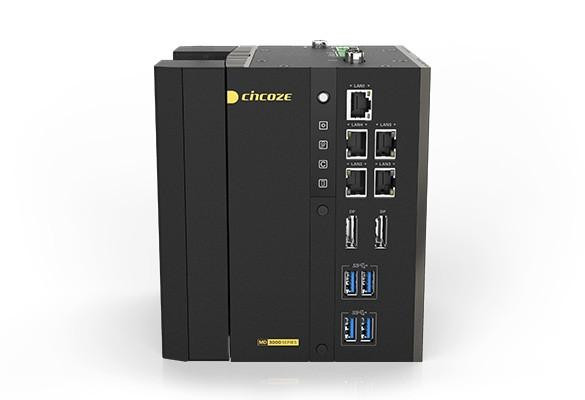

| System |
Processor |
• 14th Generation Intel® Raptor Lake-S Refresh Series CPU:
- Intel® Core™ i9-14900 24 Cores Up to 5.8 GHz, TDP 65W
- Intel® Core™ i7-14700 20 Cores Up to 5.4 GHz, TDP 65W
- Intel® Core™ i5-14500 14 Cores Up to 5.0 GHz, TDP 65W
- Intel® Core™ i5-14400 10 Cores Up to 4.7 GHz, TDP 65W
- Intel® Core™ i3-14100 4 Cores Up to 4.7 GHz, TDP 60W
- Intel® Core™ i9-14901E 8 Cores Up to 5.6 GHz, TDP 65W
- Intel® Core™ i7-14701E 8 Cores Up to 5.4 GHz, TDP 65W
- Intel® Core™ i5-14501E 6 Cores Up to 5.2 GHz, TDP 65W
- Intel® Core™ i5-14401E 6 Cores Up to 4.7 GHz, TDP 65W
- Intel® Core™ i9-14900T 24 Cores Up to 5.5 GHz, TDP 35W
- Intel® Core™ i7-14700T 20 Cores Up to 5.2 GHz, TDP 35W
- Intel® Core™ i5-14500T 14 Cores Up to 4.8 GHz, TDP 35W
- Intel® Core™ i5-14400T 10 Cores Up to 4.5 GHz, TDP 35W
- Intel® Core™ i3-14100T 4 Cores Up to 4.4 GHz, TDP 35W
- Intel® Core™ i9-14901TE 8 Cores Up to 5.5 GHz, TDP 45W
- Intel® Core™ i7-14701TE 8 Cores Up to 5.2 GHz, TDP 45W
- Intel® Core™ i5-14501TE 6 Cores Up to 5.1 GHz, TDP 45W
- Intel® Core™ i5-14401TE 6 Cores Up to 4.5 GHz, TDP 45W
- Intel® Processor 300 2 Cores Up to 3.9 GHz, TDP 46W
- Intel® Processor 300T 2 Cores Up to 3.4 GHz, TDP 35W
• 13th Generation Intel® Raptor Lake-S Series CPU:
- Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
- Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
- Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
- Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W
- Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 65W
- Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
- Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
- Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
- Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W
• 12th Generation Intel® Alder Lake-S Series CPU:
- Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
- Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
- Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
- Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
- Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
- Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
- Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
- Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
- Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
- Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
- Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
- Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
|
| Chipset |
• Intel R680E Chipset |
| Memory |
• 2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 96GB
- Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory.
- Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz. |
| BIOS |
• AMI BIOS |
| Graphics |
Graphics Engine |
• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®/Intel® Processor |
| Maximum Display Output |
• Supports Dual Independent Display |
| Display Port |
• 2x DisplayPort Connector: 4096 x 2304 @ 60Hz
* Verified maximum DP resolution: 3840x2160 @ 60Hz |
| I/O |
LAN |
• 5x GbE LAN, RJ45
- GbE1: Intel® I219
- GbE2~5: Intel® I210 |
| COM |
• 1x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB |
• 4x USB 3.2 Gen1x1 (5Gbps), Type A |
| Storage / Expansion |
M.2 Key M Socket |
• 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4), Support Storage / Add-on Card Expansion
• 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA 3.0), Support Storage / Add-on Card Expansion |
| Expansion Deck |
• 1x PCIex16 interface for Optional Scalable Expansion Deck |
| Other Function |
RAID |
• Supports RAID 0/1/5/10 |
| External FAN Connector |
• 1x External FAN Connector (Support Smart Fan by BIOS) |
| Clear CMOS Switch |
• 1x Clear CMOS Switch |
| Reset Button |
• 1x Reset Button |
| Watchdog Timer |
• Software Programmable, Supports 256 Levels System Reset |
| Status LED Indicator |
• Power LED
• Storage LED
• Thermal LED
• GPIO LED |
| Power |
Power Button |
• 1x ATX Power On/Off Button |
| Power Mode Switch |
• 1x AT/ATX Mode Switch |
| Power Input |
• 9 - 48VDC, 3-pin Terminal Block |
| Remote Power On/Off |
• 1x Remote Power On/Off, 2-pin Terminal Block |
| Remote Power LED |
• 1x Remote Power LED, 2-pin Terminal Block |
| Max Power Consumption |
• 35W CPU: 195.2W
• 65W CPU: 279.4W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in testing |
| Inrush Current (Peak) |
• 35W CPU: 9.0A@24V
• 65W CPU: 9.026A@24V |
| Physical |
Dimension ( W x D x H ) |
• 135.5 x 132 x 152.2 mm |
| Weight Information |
• 3.03 kg |
| Mechanical Construction |
• Extruded Aluminum with Heavy Duty Metal |
| Mounting |
• Wall / DIN-RAIL Mount |
| Physical Design |
• Cableless Design
• Jumper-less Design |
| Reliability & Protection |
Reverse Power Input Protection |
• Yes |
| Over Voltage Protection |
• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover |
| Over Current Protection |
• 15A |
| CMOS Battery Backup |
• SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| MTBF |
• 356,683 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
| Operating System |
Windows |
• Windows®11, Windows®10 |
| Linux |
• Ubuntu 22.04 |
| Environment |
Operating Temperature |
• 35W TDP Processor: -40°C to 65°C (-40℉ to 149℉)
• 45W TDP Processor: -40°C to 55°C (-40℉ to 131℉)
• 65W TDP Processor: -40°C to 45°C (-40℉ to 113℉)
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With external fan, extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature |
• -40°C to 85°C (-40℉ to 185℉) |
| Relative Humidity |
• 95%@65℃ |
| Shock |
• Operating, 30 Grms, Half-sine 11 ms Duration
(w/ External Fan & SSD, according to IEC60068-2-27) |
| Vibration |
• Random Vibration: Operating, 3 Grms, 5-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-64)
• Sinusoidal Vibration: Operating, 1 Grms, 10-500 Hz, 3 Axes
(w/ External Fan & SSD, according to IEC60068-2-6) |
| EMC |
• CE, UKCA, FCC, ICES-003 Class A |
| EMI |
• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
| EMS |
• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz |
| Industrial Environment |
• EMC
- EN/BS/IEC 61000-6-4: 2019 Class A
- EN/BS/IEC 61000-6-2: 2019 |
| Safety |
• UL, cUL, CB, IEC, EN 62368-1 |
