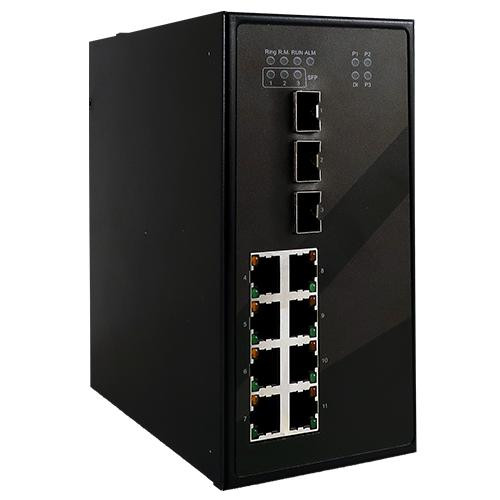

ATOP EH9711-3SFP-DC Managed Switch

Interface

RJ-45 Ports

8 x 10/100BASE-T(X)

Fiber Optics Ports

3 x 100/1000FX SFP Slot

Console Port

1 x RS-232 (RJ-45 connector)

LED Indicators

1 x P1 & P2 & P3 (P3 for HV Model) 1 x Alarm
1 x Firmware Running
1 x Ring Master
1 x Ring
1 x SFP1 & SFP2 & SFP3
1 x Digital Input
1 x LAN Ports

Relay Output

1 x Relay Output (24V/1A) with current carrying capacity of 1A @ 24 VDC

DIP Switch

4 x for Ring Control

Button

1 x Factory Reset

Capacity

Switching Capacity

7.6 Gbps

Switching Fabric

5.7 Mpps

Packet Buffer Size

1.75 Mb

MAC Table Size

Jumbo Frame

9216B

Networking Standards

IP Version

IPv4, IPv6

Ethernet Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control, back pressure flow control
IEEE 802.1d-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1x for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1ad QinQ
IEEE 802.1AB LLDP

Redundancy

ITU-T G.8032 ERPS Ring
IEEE 802.1d-2004 for STP
IEEE 802.1w for RSTP
IEEE 802.1s for MSTP

VLAN

Max. Number of VLAN

4KB

VLAN ID

1 to 4094

VLAN Type

Management VLAN
Port-Based VLAN
802.1q Tag-Based VLAN
MAC-Based VLAN (up to 512 VLANs) Protocol-Based VLAN

GVRP
(GARP VLAN Registration Protocol)

Security

Port Security

AAA

RADIUS, TACACS+

Port Authentication

802.1x EAP, MAC-Based

IP Source Guard

ARP Spoof Prevention

Dynamic ARP Inspection

DHCP Snooping

Access Control List

MAC, IPv4, IPv6

Storm Control

Unicast, Multicast, Broadcast

UDLD Loop Protection

QoS

Number of Priority Queues

Queue Selection

Strict Priority (SP), Weighted Round Robin (WRR)

CoS (Class of Service)

802.1p CoS, DSCP

Rate Limit & Shaping

Multicast

IGMP Snooping

v1/v2/v3

MLD Snooping

Max. Number of Static IGMP Groups

128

Link Aggregation

Max. Number of Trunk Groups

Time Synchronization

Network Time Sync.

NTP Server/Client, SNTP

Precision Network Time Sync.

IEEE1588 PTP v1/v2 (hardware-based)

IEEE1588 Hardware-based peer-to-peer / end-to-end transparent clock

SyncE

Management

Web Interface

HTTP, HTTPS

Command Line Interface

Telnet, SSHv2

User Authentication

Local Database, RADIUS, TACACS+

Automation Profiles

RADIUS, TACACS+

Port Authentication

Modbus/TCP status registers

SNMP

SNMPv1/v2c/v3, SNMP Inform

SNMP MIB

IF-MIB, SNMPv2-MIB, BRIDGE-MIB, LLDP Standard MIB, 802.1q Bridge-MIB, 802.1x
PAE MIB, 802.1 MSTP MIB, 802.3ad LACP MIB, RMON MIB Group 1,2,3,9, TIA 1057
LLDP-MED, RFC 1157, RFC 1213 MIB II, RFC 1213, RFC 1215, RFC 1493, RFC 1643,
RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2613, RFC
2674, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414,
RFC 3415, RFC 3635, RFC 3636, RFC 4133, RFC 4188, RFC 4292, RFC 4293, RFC
4668, RFC 4670, RFC 4878, RFC 5519

RMON Group

1, 2, 3, 9

LLDP

Alarm

Relay, E-mail (SMTP), LED

Syslog

DHCP Support

DHCP Server, DHCP Client, DHCP Relay

DHCP Option

66, 67, 82

BootP

Backup/Restore

HTTP, TFTP

NMU Managed

Diagnostics Utilities

Port Mirror, Ping, Ping6, IPv4/v6 TraceRoute, Cable Diagnostics

Physical

Housing

IP30 SPCC, Black

Dimension (W x H x D)

77 x 163 x 138 mm

Weight

1,500g (3.31lb)

Installation

DIN-Rail mount / Wall mount (optional kit)

Operating Temperature

-40°C to +75°C (-40°F to +167°F)

Storage Temperature

-40°C to +85°C (-40°F to +185°F)

Ambient Relative Humidity

5% to 95% (Non-condensing test @ 55°C)

Rated Supply Voltage

24-48 VDC
110-240 VAC for AC series
110-300 VDC for HV Series

Input Voltage

18-52 VDC
85-264 VAC for AC series
88-330 VDC for HV Series

Power Consumption

13.25W@48VDC (with input current 0.276A)
10.48W@264VAC for AC series (with input current 0.105A)
11.40W@300VDC for HV series (with input 0.038A)

Connector

1 x 5-Pin 5.08mm Lockable Terminal Block for DC/HV Series
1 x 4-Pin 5.08mm Lockable Terminal Block for DC/HV Series
1 x 3-Pin 5.08mm Lockable Terminal Block for HV Series

Reverse Polarity Protection

Description
Customer Reviews

Description

9-port Managed IEC61850-3 switch with 3x 100/1000 SFP ports, 24~48VDC

Interface
RJ-45 Ports	8 x 10/100BASE-T(X)
Fiber Optics Ports	3 x 100/1000FX SFP Slot
Console Port	1 x RS-232 (RJ-45 connector)
LED Indicators	1 x P1 & P2 & P3 (P3 for HV Model) 1 x Alarm 1 x Firmware Running 1 x Ring Master 1 x Ring 1 x SFP1 & SFP2 & SFP3 1 x Digital Input 1 x LAN Ports
Relay Output	1 x Relay Output (24V/1A) with current carrying capacity of 1A @ 24 VDC
DIP Switch	4 x for Ring Control
Button	1 x Factory Reset

Capacity
Switching Capacity	7.6 Gbps
Switching Fabric	5.7 Mpps
Packet Buffer Size	1.75 Mb
MAC Table Size	4K
Jumbo Frame	9216B

Networking Standards
IP Version	IPv4, IPv6
Ethernet Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1d-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1x for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.1ad QinQ IEEE 802.1AB LLDP
Redundancy	ITU-T G.8032 ERPS Ring IEEE 802.1d-2004 for STP IEEE 802.1w for RSTP IEEE 802.1s for MSTP

VLAN
Max. Number of VLAN	4KB
VLAN ID	1 to 4094
VLAN Type	Management VLAN Port-Based VLAN 802.1q Tag-Based VLAN MAC-Based VLAN (up to 512 VLANs) Protocol-Based VLAN
GVRP (GARP VLAN Registration Protocol)	Y

Security
Port Security	Y
AAA	RADIUS, TACACS+
Port Authentication	802.1x EAP, MAC-Based
IP Source Guard	Y
ARP Spoof Prevention	Y
Dynamic ARP Inspection	Y
DHCP Snooping	Y
Access Control List	MAC, IPv4, IPv6
Storm Control	Unicast, Multicast, Broadcast
UDLD Loop Protection	Y

QoS
Number of Priority Queues	8
Queue Selection	Strict Priority (SP), Weighted Round Robin (WRR)
CoS (Class of Service)	802.1p CoS, DSCP
Rate Limit & Shaping	Y

Multicast
IGMP Snooping	v1/v2/v3
MLD Snooping	v1
Max. Number of Static IGMP Groups	128

Link Aggregation
Max. Number of Trunk Groups	4

Time Synchronization
Network Time Sync.	NTP Server/Client, SNTP
Precision Network Time Sync.	IEEE1588 PTP v1/v2 (hardware-based) IEEE1588 Hardware-based peer-to-peer / end-to-end transparent clock
SyncE	Y

Management
Web Interface	HTTP, HTTPS
Command Line Interface	Telnet, SSHv2
User Authentication	Local Database, RADIUS, TACACS+
Automation Profiles	RADIUS, TACACS+
Port Authentication	Modbus/TCP status registers
SNMP	SNMPv1/v2c/v3, SNMP Inform
SNMP MIB	IF-MIB, SNMPv2-MIB, BRIDGE-MIB, LLDP Standard MIB, 802.1q Bridge-MIB, 802.1x PAE MIB, 802.1 MSTP MIB, 802.3ad LACP MIB, RMON MIB Group 1,2,3,9, TIA 1057 LLDP-MED, RFC 1157, RFC 1213 MIB II, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2613, RFC 2674, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3635, RFC 3636, RFC 4133, RFC 4188, RFC 4292, RFC 4293, RFC 4668, RFC 4670, RFC 4878, RFC 5519
RMON Group	1, 2, 3, 9
LLDP	Y
Alarm	Relay, E-mail (SMTP), LED
Syslog	Y
DHCP Support	DHCP Server, DHCP Client, DHCP Relay
DHCP Option	66, 67, 82
BootP	Y
Backup/Restore	HTTP, TFTP
NMU Managed	Y
Diagnostics Utilities	Port Mirror, Ping, Ping6, IPv4/v6 TraceRoute, Cable Diagnostics

Physical
Housing	IP30 SPCC, Black
Dimension (W x H x D)	77 x 163 x 138 mm
Weight	1,500g (3.31lb)
Installation	DIN-Rail mount / Wall mount (optional kit)
Operating Temperature	-40°C to +75°C (-40°F to +167°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Ambient Relative Humidity	5% to 95% (Non-condensing test @ 55°C)
Rated Supply Voltage	24-48 VDC 110-240 VAC for AC series 110-300 VDC for HV Series
Input Voltage	18-52 VDC 85-264 VAC for AC series 88-330 VDC for HV Series
Power Consumption	13.25W@48VDC (with input current 0.276A) 10.48W@264VAC for AC series (with input current 0.105A) 11.40W@300VDC for HV series (with input 0.038A)
Connector	1 x 5-Pin 5.08mm Lockable Terminal Block for DC/HV Series 1 x 4-Pin 5.08mm Lockable Terminal Block for DC/HV Series 1 x 3-Pin 5.08mm Lockable Terminal Block for HV Series
Reverse Polarity Protection	Y
