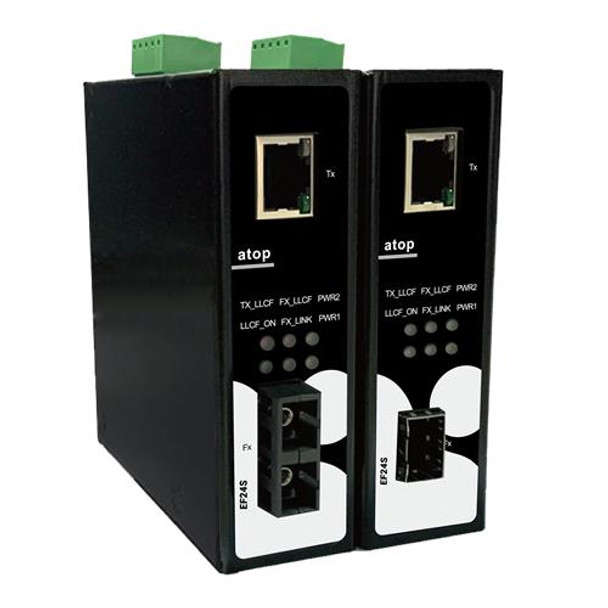

Industrial Gigabit Ethernet-to-Fiber Media Converter, single-mode, SC connector, LFP, Auto Speed, 10km
| Technology |
|
| Standards |
IEEE 802.3 for 10BASE T
IEEE 802.3u for 100BASE-T(X)
IEEE 802.3ab for 1000BASE-T(X)
IEEE 802.3z for 1000BASE-X |
| Interface |
|
| RJ45 ports |
10/100/1000Base-T(X) auto negotiation speed |
| Fiber Ports |
1000BASE-(F)X or SFP Slot |
| LED Indicators |
PWR1, PWR2, F_Mode, Fx_Link, LLCF_ON, Tx_LLCF, Fx_LLCF |
| DIP Switch |
Link Transparency, Jumbo Frame, Flow Control |
| Power Management |
Value |
| Input Voltage |
9~48 VDC |
| Input Current |
0.3A max, 9VDC |
| Connector |
Removable 5-pin Terminal Block |
| Reverse Polarity Protection |
Yes |
| Physical Characteristics |
Value |
| Housing |
Metal, IP30 protection |
| Dimensions(W x H x D mm) |
32 x 101 x 101 (1.26 x 3.98 x 3.98 in) |
| Weight |
EF24S-1G-1Fm-SC-550M / EF24S-1G-1Fs-SC-10 : 362g
EF24S-1G-1SFP : 357g |
| Installation |
DIN-Rail, Wall-Mount (optional kit) |
| Environmental Limits |
|
| Operating Temperature |
-40°C to 70°C only |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Ambient Relative Humidity |
5 to 95%, 55°C (non-condensing) |
| Optical Fiber Specification |
|
|
| Mode |
Multi-mode |
Single-mode |
| Distance |
550M |
10KM |
| Bit Rate |
1250Mbps |
1250Mbps |
| Wavelength (nm) |
1310 |
1310 |
| Application |
1000Base-SX |
1000Base-LX |
| TX Power (dBm) |
-11 to -3 |
-10 to -3 |
| RX Sensitivity (dBm) |
≤-22dBm |
≤-22dBm |
| Remark |
EF24S-1G-1Fm-SC-550M |
EF24S-1G-1Fs-SC-10 |
