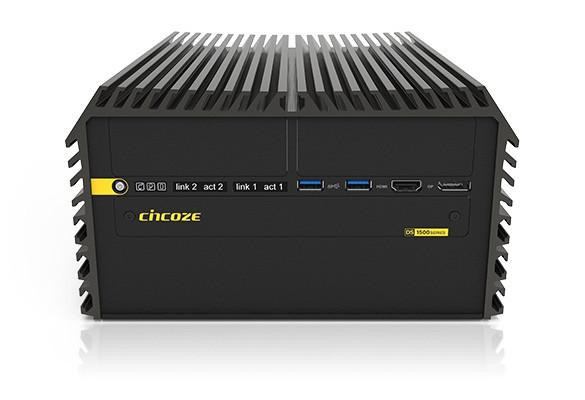

| System |
Processor |
• Arrow Lake-S Ultra 200S Series CPU:
- Intel® Core™ Ultra 9 285 24 Cores Up to 5.6 GHz, TDP 65W
- Intel® Core™ Ultra 9 285T 24 Cores Up to 5.4 GHz, TDP 35W
- Intel® Core™ Ultra 7 265 20 Cores Up to 5.3 GHz, TDP 65W
- Intel® Core™ Ultra 7 265T 20 Cores Up to 5.3 GHz, TDP 35W
- Intel® Core™ Ultra 5 245 14 Cores Up to 5.1 GHz, TDP 65W
- Intel® Core™ Ultra 5 245T 14 Cores Up to 5.1 GHz, TDP 35W
- Intel® Core™ Ultra 5 225 10 Cores Up to 4.9 GHz, TDP 65W
- Intel® Core™ Ultra 5 225T 10 Cores Up to 4.9 GHz, TDP 35W
|
| Chipset |
• Intel W880 Chipset |
| Memory |
• 2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type
- Ultra 9 / 7: Supports Up to 6400MHz, 96GB
- Ultra 5: Supports Up to 5600MHz, 96GB |
| BIOS |
• AMI BIOS |
| Graphics |
Graphics Engine |
• Integrated Intel® Xe LPG Graphics |
| Maximum Display Output |
• Supports Quad Independent Display |
| VGA |
• 1x VGA Connector : 1920 x 1200@60Hz |
| DP |
• 2x DP Connector : 4096 x 2304@60Hz
- Support cable switch HDMI 4096 x 2160@30Hz
* Verified maximum resolution: 3840 x 2160@60Hz |
| HDMI |
• 1x HDMI Connector : 4096 x 2160@30Hz
* Verified maximum resolution: 3840 x 2160@30Hz |
| Audio |
Audio Codec |
• Realtek® ALC888, High Definition Audio |
| Line-out |
• 1 x Line-out, Phone Jack 3.5mm |
| Mic-in |
• 1 x Mic-in, Phone Jack 3.5mm |
| I/O |
LAN |
• 1x 2.5 GbE LAN, RJ45
- GbE1: Intel® I225
• 1x GbE LAN, RJ45
- GbE2: Intel® I219 |
| COM |
• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB |
• 2x 10Gbps USB 3.2 Gen2x1, Type A
• 4x 5Gbps USB 3.2 Gen1x1, Type A
• 2x 480Mbps USB 2.0, Type A |
| PS/2 |
• 1 x PS/2, 6 Pin Mini-DIN Female Connector |
| Storage / Expansion |
2.5" SSD / HDD |
• 1x 2.5" Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
• 1x 2.5" Internal SATA HDD/SSD Bay ( SATA 3.0 ) |
| M.2 Key B Socket |
• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion
• 2x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / SATA), Support GNSS / Storage / Add-on Card Expansion |
| M.2 Key M Socket |
• 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA), Support Storage / Add-on Card Expansion |
| PCI Express |
|
• 1 x PCI/PCIe Expansion Slot with Optional Riser Card
* Supports maximum dimensions of add-on card (L x H)：235 x 124 mm
* Supports GPU card up to 75W |
• 2 x PCI/PCIe Expansion Slot with Optional Riser Card
* Supports maximum dimensions of add-on card (L x H)：235 x 124 mm
* Supports GPU card up to 130W |
| SIM |
• 2x SIM Socket |
| CMI (Combined Multiple I/O) Socket |
• 2x High Speed CMI Interface for optional CMI Module Expansion
• 2x Low Speed CMI Interface for optional CMI Module Expansion |
| CFM (Control Function Module) Socket |
• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
• 1x CFM-TPM Interface for optional CFM-TPM Module Expansion |
| Other Function |
RAID |
• Support RAID 0/1/5/10 |
| External FAN Connector |
• 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing |
• Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) |
| TPM |
• Support Discrete TPM2.0 (with Optional CFM Module) |
| Clear CMOS Switch |
• 1x Clear CMOS Switch |
| Reset Button |
• 1x Reset Button |
| Instant Reboot |
• Support 0.2sec Instant Reboot Technology |
| Watchdog Timer |
• Software Programmable Supports 256 Levels System Reset |
| Antenna Holes |
• 2 |
| Power |
Power Button |
• 1 x ATX Power On/Off Button |
| Power Mode Switch |
• 1 x AT/ATX Mode Switch |
| Power Input |
• 9 - 48VDC, 3-pin Terminal Block |
| Remote Power On/Off |
• 1 x Remote Power On/Off, 2-pin Terminal Block |
| Remote Power LED |
• 1 x Remote Power LED, 2-pin Terminal Block |
| Max. Power Consumption |
• 35W CPU: 163W
• 65W CPU: 262.8W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in testing |
| Inrush Current (Peak) |
• 35W CPU: 5.812 A@24V
• 65W CPU: 5.983 A@24V |
| Physical |
Dimension ( W x D x H ) |
• 227x261x88 mm |
• 227x261x108 mm |
• 227x261x128 mm |
| Weight Information |
• 4.9 KG |
• 5.3 KG |
• 5.7 KG |
| Mechanical Construction |
• Extruded Aluminum with Heavy Duty Metal |
| Mounting |
• Wall Mount |
| Physical Design |
• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design |
| Reliability & Protection |
Reverse Power Input Protection |
• Yes |
| Over Voltage Protection |
• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover |
| Over Current Protection |
• 15A |
| CMOS Battery Backup |
• SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| MTBF |
• 307,224 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
| Operating System |
Windows |
• Windows®11, Windows®10 |
| Linux |
• Ubuntu 24.04 |
| Environment |
Operating Temperature |
• 35W TDP Processor: -40°C to 60°C (-40℉ to 140℉)
• 65W TDP Processor: -40°C to 50°C (-40℉ to 122℉) With External Fan Kit
- With extended temperature peripherals; Ambient with air flow
- According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature |
• -40°C to 85°C (-40℉ to 185℉) |
| Relative Humidity |
• 95%@60°C (non-Condensing) |
| Shock |
• MIL-STD-810H |
| Vibration |
• MIL-STD-810H |
| EMC |
• CE, UKCA, FCC, ICES-003 Class A |
| EMI |
• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
| EMS |
• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz |
| Railway |
• EMC:
EN 50155: 2021 Clause 4.4.6, 13.4.9
- EN 50121-1 : 2017
- EN 50121-3-2: 2016 + A1: 2019 |
| Fire Protection |
• EN 45545-2 |
| Safety |
• UL, cUL, CB, IEC, EN 62368-1 |
