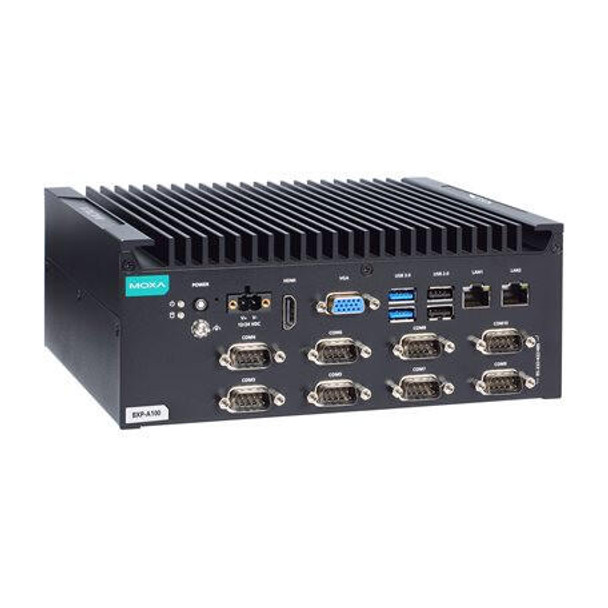

Box computer with Intel Atom® x6211E processor, 2 LAN ports, 10 serial ports, 4 DIs, 4 DOs, 2 USB 3.0 ports, 4 USB 2.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, -30 to 60°C operating temperature
Computer
-
CPU
- BXP-A100-E2 Models: Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)
BXP-A100-E4 Models: Intel Atom® x6425E processor (Quad core, 1.5M cache, 2.00 GHz)
-
System Memory Slot
- SODIMM DDR4 slots x 1, up to 32 GB max.
-
System Memory Pre-installed
-
Storage Slot
- CFast slot x 1 (SATAIII interface)
SD slots x 1, SD 3.0 interface (SDHC/SDXC)
-
Storage Pre-installed
- BXP-A100-E2-T-Win10/BXP-A100-E4-T-Win10: 64 GB CFast card
-
Supported OS
- Windows Images and Drivers Supported:
- Windows 10 IoT Enterprise LTSC 2021 64-bit
- Windows 11 Professional 64-bit
Linux Drivers Supported:
- Debian 11 (kernel 5.10)
- Ubuntu 22.04 LTS (kernel 5.15)
- RHEL 9 (kernel 5.14)
-
Graphics Controller
Computer Interface
-
Ethernet Ports
- BXP-A100-E2-8L-T/E4-8L-T:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10
BXP-A100-E2-2L3C-T/E4-2L3C-T:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
All Other Models:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
-
Serial Ports
- BXP-A100-E2-8C-T/E4-8C-T:
RS-232/422/485 ports x 10, software selectable (DB9 male) x 10
BXP-A100-E2-2L3C-T/E4-2L3C-T:
RS-232/422/485 ports x 5, software selectable (DB9 male) x 5
All Other Models:
RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
-
USB 3.0
- USB 3.0 hosts x 2, type-A connectors
-
USB 2.0
- USB 2.0 hosts x 4, type-A connectors
-
Digital Input
-
Digital Output
-
TPM
-
Video Output
- HDMI 2.0b x 1, (type-A connector)
VGA x 1, 15-pin D-sub connector (female)
-
Buttons
Ethernet Interface
-
Magnetic Isolation Protection
Serial Interface
-
Baudrate
-
Connector
-
Data Bits
-
Parity
- None, Even, Odd, Space, Mark
-
Stop Bits
-
Flow Control
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
-
RS-485-2w
-
RS-485-4w
Digital Inputs
-
Connector
- Spring-type Euroblock terminal
-
Sensor Type
-
Dry Contact
- Logic 0: Short to GND
Logic 1: Open
Digital Outputs
-
Connector
- Spring-type Euroblock terminal
-
I/O Type
-
Current Rating
-
Voltage
LED Indicators
-
System
-
LAN
- 2 per port (10/100/1000 Mbps)
Power Parameters
-
Input Voltage
-
Power Connector
- Screw-fastened Euroblock terminal
-
Power Consumption
Physical Characteristics
-
Housing
-
IP Rating
-
Dimensions
- BXP-A100-E2-T/E4-T/E2-T-Win10/E4-T-Win10:
210 x 166 x 48 mm (8.27 x 6.54 x 1.9 in)
BXP-A100-E2-8L-T/E4-8L-T/E2-2L3C-T/E4-2L3C-T:
210 x 166 x 65.5 mm (8.27 x 6.54 x 2.58 in)
BXP-A100-E2-8C-T/E4-8C-T:
210 x 166 x 83 mm (8.27 x 6.54 x 3.27 in)
-
Weight
- BXP-A100-E2-T/E4-T/E2-T-Win10/E4-T-Win10:
2,015 g (4.44 Ib)
BXP-A100-E2-8L-T/E4-8L-T:
2,355 g (5.19 Ib)
BXP-A100-E2-2L3C-T/E4-2L3C-T:
2,208 g (4.86 Ib)
BXP-A100-E2-8C-T/E4-8C-T:
2,385 g (5.25 Ib)
-
Installation
- Wall mounting (with optional kit)
Environmental Limits
-
Operating Temperature
- -30 to 60°C (-22 to 140°F)
-
Storage Temperature
- -40 to 75°C (-40 to 167°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
BSMI
-
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
-
Safety
-
Shock
-
Vibration
-
Package Drop Test
-
Package Vibration Test
Reliability
-
Time Source
- Built-in RTC (real-time clock) with lithium-battery backup
-
Automatic Reboot Trigger
