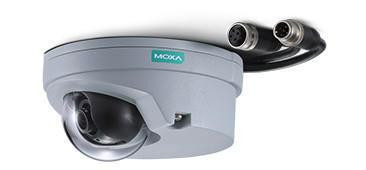

EN 50155, 1080P image, compact IP camera with M12 connector, 1 microphone, PoE, 2.8 mm lens, -25 to 55°C operating temperature, conformal coating
Input/Output Interface
-
Digital Input Channels
-
Digital Inputs
- +13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA
Ethernet Software Features
-
Protocols
- TCP/IP
IPv4/IPv6
UDP
HTTP
RTP/RTSP
ARP
UPnP
FTP
TFTP
NTP Client
DNS
QoS
IGMP v3
ICMP
SNMPv1/v2c/v3
DHCP Opt66/67
HTTPS
SIP
Security Functions
-
Password
- User-level password protection
-
Filter
-
Encryption
Camera Characteristics
-
Sensor
- 1/3-in 1080P progressive scan CMOS
-
Minimum Illumination
- Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
-
Synchronization
-
White Balance
-
Electronic Shutter
- Auto, Fixed (1/30 to 1/25000 sec)
-
S/N Ratio
- Maximum 50 dB (AGC off; DNR on)
-
DNR (digital noise reduction)
-
WDR (wide dynamic range)
-
AGC (auto gain control)
-
Flickerless Control
- Automatic, 50 Hz, 60 Hz modes
-
Image Rotation
- Flip, Mirror, 90°, 180°, 270° rotation
-
Image Setting
- Manual tuning with saturation, sharpness, and contrast
-
Camera Angle
- Pan: ±15°, Tilt: 0° to 90° (controlled manually)
Video Interface
-
Video Compression
- H.264 (ISO/IEC 14496-10) or MJPEG
-
Video Output
-
Video Streams
- 4 independent H.264 or MJPEG video streams
-
Video Resolution and FPS (frames per second)
-
Video Viewing
- DynaStream™ support for changing the video frame rate automatically
CBR Pro™ for good image quality in limited bandwidth transmissions
3 privacy mask areas provided
Adjustable image size and quality
Timestamp and text overlay
OSD (On Screen Display) position adjustable
Maximum of 10 simultaneous unicast connections, 50 multicast clients
Camera Software Development
Camera Alarm Software Features
-
Intelligent Video
- Camera tampering detection
-
Video Motion Detection
- 3 independently configurable areas
-
Scheduling
- Daily repeat timing schedule
-
Imaging
- JPEG snapshots for pre/trigger/post alarm images
-
Custom Alarms
- HTTP event servers for setting customized alarm actions
-
FTP Messaging
- Automatic transfer of stored images via FTP as event-triggered actions
-
Pre-Alarm Buffer
- 50 MB video buffer for JPEG snapshot images
-
Video Recording
- Event recordings stored on the SD card
Software Requirements
-
Memory Size
-
Operating System
-
Browser
- Internet Explorer 9.x or above
-
Multimedia
Physical Characteristics
-
Housing
- IP66 rain and dust protection
Metal housing, PC dome cover
IK8 vandal resistant protection
-
Dimensions
- 110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in)
-
Weight
-
Installation
-
Protection
- PCB conformal coating is optional and provided on request. If conformal coating is required, please contact Moxa.
Environmental Limits
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
-
Ingress Protection
-
Vandal Resistance
-
Altitude
- 2000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
-
Freefall
-
Railway Fire Protection
-
Safety
-
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
-
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
-
Railway
- EN 50155 (complies with a portion of EN 50155 specifications)
