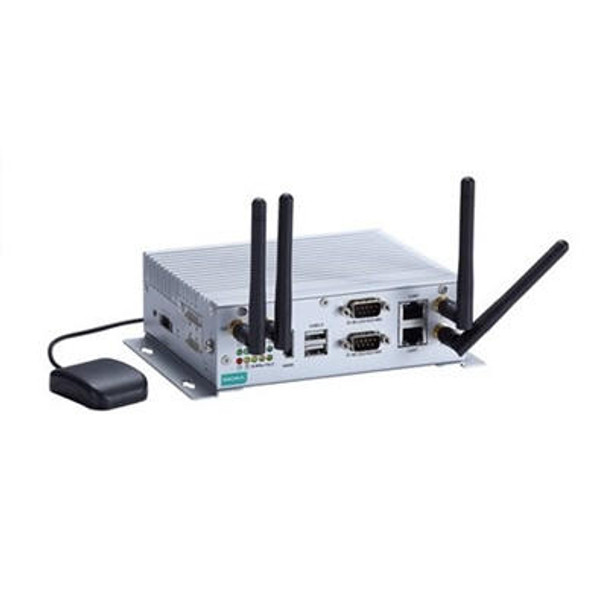

x86 embedded computer with Intel Atom® E3845, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD slot, 1 USIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, 5 wireless SMA connectors, 4GB RAM, 16GB SD Card, 32GB mSATA and Linux Debian 8 pre-installed, -40 to 70°C operating temperature with Moxa recommended wireless modules* (3G/LTE + Wi-Fi) *wireless modules must be purchased separately
Computer
-
CPU
- Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
-
System Memory Pre-installed
-
System Memory Slot
- SODIMM DDR3/DDR3L slot x 1
-
Supported OS
- Linux Debian 8 (Linux kernel v4.1)
-
Storage Slot
- mSATA slots x 1
SD 3.0 (SDHC/SDXC) socket x 1
Computer Interface
-
Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
-
Serial Ports
- RS-232/422/485 ports x 2, software selectable (DB9 male)
-
USB 2.0
- USB 2.0 hosts x 2, type-A connectors
-
USB 3.0
- USB 3.0 hosts x 1, type-A connectors
-
Digital Input
-
Digital Output
-
Expansion Slots
-
Video Output
- HDMI x 1, HDMI connector (type A)
-
Wi-Fi Antenna Connector
-
Cellular Antenna Connector
-
Number of SIMs
-
SIM Format
-
GPS Antenna Connector
Digital Inputs
-
Isolation
-
Connector
- Screw-fastened Euroblock terminal
-
Dry Contact
- On: short to GND
Off: open
-
I/O Mode
-
Sensor Type
- Dry contact
Wet contact (NPN or PNP)
-
Wet Contact (DI to COM)
- On: 10 to 30 VDC
Off: 0 to 3 VDC
Digital Outputs
-
Connector
- Screw-fastened Euroblock terminal
-
Current Rating
-
I/O Type
-
Voltage
LED Indicators
-
System
- SD slots x 1
Power x 1
Storage x 1
Programmable x 1
-
Wireless Signal Strength
-
LAN
- 1 per port (10/100/1000 Mbps)
-
Serial
Serial Interface
-
Baudrate
-
Flow Control
- RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
-
Isolation
-
Parity
- None, Even, Odd, Space, Mark
-
Stop Bits
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
-
RS-485-2w
-
RS-485-4w
Power Parameters
-
Input Voltage
-
Power Connector
- Terminal block (for DC models)
-
Power Consumption (Max.)
-
Power Consumption
Physical Characteristics
-
Housing
-
IP Rating
-
Dimensions (with ears)
- 178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)
-
Dimensions (without ears)
- 150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in)
-
Weight
-
Installation
- DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
-
Operating Temperature
- -40 to 70°C (-40 to 158°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
- EN 55032/24, EN 61000-6-2/-6-4
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
-
Safety
- EN 60950-1, UL 508, UL 60950-1
-
Shock
-
Vibration
