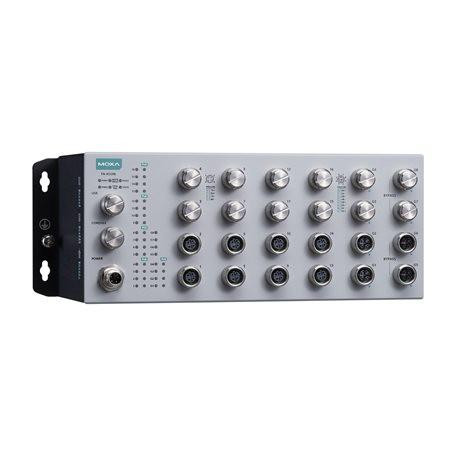

EN 50155 24-port L2 switch with 16 FE PoE ports, 4 Gigabit ports (with bypass relay), 4 Gigabit PoE ports, 150 W PoE power budget, 24 to 110 VDC power input, -40 to 70°C operating temperature, IP42 rating, conformal coating
Ethernet Interface
-
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)
-
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)
-
PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)
-
Standards
- IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1X for authentication
IEEE 802.3x for flow control
Ethernet Software Features
-
Configuration Options
- Command Line Interface (CLI) through Serial/Telnet/SSH
Web Console (HTTP/HTTPS)
MXview One
MXconfig
-
Filter
- GMRP
GVRP
GARP
802.1Q VLAN
IGMP Snooping v1/v2/v3
IGMP Querier
Static Multicast
-
Management
- IPv4/IPv6
Flow control
Back Pressure Flow Control
DHCP Server
DHCP Client
DHCP Relay Agent (Option 82)
QoS/CoS/ToS
ARP
RARP
LLDP
Port Mirroring
Linkup Delay
SMTP
SNMP Trap
SNMP Inform
SNMPv1/v2c/v3
RMON
TFTP
SFTP
HTTP
HTTPS
Telnet
Syslog
Private MIB
Loop Protection
-
MIB
- P-BRIDGE MIB
Q-BRIDGE MIB
Ethernet-like MIB
IEEE8021-SPANNING-TREE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
SNMPv2-MIB
RMON MIB Groups 1, 2, 3, 9
-
Redundancy Protocols
- STP
RSTP
MSTP
Turbo Ring v2
Link Aggregation
Ring Coupling
Static Port Trunk
LACP
MRP
-
Security
- Rate Limit
Access control list
DHCP Snooping
HTTPS/SSL
Login and password policy
MAC Security (MACsec)
Port Lock
RADIUS
SSH
Sticky MAC
TACACS+
Trust access control
-
Time Management
- SNTP Server/Client
NTP Server/Client
Switch Properties
-
MAC Table Size
-
IGMP Groups
-
Max. No. of VLANs
-
VLAN ID Range
-
Priority Queues
LED Interface
-
LED Indicators
- PWR1, PWR2, FAULT, STATE, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports
Serial Interface
-
Console Port
- M12 B-coded 5-pin female connector (RS-232)
USB Interface
-
M12 Connector
- M12 A-coded 5-pin female (for ABC-02 USB storage)
Power Parameters
-
Input Current
-
Input Voltage
- 24/36/48/72/96/110 VDC
Redundant dual inputs
No. of power inputs: 2
-
Operating Voltage
-
Power Connector
- M12 K-coded 5-pin male connector
-
Overload Current Protection
-
Reverse Polarity Protection
-
Power Consumption (Max.)
- With PoE disabled:
26.5 W @ 24 VDC
27.0 W @ 110 VDC
With PoE enabled:
50.1 W @ 24 VDC
36.8 W @ 110 VDC
-
Total PoE Power Budget
Physical Characteristics
-
Housing
-
Dimensions
- 313 x 115 x 133 mm (12.32 x 4.53 x 5.24 in)
-
IP Rating
-
Weight
-
Installation
-
Protection
Environmental Limits
-
Operating Temperature
- -40 to 70°C (-40 to 158°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
-
Altitude
Standards and Certifications
-
EMC
-
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
-
Cybersecurity
- IEC 62443-4-2 Security Level 2
-
Radio Frequency
-
Railway
- IEC 60068-2-1, EN 50155
IEC 60068-2-2, EN 50155
IEC 60068-2-30, EN 50155
IEC 60068-2-78
EN 50121-4
EN 50155
IEC 60571
-
Railway Fire Protection
-
Safety
- UL 62368-1
IEC 62368-1
EN 62368-1
BSMI
-
Salt Spray Test
-
Shock
- IEC 60068-2-27, IEC 61373, EN 50155
-
Vibration
- IEC 60068-2-64, IEC 61373, EN 50155
-
Package Vibration Test
-
Package Drop Test
