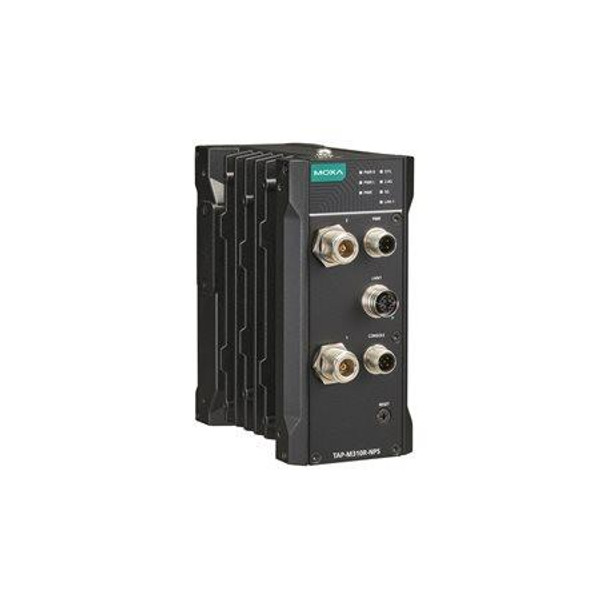

Moxa TAP-M310R-NPS-1R-US-CT-T Rail Wireless LAN

Description
Details
Warranty
Customer Reviews
Data Sheet

Description

Wi-Fi 6 railway onboard AP/client with one radio module, no power splitters, one M12 A-coded 24 VDC input, US band, -40 to 75°C operating temperature, conformal coating

WLAN Interface

WLAN Standards
- 2.4 GHz: 802.11b/g/n/ax with 1024 QAM support, 20/40 MHz
  5 GHz: 802.11a/n/ac/ax with 1024 QAM support, 20/40/80 MHz
Frequency Band for US (20 MHz operating channels)
- 2.412 to 2.462 GHz (11 channels)
  5.180 to 5.240 GHz (4 channels)
  5,745 to 5,825 GHz (5 channels)
Frequency Band for EU (20 MHz operating channels)
- 2,412 to 2,472 GHz (13 channels)
  5,180 to 5,240 GHz (4 channels)
  5,745 to 5,825 GHz (5 channels)
Wireless Security
- SSID broadcast enable/disable
  WPA2/WPA3 Personal (AES)
  WPA2/WPA3 Enterprise (IEEE 802.1X/RADIUS, AES)
Transmission Rate
- 802.11b: 1 to 11 Mbps
  802.11a/g: 6 to 54 Mbps
  802.11n: 6.5 to 300 Mbps
  802.11ac: up to 540 Mbps
  802.11ax: 5 GHz up to 1201 Mbps, 2.4 GHz up to 576 Mbps
WLAN Operation Mode
- Access point
  Master
  Sniffer
  Client
  Client-Router
  Slave
Antenna Connectors
- 2 x N-type (female)
Transmitter Power for 802.11a
- TAP-M310R-NPS-1R and -1P1R models:
  22±1.5 dBm @ 6 Mbps 20 MHz
  22±1.5 dBm @ 9 Mbps 20 MHz
  22±1.5 dBm @ 12 Mbps 20 MHz
  22±1.5 dBm @ 18 Mbps 20 MHz
  20±1.5 dBm @ 24 Mbps 20 MHz
  19.5±1.5 dBm @ 36 Mbps 20 MHz
  19±1.5 dBm @ 48 Mbps 20 MHz
  19±1.5 dBm @ 54 Mbps 20 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  18±1.5 dBm @ 6 Mbps 20 MHz
  18±1.5 dBm @ 9 Mbps 20 MHz
  18±1.5 dBm @ 12 Mbps 20 MHz
  18±1.5 dBm @ 18 Mbps 20 MHz
  17±1.5 dBm @ 24 Mbps 20 MHz
  17±1.5 dBm @ 36 Mbps 20 MHz
  16±1.5 dBm @ 48 Mbps 20 MHz
  15.5±1.5 dBm @ 54 Mbps 20 MHz
Transmitter Power for 802.11n (5 GHz)
- TAP-M310R-NPS-1R and -1P1R models:
  22±1.5 dBm @ MCS0 20 MHz
  22±1.5 dBm @ MCS1 20 MHz
  21.5±1.5 dBm @ MCS2 20 MHz
  21.5±1.5 dBm @ MCS3 20 MHz
  19.5±1.5 dBm @ MCS4 20 MHz
  19±1.5 dBm @ MCS5 20 MHz
  19±1.5 dBm @ MCS6 20 MHz
  18.5±1.5 dBm @ MCS7 20 MHz
  22±1.5 dBm @ MCS8 20 MHz
  22±1.5 dBm @ MCS9 20 MHz
  21.5±1.5 dBm @ MCS10 20 MHz
  21.5±1.5 dBm @ MCS11 20 MHz
  20.5±1.5 dBm @ MCS12 20 MHz
  19.5±1.5 dBm @ MCS13 20 MHz
  19.5±1.5 dBm @ MCS14 20 MHz
  19±1.5 dBm @ MCS15 20 MHz
  22±1.5 dBm @ MCS0 40 MHz
  22±1.5 dBm @ MCS1 40 MHz
  22±1.5 dBm @ MCS2 40 MHz
  21.5±1.5 dBm @ MCS3 40 MHz
  21±1.5 dBm @ MCS4 40 MHz
  20±1.5 dBm @ MCS5 40 MHz
  20±1.5 dBm @ MCS6 40 MHz
  19.5±1.5 dBm @ MCS7 40 MHz
  22±1.5 dBm @ MCS8 40 MHz
  22±1.5 dBm @ MCS9 40 MHz
  21.5±1.5 dBm @ MCS10 40 MHz
  21.5±1.5 dBm @ MCS11 40 MHz
  20±1.5 dBm @ MCS12 40 MHz
  20±1.5 dBm @ MCS13 40 MHz
  20±1.5 dBm @ MCS14 40 MHz
  20±1.5 dBm @ MCS15 40 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  18.5±1.5 dBm @ MCS0 20 MHz
  18.5±1.5 dBm @ MCS1 20 MHz
  18.5±1.5 dBm @ MCS2 20 MHz
  18±1.5 dBm @ MCS3 20 MHz
  17±1.5 dBm @ MCS4 20 MHz
  16.5±1.5 dBm @ MCS5 20 MHz
  16±1.5 dBm @ MCS6 20 MHz
  15.5±1.5 dBm @ MCS7 20 MHz
  18.5±1.5 dBm @ MCS8 20 MHz
  18.5±1.5 dBm @ MCS9 20 MHz
  18.5±1.5 dBm @ MCS10 20 MHz
  18±1.5 dBm @ MCS11 20 MHz
  17±1.5 dBm @ MCS12 20 MHz
  16.5±1.5 dBm @ MCS13 20 MHz
  15.5±1.5 dBm @ MCS14 20 MHz
  15.5±1.5 dBm @ MCS15 20 MHz
  18.5±1.5 dBm @ MCS0 40 MHz
  18.5±1.5 dBm @ MCS1 40 MHz
  18.5±1.5 dBm @ MCS2 40 MHz
  17.5±1.5 dBm @ MCS3 40 MHz
  17.5±1.5 dBm @ MCS4 40 MHz
  16.5±1.5 dBm @ MCS5 40 MHz
  15.5±1.5 dBm @ MCS6 40 MHz
  15±1.5 dBm @ MCS7 40 MHz
  18±1.5 dBm @ MCS8 40 MHz
  18±1.5 dBm @ MCS9 40 MHz
  17.5±1.5 dBm @ MCS10 40 MHz
  17±1.5 dBm @ MCS11 40 MHz
  17±1.5 dBm @ MCS12 40 MHz
  16.5±1.5 dBm @ MCS13 40 MHz
  15.5±1.5 dBm @ MCS14 40 MHz
  15±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11ac (5 GHz, Dual Chain)
- TAP-M310R-NPS-1R and -1P1R models:
  22±1.5 dBm @ MCS0 20 MHz
  22±1.5 dBm @ MCS1 20 MHz
  21.5±1.5 dBm @ MCS2 20 MHz
  21.5±1.5 dBm @ MCS3 20 MHz
  20.5±1.5 dBm @ MCS4 20 MHz
  20±1.5 dBm @ MCS5 20 MHz
  19.5±1.5 dBm @ MCS6 20 MHz
  19.5±1.5 dBm @ MCS7 20 MHz
  19±1.5 dBm @ MCS8 20 MHz
  21.5±1.5 dBm @ MCS0 40 MHz
  21.5±1.5 dBm @ MCS1 40 MHz
  21±1.5 dBm @ MCS2 40 MHz
  20.5±1.5 dBm @ MCS3 40 MHz
  20±1.5 dBm @ MCS4 40 MHz
  19.5±1.5 dBm @ MCS5 40 MHz
  19.5±1.5 dBm @ MCS6 40 MHz
  19.5±1.5 dBm @ MCS7 40 MHz
  19±1.5 dBm @ MCS8 40 MHz
  18.5±1.5 dBm @ MCS9 40 MHz
  21±1.5 dBm @ MCS0 80 MHz
  21±1.5 dBm @ MCS1 80 MHz
  21±1.5 dBm @ MCS2 80 MHz
  21±1.5 dBm @ MCS3 80 MHz
  20±1.5 dBm @ MCS4 80 MHz
  20±1.5 dBm @ MCS5 80 MHz
  19±1.5 dBm @ MCS6 80 MHz
  19±1.5 dBm @ MCS7 80 MHz
  18.5±1.5 dBm @ MCS8 80 MHz
  18.5±1.5 dBm @ MCS9 80 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  18±1.5 dBm @ MCS0 20 MHz
  18±1.5 dBm @ MCS1 20 MHz
  18±1.5 dBm @ MCS2 20 MHz
  18±1.5 dBm @ MCS3 20 MHz
  17±1.5 dBm @ MCS4 20 MHz
  17±1.5 dBm @ MCS5 20 MHz
  15.5±1.5 dBm @ MCS6 20 MHz
  15±1.5 dBm @ MCS7 20 MHz
  14.5±1.5 dBm @ MCS8 20 MHz
  18±1.5 dBm @ MCS0 40 MHz
  18±1.5 dBm @ MCS1 40 MHz
  18±1.5 dBm @ MCS2 40 MHz
  18±1.5 dBm @ MCS3 40 MHz
  17±1.5 dBm @ MCS4 40 MHz
  17±1.5 dBm @ MCS5 40 MHz
  15±1.5 dBm @ MCS6 40 MHz
  15.5±1.5 dBm @ MCS7 40 MHz
  15±1.5 dBm @ MCS8 40 MHz
  14.5±1.5 dBm @ MCS9 40 MHz
  18±1.5 dBm @ MCS0 80 MHz
  18±1.5 dBm @ MCS1 80 MHz
  18±1.5 dBm @ MCS2 80 MHz
  18±1.5 dBm @ MCS3 80 MHz
  17±1.5 dBm @ MCS4 80 MHz
  17±1.5 dBm @ MCS5 80 MHz
  15.5±1.5 dBm @ MCS6 80 MHz
  15±1.5 dBm @ MCS7 80 MHz
  14.5±1.5 dBm @ MCS8 80 MHz
  14.5±1.5 dBm @ MCS9 80 MHz
Transmitter Power for 802.11ax (5 GHz, Dual Chain)
- TAP-M310R-NPS-1R and -1P1R models:
  22±1.5 dBm @ MCS0 20 MHz
  22±1.5 dBm @ MCS1 20 MHz
  21±1.5 dBm @ MCS2 20 MHz
  21±1.5 dBm @ MCS3 20 MHz
  19±1.5 dBm @ MCS4 20 MHz
  19±1.5 dBm @ MCS5 20 MHz
  19±1.5 dBm @ MCS6 20 MHz
  19±1.5 dBm @ MCS7 20 MHz
  19±1.5 dBm @ MCS8 20 MHz
  18.5±1.5 dBm @ MCS9 20 MHz
  18±1.5 dBm @ MCS10 20 MHz
  17.5±1.5 dBm @ MCS11 20 MHz
  21.5±1.5 dBm @ MCS0 40 MHz
  21.5±1.5 dBm @ MCS1 40 MHz
  21±1.5 dBm @ MCS2 40 MHz
  21±1.5 dBm @ MCS3 40 MHz
  20±1.5 dBm @ MCS4 40 MHz
  20±1.5 dBm @ MCS5 40 MHz
  19±1.5 dBm @ MCS6 40 MHz
  19±1.5 dBm @ MCS7 40 MHz
  19±1.5 dBm @ MCS8 40 MHz
  18.5±1.5 dBm @ MCS9 40 MHz
  18±1.5 dBm @ MCS10 40 MHz
  17.5±1.5 dBm @ MCS11 40 MHz
  21±1.5 dBm @ MCS0 80 MHz
  21±1.5 dBm @ MCS1 80 MHz
  21±1.5 dBm @ MCS2 80 MHz
  21±1.5 dBm @ MCS3 80 MHz
  20±1.5 dBm @ MCS4 80 MHz
  20±1.5 dBm @ MCS5 80 MHz
  18.5±1.5 dBm @ MCS6 80 MHz
  18.5±1.5 dBm @ MCS7 80 MHz
  18.5±1.5 dBm @ MCS8 80 MHz
  18±1.5 dBm @ MCS9 80 MHz
  18±1.5 dBm @ MCS10 80 MHz
  17.5±1.5 dBm @ MCS11 80 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  18±1.5 dBm @ MCS0 20 MHz
  18±1.5 dBm @ MCS1 20 MHz
  18±1.5 dBm @ MCS2 20 MHz
  18±1.5 dBm @ MCS3 20 MHz
  17±1.5 dBm @ MCS4 20 MHz
  17±1.5 dBm @ MCS5 20 MHz
  15.5±1.5 dBm @ MCS6 20 MHz
  15±1.5 dBm @ MCS7 20 MHz
  14.5±1.5 dBm @ MCS8 20 MHz
  14±1.5 dBm @ MCS9 20 MHz
  13.5±1.5 dBm @ MCS10 20 MHz
  13.5±1.5 dBm @ MCS11 20 MHz
  18±1.5 dBm @ MCS0 40 MHz
  18±1.5 dBm @ MCS1 40 MHz
  17.5±1.5 dBm @ MCS2 40 MHz
  17.5±1.5 dBm @ MCS3 40 MHz
  16.5±1.5 dBm @ MCS4 40 MHz
  16.5±1.5 dBm @ MCS5 40 MHz
  16±1.5 dBm @ MCS6 40 MHz
  15.5±1.5 dBm @ MCS7 40 MHz
  14±1.5 dBm @ MCS8 40 MHz
  14±1.5 dBm @ MCS9 40 MHz
  13.5±1.5 dBm @ MCS10 40 MHz
  13.5±1.5 dBm @ MCS11 40 MHz
  18±1.5 dBm @ MCS0 80 MHz
  18±1.5 dBm @ MCS1 80 MHz
  17.5±1.5 dBm @ MCS2 80 MHz
  17.5±1.5 dBm @ MCS3 80 MHz
  16.5±1.5 dBm @ MCS4 80 MHz
  16.5±1.5 dBm @ MCS5 80 MHz
  15.5±1.5 dBm @ MCS6 80 MHz
  15.5±1.5 dBm @ MCS7 80 MHz
  14.5±1.5 dBm @ MCS8 80 MHz
  14±1.5 dBm @ MCS9 80 MHz
  13.5±1.5 dBm @ MCS10 80 MHz
  13.5±1.5 dBm @ MCS11 80 MHz
Transmitter Power for 802.11b
- TAP-M310R-NPS-1R and -1P1R models:
  27±1.5 dBm @ 1 Mbps
  27±1.5 dBm @ 2 Mbps
  27±1.5 dBm @ 5.5 Mbps
  27±1.5 dBm @ 11 Mbps

  TAP-M310R-1P1R1S and -1P2R1S models:
  23.5±1.5 dBm @ 1 Mbps
  23.5±1.5 dBm @ 2 Mbps
  23.5±1.5 dBm @ 5.5 Mbps
  23.5±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g
- TAP-M310R-NPS-1R and -1P1R models:
  26.5±1.5 dBm @ 6 Mbps
  26.5±1.5 dBm @ 9 Mbps
  26.5±1.5 dBm @ 12 Mbps
  25±1.5 dBm @ 18 Mbps
  25±1.5 dBm @ 24 Mbps
  25±1.5 dBm @ 36 Mbps
  24.5±1.5 dBm @ 48 Mbps
  23.5±1.5 dBm @ 54 Mbps

  TAP-M310R-1P1R1S and -1P2R1S models:
  23±1.5 dBm @ 6 Mbps
  23±1.5 dBm @ 9 Mbps
  23±1.5 dBm @ 12 Mbps
  22±1.5 dBm @ 18 Mbps
  22±1.5 dBm @ 24 Mbps
  22±1.5 dBm @ 36 Mbps
  21.5±1.5 dBm @ 48 Mbps
  20.5±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
- TAP-M310R-NPS-1R and -1P1R models:
  26.5±1.5 dBm @ MCS0 20 MHz
  26.5±1.5 dBm @ MCS1 20 MHz
  25±1.5 dBm @ MCS2 20 MHz
  25±1.5 dBm @ MCS3 20 MHz
  25±1.5 dBm @ MCS4 20 MHz
  24.5±1.5 dBm @ MCS5 20 MHz
  23.5±1.5 dBm @ MCS6 20 MHz
  23±1.5 dBm @ MCS7 20 MHz
  25.5±1.5 dBm @ MCS8 20 MHz
  25.5±1.5 dBm @ MCS9 20 MHz
  24±1.5 dBm @ MCS10 20 MHz
  24±1.5 dBm @ MCS11 20 MHz
  24±1.5 dBm @ MCS12 20 MHz
  24±1.5 dBm @ MCS13 20 MHz
  22.5±1.5 dBm @ MCS14 20 MHz
  22±1.5 dBm @ MCS15 20 MHz
  26±1.5 dBm @ MCS0 40 MHz
  26±1.5 dBm @ MCS1 40 MHz
  25.5±1.5 dBm @ MCS2 40 MHz
  25±1.5 dBm @ MCS3 40 MHz
  24.5±1.5 dBm @ MCS4 40 MHz
  24±1.5 dBm @ MCS5 40 MHz
  23±1.5 dBm @ MCS6 40 MHz
  22.5±1.5 dBm @ MCS7 40 MHz
  24±1.5 dBm @ MCS8 40 MHz
  24±1.5 dBm @ MCS9 40 MHz
  23.5±1.5 dBm @ MCS10 40 MHz
  23.5±1.5 dBm @ MCS11 40 MHz
  22±1.5 dBm @ MCS12 40 MHz
  22±1.5 dBm @ MCS13 40 MHz
  21.5±1.5 dBm @ MCS14 40 MHz
  21.5±1.5 dBm @ MCS15 40 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  23±1.5 dBm @ MCS0 20 MHz
  23±1.5 dBm @ MCS1 20 MHz
  22±1.5 dBm @ MCS2 20 MHz
  22±1.5 dBm @ MCS3 20 MHz
  21.5±1.5 dBm @ MCS4 20 MHz
  21±1.5 dBm @ MCS5 20 MHz
  20.5±1.5 dBm @ MCS6 20 MHz
  19.5±1.5 dBm @ MCS7 20 MHz
  23±1.5 dBm @ MCS8 20 MHz
  23±1.5 dBm @ MCS9 20 MHz
  21±1.5 dBm @ MCS10 20 MHz
  21±1.5 dBm @ MCS11 20 MHz
  21±1.5 dBm @ MCS12 20 MHz
  21±1.5 dBm @ MCS13 20 MHz
  20±1.5 dBm @ MCS14 20 MHz
  19±1.5 dBm @ MCS15 20 MHz
  22.5±1.5 dBm @ MCS0 40 MHz
  22.5±1.5 dBm @ MCS1 40 MHz
  22.5±1.5 dBm @ MCS2 40 MHz
  21.5±1.5 dBm @ MCS3 40 MHz
  21±1.5 dBm @ MCS4 40 MHz
  20.5±1.5 dBm @ MCS5 40 MHz
  20±1.5 dBm @ MCS6 40 MHz
  19.5±1.5 dBm @ MCS7 40 MHz
  22±1.5 dBm @ MCS8 40 MHz
  22±1.5 dBm @ MCS9 40 MHz
  21±1.5 dBm @ MCS10 40 MHz
  20±1.5 dBm @ MCS11 40 MHz
  19±1.5 dBm @ MCS12 40 MHz
  19±1.5 dBm @ MCS13 40 MHz
  18.5±1.5 dBm @ MCS14 40 MHz
  19±1.5 dBm @ MCS15 40 MHz
Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)
- TAP-M310R-NPS-1R and -1P1R models:
  26±1.5 dBm @ MCS0 20 MHz
  26±1.5 dBm @ MCS1 20 MHz
  24.5±1.5 dBm @ MCS2 20 MHz
  24.5±1.5 dBm @ MCS3 20 MHz
  24.5±1.5 dBm @ MCS4 20 MHz
  24±1.5 dBm @ MCS5 20 MHz
  23±1.5 dBm @ MCS6 20 MHz
  22.5±1.5 dBm @ MCS7 20 MHz
  22.5±1.5 dBm @ MCS8 20 MHz
  25±1.5 dBm @ MCS0 40 MHz
  25±1.5 dBm @ MCS1 40 MHz
  24±1.5 dBm @ MCS2 40 MHz
  24±1.5 dBm @ MCS3 40 MHz
  22.5±1.5 dBm @ MCS4 40 MHz
  22.5±1.5 dBm @ MCS5 40 MHz
  22.5±1.5 dBm @ MCS6 40 MHz
  22.5±1.5 dBm @ MCS7 40 MHz
  22.5±1.5 dBm @ MCS8 40 MHz
  22±1.5 dBm @ MCS9 40 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  22.5±1.5 dBm @ MCS0 20 MHz
  22.5±1.5 dBm @ MCS1 20 MHz
  22±1.5 dBm @ MCS2 20 MHz
  21.5±1.5 dBm @ MCS3 20 MHz
  21.5±1.5 dBm @ MCS4 20 MHz
  21±1.5 dBm @ MCS5 20 MHz
  20±1.5 dBm @ MCS6 20 MHz
  19.5±1.5 dBm @ MCS7 20 MHz
  19.5±1.5 dBm @ MCS8 20 MHz
  22±1.5 dBm @ MCS0 40 MHz
  22±1.5 dBm @ MCS1 40 MHz
  22±1.5 dBm @ MCS2 40 MHz
  21±1.5 dBm @ MCS3 40 MHz
  21±1.5 dBm @ MCS4 40 MHz
  20±1.5 dBm @ MCS5 40 MHz
  19.5±1.5 dBm @ MCS6 40 MHz
  19.5±1.5 dBm @ MCS7 40 MHz
  19±1.5 dBm @ MCS8 40 MHz
  18.5±1.5 dBm @ MCS9 40 MHz
Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)
- TAP-M310R-NPS-1R and -1P1R models:
  26.5±1.5 dBm @ MCS0 20 MHz
  26.5±1.5 dBm @ MCS1 20 MHz
  24.5±1.5 dBm @ MCS2 20 MHz
  24.5±1.5 dBm @ MCS3 20 MHz
  24±1.5 dBm @ MCS4 20 MHz
  24±1.5 dBm @ MCS5 20 MHz
  23.5±1.5 dBm @ MCS6 20 MHz
  23.5±1.5 dBm @ MCS7 20 MHz
  22.5±1.5 dBm @ MCS8 20 MHz
  22±1.5 dBm @ MCS9 20 MHz
  21.5±1.5 dBm @ MCS10 20 MHz
  21.5±1.5 dBm @ MCS11 20 MHz
  25±1.5 dBm @ MCS0 40 MHz
  25±1.5 dBm @ MCS1 40 MHz
  24±1.5 dBm @ MCS2 40 MHz
  24±1.5 dBm @ MCS3 40 MHz
  24±1.5 dBm @ MCS4 40 MHz
  22±1.5 dBm @ MCS5 40 MHz
  22±1.5 dBm @ MCS6 40 MHz
  22±1.5 dBm @ MCS7 40 MHz
  22±1.5 dBm @ MCS8 40 MHz
  22±1.5 dBm @ MCS9 40 MHz
  21.5±1.5 dBm @ MCS10 40 MHz
  21.5±1.5 dBm @ MCS11 40 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  22.5±1.5 dBm @ MCS0 20 MHz
  22.5±1.5 dBm @ MCS1 20 MHz
  21±1.5 dBm @ MCS2 20 MHz
  21±1.5 dBm @ MCS3 20 MHz
  21±1.5 dBm @ MCS4 20 MHz
  20.5±1.5 dBm @ MCS5 20 MHz
  20±1.5 dBm @ MCS6 20 MHz
  19.5±1.5 dBm @ MCS7 20 MHz
  19±1.5 dBm @ MCS8 20 MHz
  19±1.5 dBm @ MCS9 20 MHz
  18.5±1.5 dBm @ MCS10 20 MHz
  18.5±1.5 dBm @ MCS11 20 MHz
  22±1.5 dBm @ MCS0 40 MHz
  22±1.5 dBm @ MCS1 40 MHz
  21±1.5 dBm @ MCS2 40 MHz
  21±1.5 dBm @ MCS3 40 MHz
  21±1.5 dBm @ MCS4 40 MHz
  20.5±1.5 dBm @ MCS5 40 MHz
  19.5±1.5 dBm @ MCS6 40 MHz
  19.5±1.5 dBm @ MCS7 40 MHz
  19±1.5 dBm @ MCS8 40 MHz
  18.5±1.5 dBm @ MCS9 40 MHz
  18±1.5 dBm @ MCS10 40 MHz
  18±1.5 dBm @ MCS11 40 MHz
Receiver Sensitivity for 802.11a
- TAP-M310R-NPS-1R and -1P1R models:
  Typ. -89 @ 6 Mbps
  Typ. -87 @ 9 Mbps
  Typ. -86 @ 12 Mbps
  Typ. -84 @ 18 Mbps
  Typ. -81 @ 24 Mbps
  Typ. -78 @ 36 Mbps
  Typ. -73 @ 48 Mbps
  Typ. -72 @ 54 Mbps

  TAP-M310R-1P1R1S and -1P2R1S models:
  Typ. -86 @ 6 Mbps
  Typ. -84 @ 9 Mbps
  Typ. -83 @ 12 Mbps
  Typ. -80 @ 18 Mbps
  Typ. -77 @ 24 Mbps
  Typ. -74 @ 36 Mbps
  Typ. -70 @ 48 Mbps
  Typ. -68 @ 54 Mbps
Receiver Sensitivity for 802.11n (5 GHz)
- TAP-M310R-NPS-1R and -1P1R models:
  Typ. -89 dBm @ MCS0 20 MHz
  Typ. -86 dBm @ MCS1 20 MHz
  Typ. -83 dBm @ MCS2 20 MHz
  Typ. -80 dBm @ MCS3 20 MHz
  Typ. -76 dBm @ MCS4 20 MHz
  Typ. -72 dBm @ MCS5 20 MHz
  Typ. -70 dBm @ MCS6 20 MHz
  Typ. -69 dBm @ MCS7 20 MHz
  Typ. -89 dBm @ MCS8 20 MHz
  Typ. -86 dBm @ MCS9 20 MHz
  Typ. -84 dBm @ MCS10 20 MHz
  Typ. -81 dBm @ MCS11 20 MHz
  Typ. -78 dBm @ MCS12 20 MHz
  Typ. -74 dBm @ MCS13 20 MHz
  Typ. -72 dBm @ MCS14 20 MHz
  Typ. -70 dBm @ MCS15 20 MHz
  Typ. -86 dBm @ MCS0 40 MHz
  Typ. -83 dBm @ MCS1 40 MHz
  Typ. -80 dBm @ MCS2 40 MHz
  Typ. -77 dBm @ MCS3 40 MHz
  Typ. -74 dBm @ MCS4 40 MHz
  Typ. -69 dBm @ MCS5 40 MHz
  Typ. -68 dBm @ MCS6 40 MHz
  Typ. -66 dBm @ MCS7 40 MHz
  Typ. -87 dBm @ MCS8 40 MHz
  Typ. -83 dBm @ MCS9 40 MHz
  Typ. -81 dBm @ MCS10 40 MHz
  Typ. -78 dBm @ MCS11 40 MHz
  Typ. -75 dBm @ MCS12 40 MHz
  Typ. -71 dBm @ MCS13 40 MHz
  Typ. -70 dBm @ MCS14 40 MHz
  Typ. -68 dBm @ MCS15 40 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  Typ. -85 dBm @ MCS0 20 MHz
  Typ. -82 dBm @ MCS1 20 MHz
  Typ. -80 dBm @ MCS2 20 MHz
  Typ. -76 dBm @ MCS3 20 MHz
  Typ. -73 dBm @ MCS4 20 MHz
  Typ. -68 dBm @ MCS5 20 MHz
  Typ. -67 dBm @ MCS6 20 MHz
  Typ. -65 dBm @ MCS7 20 MHz
  Typ. -86 dBm @ MCS8 20 MHz
  Typ. -83 dBm @ MCS9 20 MHz
  Typ. -81 dBm @ MCS10 20 MHz
  Typ. -78 dBm @ MCS11 20 MHz
  Typ. -75 dBm @ MCS12 20 MHz
  Typ. -71 dBm @ MCS13 20 MHz
  Typ. -69 dBm @ MCS14 20 MHz
  Typ. -66 dBm @ MCS15 20 MHz
  Typ. -83 dBm @ MCS0 40 MHz
  Typ. -79 dBm @ MCS1 40 MHz
  Typ. -77 dBm @ MCS2 40 MHz
  Typ. -74 dBm @ MCS3 40 MHz
  Typ. -70 dBm @ MCS4 40 MHz
  Typ. -66 dBm @ MCS5 40 MHz
  Typ. -65 dBm @ MCS6 40 MHz
  Typ. -63 dBm @ MCS7 40 MHz
  Typ. -84 dBm @ MCS8 40 MHz
  Typ. -80 dBm @ MCS9 40 MHz
  Typ. -78 dBm @ MCS10 40 MHz
  Typ. -74 dBm @ MCS11 40 MHz
  Typ. -72 dBm @ MCS12 40 MHz
  Typ. -68 dBm @ MCS13 40 MHz
  Typ. -67 dBm @ MCS14 40 MHz
  Typ. -65 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11ac (5 GHz)
- TAP-M310R-NPS-1R and -1P1R models:
  Typ. -89 dBm @ MCS0 20 MHz
  Typ. -86 dBm @ MCS1 20 MHz
  Typ. -83 dBm @ MCS2 20 MHz
  Typ. -80 dBm @ MCS3 20 MHz
  Typ. -78 dBm @ MCS4 20 MHz
  Typ. -73 dBm @ MCS5 20 MHz
  Typ. -72 dBm @ MCS6 20 MHz
  Typ. -70 dBm @ MCS7 20 MHz
  Typ. -66 dBm @ MCS8 20 MHz
  Typ. -87 dBm @ MCS0 40 MHz
  Typ. -83 dBm @ MCS1 40 MHz
  Typ. -81 dBm @ MCS2 40 MHz
  Typ. -78 dBm @ MCS3 40 MHz
  Typ. -75 dBm @ MCS4 40 MHz
  Typ. -71 dBm @ MCS5 40 MHz
  Typ. -70 dBm @ MCS6 40 MHz
  Typ. -68 dBm @ MCS7 40 MHz
  Typ. -64 dBm @ MCS8 40 MHz
  Typ. -62 dBm @ MCS9 40 MHz
  Typ. -84 dBm @ MCS0 80 MHz
  Typ. -81 dBm @ MCS1 80 MHz
  Typ. -78 dBm @ MCS2 80 MHz
  Typ. -75 dBm @ MCS3 80 MHz
  Typ. -72 dBm @ MCS4 80 MHz
  Typ. -68 dBm @ MCS5 80 MHz
  Typ. -66 dBm @ MCS6 80 MHz
  Typ. -64 dBm @ MCS7 80 MHz
  Typ. -61 dBm @ MCS8 80 MHz
  Typ. -59 dBm @ MCS9 80 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  Typ. -86 dBm @ MCS0 20 MHz
  Typ. -82 dBm @ MCS1 20 MHz
  Typ. -80 dBm @ MCS2 20 MHz
  Typ. -77 dBm @ MCS3 20 MHz
  Typ. -74 dBm @ MCS4 20 MHz
  Typ. -70 dBm @ MCS5 20 MHz
  Typ. -68 dBm @ MCS6 20 MHz
  Typ. -67 dBm @ MCS7 20 MHz
  Typ. -63 dBm @ MCS8 20 MHz
  Typ. -83 dBm @ MCS0 40 MHz
  Typ. -80 dBm @ MCS1 40 MHz
  Typ. -78 dBm @ MCS2 40 MHz
  Typ. -74 dBm @ MCS3 40 MHz
  Typ. -72 dBm @ MCS4 40 MHz
  Typ. -68 dBm @ MCS5 40 MHz
  Typ. -66 dBm @ MCS6 40 MHz
  Typ. -65 dBm @ MCS7 40 MHz
  Typ. -61 dBm @ MCS8 40 MHz
  Typ. -59 dBm @ MCS9 40 MHz
  Typ. -81 dBm @ MCS0 80 MHz
  Typ. -77 dBm @ MCS1 80 MHz
  Typ. -75 dBm @ MCS2 80 MHz
  Typ. -71 dBm @ MCS3 80 MHz
  Typ. -68 dBm @ MCS4 80 MHz
  Typ. -65 dBm @ MCS5 80 MHz
  Typ. -63 dBm @ MCS6 80 MHz
  Typ. -61 dBm @ MCS7 80 MHz
  Typ. -57 dBm @ MCS8 80 MHz
  Typ. -56 dBm @ MCS9 80 MHz
Receiver Sensitivity for 802.11ax (5 GHz)
- TAP-M310R-NPS-1R and -1P1R models:
  Typ. -89 dBm @ MCS0 20 MHz
  Typ. -86 dBm @ MCS1 20 MHz
  Typ. -84 dBm @ MCS2 20 MHz
  Typ. -81 dBm @ MCS3 20 MHz
  Typ. -78 dBm @ MCS4 20 MHz
  Typ. -73 dBm @ MCS5 20 MHz
  Typ. -72 dBm @ MCS6 20 MHz
  Typ. -70 dBm @ MCS7 20 MHz
  Typ. -66 dBm @ MCS8 20 MHz
  Typ. -65 dBm @ MCS9 20 MHz
  Typ. -61 dBm @ MCS10 20 MHz
  Typ. -59 dBm @ MCS11 20 MHz
  Typ. -87 dBm @ MCS0 40 MHz
  Typ. -84 dBm @ MCS1 40 MHz
  Typ. -82 dBm @ MCS2 40 MHz
  Typ. -78 dBm @ MCS3 40 MHz
  Typ. -75 dBm @ MCS4 40 MHz
  Typ. -71 dBm @ MCS5 40 MHz
  Typ. -70 dBm @ MCS6 40 MHz
  Typ. -68 dBm @ MCS7 40 MHz
  Typ. -65 dBm @ MCS8 40 MHz
  Typ. -63 dBm @ MCS9 40 MHz
  Typ. -59 dBm @ MCS10 40 MHz
  Typ. -57 dBm @ MCS11 40 MHz
  Typ. -84 dBm @ MCS0 80 MHz
  Typ. -81 dBm @ MCS1 80 MHz
  Typ. -78 dBm @ MCS2 80 MHz
  Typ. -76 dBm @ MCS3 80 MHz
  Typ. -72 dBm @ MCS4 80 MHz
  Typ. -68 dBm @ MCS5 80 MHz
  Typ. -67 dBm @ MCS6 80 MHz
  Typ. -65 dBm @ MCS7 80 MHz
  Typ. -61 dBm @ MCS8 80 MHz
  Typ. -59 dBm @ MCS9 80 MHz
  Typ. -55 dBm @ MCS10 80 MHz
  Typ. -53 dBm @ MCS11 80 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  Typ. -87 dBm @ MCS0 20 MHz
  Typ. -83 dBm @ MCS1 20 MHz
  Typ. -81 dBm @ MCS2 20 MHz
  Typ. -78 dBm @ MCS3 20 MHz
  Typ. -75 dBm @ MCS4 20 MHz
  Typ. -71 dBm @ MCS5 20 MHz
  Typ. -69 dBm @ MCS6 20 MHz
  Typ. -67 dBm @ MCS7 20 MHz
  Typ. -64 dBm @ MCS8 20 MHz
  Typ. -62 dBm @ MCS9 20 MHz
  Typ. -58 dBm @ MCS10 20 MHz
  Typ. -56 dBm @ MCS11 20 MHz
  Typ. -84 dBm @ MCS0 40 MHz
  Typ. -81 dBm @ MCS1 40 MHz
  Typ. -79 dBm @ MCS2 40 MHz
  Typ. -76 dBm @ MCS3 40 MHz
  Typ. -72 dBm @ MCS4 40 MHz
  Typ. -63 dBm @ MCS5 40 MHz
  Typ. -67 dBm @ MCS6 40 MHz
  Typ. -65 dBm @ MCS7 40 MHz
  Typ. -62 dBm @ MCS8 40 MHz
  Typ. -60 dBm @ MCS9 40 MHz
  Typ. -56 dBm @ MCS10 40 MHz
  Typ. -54 dBm @ MCS11 40 MHz
  Typ. -81 dBm @ MCS0 80 MHz
  Typ. -78 dBm @ MCS1 80 MHz
  Typ. -75 dBm @ MCS2 80 MHz
  Typ. -72 dBm @ MCS3 80 MHz
  Typ. -69 dBm @ MCS4 80 MHz
  Typ. -65 dBm @ MCS5 80 MHz
  Typ. -64 dBm @ MCS6 80 MHz
  Typ. -62 dBm @ MCS7 80 MHz
  Typ. -58 dBm @ MCS8 80 MHz
  Typ. -56 dBm @ MCS9 80 MHz
  Typ. -52 dBm @ MCS10 80 MHz
  Typ. -50 dBm @ MCS11 80 MHz
Receiver Sensitivity for 802.11b
- TAP-M310R-NPS-1R and -1P1R models:
  Typ. -94 dBm @ 1 Mbps
  Typ. -90 dBm @ 2 Mbps
  Typ. -88 dBm @ 5.5 Mbps
  Typ. -85 dBm @ 11 Mbps

  TAP-M310R-1P1R1S and -1P2R1S models:
  Typ. -91 dBm @ 1 Mbps
  Typ. -87 dBm @ 2 Mbps
  Typ. -85 dBm @ 5.5 Mbps
  Typ. -83 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g
- TAP-M310R-NPS-1R and -1P1R models:
  Typ. -89 dBm @ 6 Mbps
  Typ. -87 dBm @ 9 Mbps
  Typ. -86 dBm @ 12 Mbps
  Typ. -84 dBm @ 18 Mbps
  Typ. -81 dBm @ 24 Mbps
  Typ. -78 dBm @ 36 Mbps
  Typ. -73 dBm @ 48 Mbps
  Typ. -72 dBm @ 54 Mbps

  TAP-M310R-1P1R1S and -1P2R1S models:
  Typ. -86 dBm @ 6 Mbps
  Typ. -84 dBm @ 9 Mbps
  Typ. -83 dBm @ 12 Mbps
  Typ. -81 dBm @ 18 Mbps
  Typ. -78 dBm @ 24 Mbps
  Typ. -74 dBm @ 36 Mbps
  Typ. -70 dBm @ 48 Mbps
  Typ. -69 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz)
- TAP-M310R-NPS-1R and -1P1R models:
  Typ. -88 dBm @ MCS0 20 MHz
  Typ. -86 dBm @ MCS1 20 MHz
  Typ. -83 dBm @ MCS2 20 MHz
  Typ. -80 dBm @ MCS3 20 MHz
  Typ. -77 dBm @ MCS4 20 MHz
  Typ. -72 dBm @ MCS5 20 MHz
  Typ. -71 dBm @ MCS6 20 MHz
  Typ. -69 dBm @ MCS7 20 MHz
  Typ. -90 dBm @ MCS8 20 MHz
  Typ. -87 dBm @ MCS9 20 MHz
  Typ. -85 dBm @ MCS10 20 MHz
  Typ. -82 dBm @ MCS11 20 MHz
  Typ. -78 dBm @ MCS12 20 MHz
  Typ. -74 dBm @ MCS13 20 MHz
  Typ. -73 dBm @ MCS14 20 MHz
  Typ. -71 dBm @ MCS15 20 MHz
  Typ. -86 dBm @ MCS0 40 MHz
  Typ. -84 dBm @ MCS1 40 MHz
  Typ. -81 dBm @ MCS2 40 MHz
  Typ. -78 dBm @ MCS3 40 MHz
  Typ. -74 dBm @ MCS4 40 MHz
  Typ. -70 dBm @ MCS5 40 MHz
  Typ. -68 dBm @ MCS6 40 MHz
  Typ. -67 dBm @ MCS7 40 MHz
  Typ. -88 dBm @ MCS8 40 MHz
  Typ. -85 dBm @ MCS9 40 MHz
  Typ. -83 dBm @ MCS10 40 MHz
  Typ. -79 dBm @ MCS11 40 MHz
  Typ. -76 dBm @ MCS12 40 MHz
  Typ. -72 dBm @ MCS13 40 MHz
  Typ. -70 dBm @ MCS14 40 MHz
  Typ. -68 dBm @ MCS15 40 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  Typ. -85 dBm @ MCS0 20 MHz
  Typ. -82 dBm @ MCS1 20 MHz
  Typ. -80 dBm @ MCS2 20 MHz
  Typ. -77 dBm @ MCS3 20 MHz
  Typ. -73 dBm @ MCS4 20 MHz
  Typ. -69 dBm @ MCS5 20 MHz
  Typ. -68 dBm @ MCS6 20 MHz
  Typ. -66 dBm @ MCS7 20 MHz
  Typ. -87 dBm @ MCS8 20 MHz
  Typ. -84 dBm @ MCS9 20 MHz
  Typ. -82 dBm @ MCS10 20 MHz
  Typ. -79 dBm @ MCS11 20 MHz
  Typ. -75 dBm @ MCS12 20 MHz
  Typ. -71 dBm @ MCS13 20 MHz
  Typ. -70 dBm @ MCS14 20 MHz
  Typ. -68 dBm @ MCS15 20 MHz
  Typ. -83 dBm @ MCS0 40 MHz
  Typ. -80 dBm @ MCS1 40 MHz
  Typ. -78 dBm @ MCS2 40 MHz
  Typ. -74 dBm @ MCS3 40 MHz
  Typ. -71 dBm @ MCS4 40 MHz
  Typ. -67 dBm @ MCS5 40 MHz
  Typ. -65 dBm @ MCS6 40 MHz
  Typ. -64 dBm @ MCS7 40 MHz
  Typ. -85 dBm @ MCS8 40 MHz
  Typ. -81 dBm @ MCS9 40 MHz
  Typ. -79 dBm @ MCS10 40 MHz
  Typ. -75 dBm @ MCS11 40 MHz
  Typ. -72 dBm @ MCS12 40 MHz
  Typ. -69 dBm @ MCS13 40 MHz
  Typ. -67 dBm @ MCS14 40 MHz
  Typ. -65 dBm @ MCS15 40 MHz
Receiver Sensitivity for 802.11ac (2.4 GHz)
- TAP-M310R-NPS-1R and -1P1R models:
  Typ. -90 dBm @ MCS0 20 MHz
  Typ. -86 dBm @ MCS1 20 MHz
  Typ. -84 dBm @ MCS2 20 MHz
  Typ. -81 dBm @ MCS3 20 MHz
  Typ. -78 dBm @ MCS4 20 MHz
  Typ. -74 dBm @ MCS5 20 MHz
  Typ. -72 dBm @ MCS6 20 MHz
  Typ. -71 dBm @ MCS7 20 MHz
  Typ. -67 dBm @ MCS8 20 MHz
  Typ. -87 dBm @ MCS0 40 MHz
  Typ. -84 dBm @ MCS1 40 MHz
  Typ. -82 dBm @ MCS2 40 MHz
  Typ. -78 dBm @ MCS3 40 MHz
  Typ. -75 dBm @ MCS4 40 MHz
  Typ. -71 dBm @ MCS5 40 MHz
  Typ. -70 dBm @ MCS6 40 MHz
  Typ. -68 dBm @ MCS7 40 MHz
  Typ. -65 dBm @ MCS8 40 MHz
  Typ. -63 dBm @ MCS9 40 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  Typ. -86 dBm @ MCS0 20 MHz
  Typ. -83 dBm @ MCS1 20 MHz
  Typ. -81 dBm @ MCS2 20 MHz
  Typ. -78 dBm @ MCS3 20 MHz
  Typ. -75 dBm @ MCS4 20 MHz
  Typ. -71 dBm @ MCS5 20 MHz
  Typ. -69 dBm @ MCS6 20 MHz
  Typ. -67 dBm @ MCS7 20 MHz
  Typ. -64 dBm @ MCS8 20 MHz
  Typ. -84 dBm @ MCS0 40 MHz
  Typ. -81 dBm @ MCS1 40 MHz
  Typ. -79 dBm @ MCS2 40 MHz
  Typ. -75 dBm @ MCS3 40 MHz
  Typ. -72 dBm @ MCS4 40 MHz
  Typ. -68 dBm @ MCS5 40 MHz
  Typ. -67 dBm @ MCS6 40 MHz
  Typ. -65 dBm @ MCS7 40 MHz
  Typ. -61 dBm @ MCS8 40 MHz
  Typ. -60 dBm @ MCS9 40 MHz
Receiver Sensitivity for 802.11ax (2.4 GHz)
- TAP-M310R-NPS-1R and -1P1R models:
  Typ. -89 dBm @ MCS0 20 MHz
  Typ. -87 dBm @ MCS1 20 MHz
  Typ. -84 dBm @ MCS2 20 MHz
  Typ. -81 dBm @ MCS3 20 MHz
  Typ. -78 dBm @ MCS4 20 MHz
  Typ. -74 dBm @ MCS5 20 MHz
  Typ. -73 dBm @ MCS6 20 MHz
  Typ. -71 dBm @ MCS7 20 MHz
  Typ. -67 dBm @ MCS8 20 MHz
  Typ. -65 dBm @ MCS9 20 MHz
  Typ. -62 dBm @ MCS10 20 MHz
  Typ. -60 dBm @ MCS11 20 MHz
  Typ. -87 dBm @ MCS0 40 MHz
  Typ. -85 dBm @ MCS1 40 MHz
  Typ. -83 dBm @ MCS2 40 MHz
  Typ. -80 dBm @ MCS3 40 MHz
  Typ. -76 dBm @ MCS4 40 MHz
  Typ. -72 dBm @ MCS5 40 MHz
  Typ. -71 dBm @ MCS6 40 MHz
  Typ. -69 dBm @ MCS7 40 MHz
  Typ. -65 dBm @ MCS8 40 MHz
  Typ. -63 dBm @ MCS9 40 MHz
  Typ. -60 dBm @ MCS10 40 MHz
  Typ. -58 dBm @ MCS11 40 MHz

  TAP-M310R-1P1R1S and -1P2R1S models:
  Typ. -87 dBm @ MCS0 20 MHz
  Typ. -84 dBm @ MCS1 20 MHz
  Typ. -81 dBm @ MCS2 20 MHz
  Typ. -78 dBm @ MCS3 20 MHz
  Typ. -75 dBm @ MCS4 20 MHz
  Typ. -71 dBm @ MCS5 20 MHz
  Typ. -70 dBm @ MCS6 20 MHz
  Typ. -68 dBm @ MCS7 20 MHz
  Typ. -64 dBm @ MCS8 20 MHz
  Typ. -62 dBm @ MCS9 20 MHz
  Typ. -59 dBm @ MCS10 20 MHz
  Typ. -56 dBm @ MCS11 20 MHz
  Typ. -85 dBm @ MCS0 40 MHz
  Typ. -82 dBm @ MCS1 40 MHz
  Typ. -79 dBm @ MCS2 40 MHz
  Typ. -76 dBm @ MCS3 40 MHz
  Typ. -73 dBm @ MCS4 40 MHz
  Typ. -69 dBm @ MCS5 40 MHz
  Typ. -68 dBm @ MCS6 40 MHz
  Typ. -66 dBm @ MCS7 40 MHz
  Typ. -62 dBm @ MCS8 40 MHz
  Typ. -60 dBm @ MCS9 40 MHz
  Typ. -57 dBm @ MCS10 40 MHz
  Typ. -54 dBm @ MCS11 40 MHz

Ethernet Interface

Standards
- All models:
  IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3bz for 2.5GBaseT
  IEEE 802.1Q for VLAN Tagging

  TAP-M310R-1P1R1S and -1P2R1S models only:
  IEEE 802.3z for 1000BaseX
10/100/1000/2500BaseT(X) Ports (M12 X-coded 8-pin female connector)
- 1
1000/2500BaseSFP Slots
- 2

Ethernet Software Features

Management
- DHCP Server
  DHCP Client
  DNS
  HTTP
  IPv4
  LLDP
  SMTP
  SNMPv1/v2c/v3
  Syslog
  TCP/IP
  Telnet
  UDP
  VLAN
  MXconfig
Security
- HTTPS/SSL
  RADIUS
  SSH
  Certificate Management
Time Management
- SNTP Client

Firewall

Filter
- ICMP
  MAC address
  IP protocol
  Port-based
  Wi-Fi ACL
  Client Isolation

Serial Interface

Console Port
- RS-232 (M12 A-coded 5-pin male connector)

LED Interface

LED Indicators
- PWR, PWR R, PWR L, SYS, 2.4G, 5G, LAN 1

Input/Output Interface

Buttons
- Reset button

Physical Characteristics

Housing
- Metal
IP Rating
- IP67
Dimensions
- 74.25 x 150 x 130 mm (2.92 x 5.91 x 5.12 in)
Weight
- 1,688 g (3.72 lb)
Installation
- Wall mounting
  DIN-rail mounting (optional)

Power Parameters

Input Current
- 1,35 A @ 24 VDC
Input Voltage
- 24 VDC
Power Connector
- M12 A-coded 4-pin male connector
Power Consumption
- 32.4 W (max.)

Environmental Limits

Operating Temperature
- -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 61000-6-2/-6-4
  EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V/m
  IEC 61000-4-8 PFMF: 30 A/m
Safety
- IEC 62368-1
  UL 62368-1
Railway
- EN 50121-4
  EN 50155
Railway Fire Protection
- EN 45545-2
Radio
- EN 300 328, EN 301 489-1/17, EN 301 893, EN 300 440, FCC

MTBF

Time
- 2,531,479 hrs
Standards
- Telcordia Standard SR-332

Details

Warranty

5 years

Customer Reviews

Data Sheet

Click the PDF to know More details

Thank you!

Your submission has been sent.

TAP-M310R-NPS-1R-US-CT-T

Write a Review

Moxa

TAP-M310R-NPS-1R-US-CT-T

Frequently Bought Together:

Description

WLAN Interface

WLAN Standards

Frequency Band for US (20 MHz operating channels)

Frequency Band for EU (20 MHz operating channels)

Wireless Security

Transmission Rate

WLAN Operation Mode

Antenna Connectors

Transmitter Power for 802.11a

Transmitter Power for 802.11n (5 GHz)

Transmitter Power for 802.11ac (5 GHz, Dual Chain)

Transmitter Power for 802.11ax (5 GHz, Dual Chain)

Transmitter Power for 802.11b

Transmitter Power for 802.11g

Transmitter Power for 802.11n (2.4 GHz)

Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)

Receiver Sensitivity for 802.11a

Receiver Sensitivity for 802.11n (5 GHz)

Receiver Sensitivity for 802.11ac (5 GHz)

Receiver Sensitivity for 802.11ax (5 GHz)

Receiver Sensitivity for 802.11b

Receiver Sensitivity for 802.11g

Receiver Sensitivity for 802.11n (2.4 GHz)

Receiver Sensitivity for 802.11ac (2.4 GHz)

Receiver Sensitivity for 802.11ax (2.4 GHz)

Ethernet Interface

Standards

10/100/1000/2500BaseT(X) Ports (M12 X-coded 8-pin female connector)

1000/2500BaseSFP Slots

Ethernet Software Features

Management

Security

Time Management

Firewall

Filter

Serial Interface

Console Port

LED Interface

LED Indicators

Input/Output Interface

Buttons

Physical Characteristics

Housing

IP Rating

Dimensions

Weight

Installation

Power Parameters

Input Current

Input Voltage

Power Connector

Power Consumption

Environmental Limits

Operating Temperature

Storage Temperature (package included)

Ambient Relative Humidity

Standards and Certifications

EMC

EMI

EMS

Safety

Railway

Railway Fire Protection

Radio
