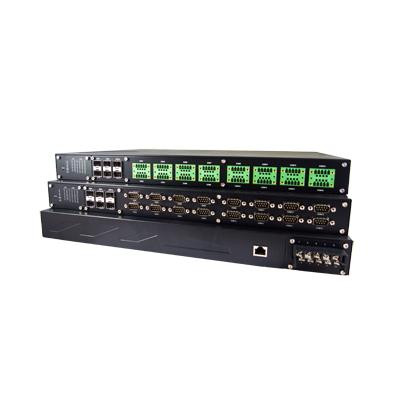

Industrial 16-Port Serial Device Server, DB9(M), RS-232/422/485, RJ45, dual pwr input
| Hardware Specifications | |
|---|---|
| CPU | Texas Instruments Sitara ARM Cortex A8 AM3352 1000MHz |
| Flash | 32 MB NOR Flash (customizable upon request up to 64 MB) |
| RAM | 256 MB DDR3 (customizable upon request up to 1 GB) |
| EEPROM | 24LC64 |
| Watchdog | ADM706 |
| Real Time Clock (RTC) | Yes - with external chip |
| Buzzer | Yes |
| Console port | Yes - RJ45 Serial Console |
| Reset Button | Yes |
| Network Interface | |
|---|---|
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseF(X) |
| Ethernet Ports | 6x 10/100 BASE-T(X) RJ45 or 6x 100 BASE-F(X) SFP Slots (SFP version) |
| Ethernet Switch | Embedded 8-Ports Fast-Ethernet Switch (configurable). Each port can work as single Subnet or as Switch |
| Serial Interface | |
|---|---|
| Connector | DB version: D-Sub9 (DB9) connector TB and SiS version: 5-Pin Terminal Block (5.08mm) |
| Ports | SE5908A: 8-ports (RS-232 (supports only 5-pin mode)/RS-422/RS-485) SE5916A: 16-ports (RS-232 (supports only 5-pin mode)/RS-422/RS-485) |
| Serial Console | 1x Serial Console port (RJ45) |
| Serial Port Isolation | 3 kV (SiS version only) |
| Pull-high / Pull-low /Term. resistors | Software Selectable |
| Baud Rate | 50 ~ 921,600bps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 2 |
| Flow Control | None, Xon/Xoff, RTS/CTS (RS-232 only) |
| Other interfaces | |
|---|---|
| USB ports | No |
| SD Card | SD card slot (internal) |
| Relay Output | 1x 1A@30VDC (Normal open) |
| Software | |
|---|---|
| Bootloader | U-boot 2014.07 |
| Linux kernel | Linux 3.14.26 |
| Linux toolchain | Linux 32 bits toolchain gcc (C/C++ PC cross compiler), glibc |
| Linux sample code | RS232, RS485, RTC, watchdog, LED, Buzzer, Button, network socket |
| Power | |
|---|---|
| Rated Aupply Voltage | Redundant 24-48 VDC or Redundant 100-240 VAC/ 100-370 VDC (HV Series) |
| Input Voltage Range | Redundant 19.2-52.8 VDC or Redundant 85-264 VAC/ 100-370 VDC (HV Series) |
| Input Current | 0.73 A @ 24 VDC 0.35 A @ 100 VAC 0.20 A @ 100 VDC |
| Power Consumption | Approximately 20 W |
| Connector | 10-Pin Terminal Block |
| Power Redundancy | Yes |
| Reverse Polarity Protection | Yes |
| Environmental | |
|---|---|
| Operating Temperature | -40°C to +80°C (-40°F to +176°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Ambient Relative Humidity | 5%~95%, 55° (Non-condensing) |
| Mechanical | |
|---|---|
| Housing | IP30 protection, SPCC metal housing |
| Dimensions(W x H x D) | 440.6 x 44 x 309 mm (1U Rack-mount) |
| Installation | 19’’ Rack-Mount (Kit included) |
| Weight | 4,000g |
| Reset Button | Yes |
