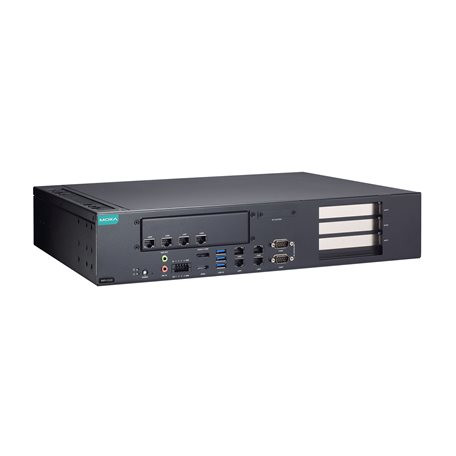

Moxa RKP-C220-C3-4L-T x86 Computer

Description
Details
Warranty
Customer Reviews
Data Sheet

Description

Rackmount 2U computer with Intel® Core™ i3-13100TE processor, 8 LAN ports, 2 serial ports, 4 DIs, 4 DOs, 3 USB 3.0 ports, 1 HDMI port, 1 DisplayPort, 2 SSD slots, 1 M.2 M Key 2280 slot, 2 M.2 M Key 2242 slots, 100 to 240 VAC power input, -30 to 60°C operating temperature

Computer

CPU
- RKP-C220-C9 models: Intel® Core™ i9-13900TE
  RKP-C220-C7 models: Intel® Core™ i7-13700TE
  RKP-C220-C5 models: Intel® Core™ i5-13500TE
  RKP-C220-C3 models: Intel® Core™ i3-13100TE
Chipset
- Intel® Q670E
System Memory Slot
- SODIMM DDR4 slots x 2, up to 64 GB max.
System Memory Pre-installed
- 8 GB DDR4
Storage Slot
- 2.5-inch SSD slot x 2 (SATA III interface, RAID 0/1 support)
  M.2 M Key 2280 socket x 1 (PCIe interface, NVMe support)
  M.2 M Key 2242 socket x 2 (PCIe interface, NVMe support, RAID 0/1 support)
Supported OS
- OS images:
  - Windows 10 IoT Enterprise LTSC 2021 64-bit
  - Windows 11 IoT Enterprise LTSC 2024 64–bit
  - Windows 11 Professional 64-bit
  Windows drivers supported:
  - Windows 10 IoT Enterprise LTSC 2021 64-bit
  - Windows 11 IoT Enterprise LTSC 2024 64–bit
  - Windows 11 Professional 64-bit
  - Windows Server 2022
  Linux driver supported:
  - Debian 12 (kernel 6.10)
  - Ubuntu 22.04 LTS/ HWE (kernel 5.15)
  - RHEL 9.0 (kernel 5.14)
Graphics Controller
- i9. i7, and i5 processor: Intel® UHD Graphics 770
  i3 processor: Intel® UHD Graphics 730

Computer Interface

Ethernet Ports
- RKP-C220-C9-T/ RKP-C220-C7-T/ RKP-C220-C5-T/ RKP-C220-C3-T:
  Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 2
  RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T:
  Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
  Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 2
Serial Channels
- RKP-C220-C9-T/ RKP-C220-C7-T/ RKP-C220-C5-T/ RKP-C220-C3-T:
  RS-232/RS-422/RS-485-2W/RS-485-4W ports x 2, software selectable (DB9 male)
  RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T:
  RS-232/RS-422/RS-485-2W/RS-485-4W ports x 10, software selectable (DB9 male)
  RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T:
  RS-232/RS-422/RS-485-2W/RS-485-4W ports x 8, software selectable (DB9 male)
CAN Ports
- RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T:
  CAN Ports x 2
Expansion Slots
- PCIe x16 (Gen 4) slot x 1
  PCIe x8 (4-lane, Gen 4) slot x 1
  PCIe x1 (Gen 4) slot x 1
USB 3.0
- External: USB 3.0 hosts x 3, type-A connector
  Internal: USB 3.0 hosts x 1, type-A connector
Digital Input
- DIs x 4
Digital Output
- DOs x 4
Audio Input/Output
- Mic-in x 1, 3.5 mm audio jack
  Line-out x 1, 3.5 mm audio jack
Video Output
- HDMI 2.0b x 1, (type-A connector)
  DisplayPort 1.2 x 1
Buttons
- Reset button
  Power button
TPM
- TPM v2.0

Ethernet Interface

Magnetic Isolation Protection
- 1.5 kV (built-in)

Serial Interface

Baudrate
- 50 bps to 115.2 kbps
Connector
- DB9 male
Data Bits
- 5, 6, 7, 8
Parity
- None, Even, Odd, Space, Mark
Stop Bits
- 1, 1.5, 2
Flow Control
- RTS/CTS, XON/XOFF

Serial Signals

RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
- Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
- Data+, Data-, GND
RS-485-4w
- Tx+, Tx-, Rx+, Rx-, GND

Digital Inputs

Connector
- Spring-type Euroblock terminal
Sensor Type
- Dry contact
Dry Contact
- Logic 0: Short to GND
  Logic 1: Open

Digital Outputs

Connector
- Spring-type Euroblock terminal
I/O Type
- Sink
Current Rating
- 200 mA per channel
Voltage
- 0 to 24 VDC

CAN Interface

Connector
- DB9 male
Protocols
- CAN 2.0A
  CAN 2.0B
Signals
- CAN_H, CAN_L, CAN_GND
Isolation
- 2 kV (built-in)

Power Parameters

Input Voltage
- 100 to 240 VAC
Power Consumption
- 90 W
  (without graphics card)
Power Connector
- IEC 60320 C16 inlet

Physical Characteristics

Housing
- Metal
IP Rating
- IP20
Dimensions
- 440 x 360 x 88.1 mm (17.32 x 14.17 x 3.47 in)
Weight
- RKP-C220-C9-T/C7-T/C5-T/C3-T:
  8,913 g (19.65 Ib)
  RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T:
  8,914 g (19.65 Ib)
  RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T:
  9,196 g (20.27 Ib)
  RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T models:
  9,062 g (19.98 Ib)
Installation
- Rack mounting (standard 2U)

Environmental Limits

Operating Temperature
- -30 to 60°C (-22 to 140°F)
  (without graphics card; refer to the graphics card operating temperature specification if applicable)
Storage Temperature
- -40 to 70°C (-40 to 158°F)
Ambient Relative Humidity
- 5 to 95% (non-condensing)

Standards and Certifications

EMC
- EN 55032/35
EMI
- CISPR 32, FCC Part 15B Class A
  BSMI
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: Line-to-PE: 2 kV; Line-to-Line: 1 kV, Signal: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
Safety
- UL 62368-1 (CB)
  BSMI
Shock
- IEC 60068-2-27
Vibration
- IEC 60068-2-64
Package Drop Test
- ISTA 1A
Package Vibration Test
- ISTA 1A

Declaration

Green Product
- RoHS, CRoHS, WEEE

Reliability

Time Source
- Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger
- Built-in WDT

MTBF

Time
- RKP-C220-C9-T/C7-T/C5-T/C3-T: 1,168,494 hrs
  RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T: 993,182 hrs
  RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T: 1,101,194 hrs
  RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T: 995,157 hrs hrs
Standards
- Telcordia (Bellcore), GB

Details

Warranty

3 years
