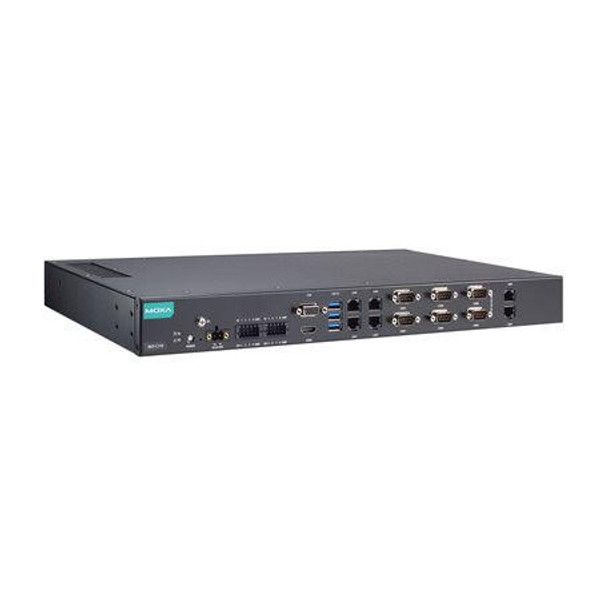

Rackmount 1U computer with Intel® Core™ i7-185G7E processor, 6 LAN ports, 6 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperature
Computer
-
CPU
- RKP-C110-C1 Series: Intel® Celeron® 6305E "(Dual core, 4M cache, 1.80 GHz)
RKP-C110-C5 Series: Intel® Core™ Processor i5-1145G7E (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz)
RKP-C110-C7 Series: Intel® Core™ Processor i7-1185G7E (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz)
-
System Memory Slot
- SODIMM DDR4 slots x 1, up to 32 GB max.
-
System Memory Pre-installed
-
Storage Slot
- 2.5-inch SSD slots x 2 (SATAIII interface)
RAID 0/1 support
-
Storage Pre-installed
-
Supported OS
- Windows Images and Drivers Supported:
- Windows 10 IoT Ent LTSC 2021 64-bit
- Windows 11 Professional 64-bit
Linux Drivers Supported:
- Debian 11 (Kernel 5.10)
- Ubuntu 22.04 LTS (Kernel 5.15)
- RHEL 9 (Kernel 5.14)
-
Graphics Controller
Computer Interface
-
Ethernet Ports
- RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12
RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
All Other Models:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
-
Serial Ports
- RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models:
RS-232/422/485 ports x 10, software selectable (DB9 male)
RKP-C110-C1-2L4C-T/C5-2L4C-TC7-2L4C-T Models:
RS-232/422/485 ports x 6, software selectable (DB9 male)
All Other Models:
RS-232/422/485 ports x 2, software selectable (DB9 male)
-
USB 3.0
- USB 3.0 hosts x 3, type-A connectors
-
Digital Input
-
Digital Output
-
TPM
-
Video Output
- HDMI 2.0b x 1, (type A connector)
VGA x 1, 15-pin D-sub connector (female)
-
Buttons
Ethernet Interface
-
Magnetic Isolation Protection
Serial Interface
-
Baudrate
-
Connector
-
Data Bits
-
Parity
- None, Even, Odd, Space, Mark
-
Stop Bits
-
Flow Control
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
-
RS-485-2w
-
RS-485-4w
Digital Inputs
-
Connector
- Spring-type Euroblock terminal
-
Sensor Type
-
Dry Contact
- Logic 0: Short to GND
Logic 1: Open
Digital Outputs
-
Connector
- Spring-type Euroblock terminal
-
I/O Type
-
Current Rating
-
Voltage
LED Indicators
-
System
-
LAN
- 2 per port (10/100/1000 Mbps)
Power Parameters
-
Input Voltage
-
Power Connector
- Screw-fastened Euroblock terminal
-
Power Consumption
Physical Characteristics
-
Housing
-
IP Rating
-
Dimensions
- 440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in)
-
Weight
- RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models:
3,610 g (7.95 Ib)
RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models:
3,540 g (7.80 Ib)
RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models:
3,800 g (8.37 Ib)
RKP-C110-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Models:
3,350 g (7.38 Ib)
-
Installation
- Rack mounting (standard 1U)
Environmental Limits
-
Operating Temperature
- -30 to 60°C (-22 to 140°F)
-
Storage Temperature
- -40 to 75°C (-40 to 167°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
BSMI
-
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
-
Safety
-
Shock
-
Vibration
-
Package Drop Test
-
Package Vibration Test
Reliability
-
Time Source
- Built-in RTC (real-time clock) with lithium-battery backup
-
Automatic Reboot Trigger
