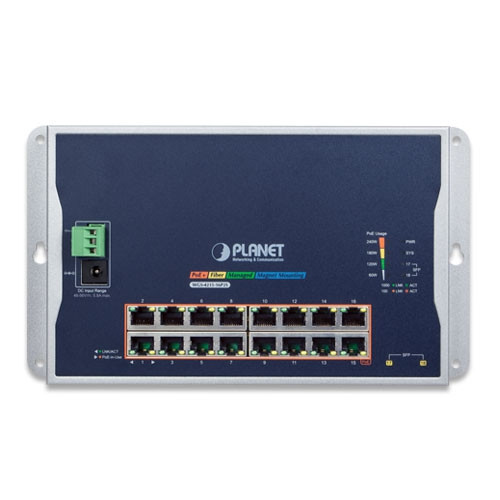

Sixteen with 802.3at PoE+ injector function (Ports1 to 16)
SFP/mini-GBIC Ports
Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode
Reset Button
< 5 sec: System reboot > 5 sec: Factory default
Connector
Removable 3-pin terminal block for power input Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) Pin 3 for earth ground DC power jack with 2.1mm central pole
Power Requirements
48~54V DC, 5.8A (max.) terminal block power input 48~54V DC, 5.8A (max.) DC jack power input
Note: The two power input interfaces don’t support power redundant function.
Power Consumption/ Dissipation
Max. 276 watts/941 BTU
Dimensions (W x D x H)
245 x 24.4 x 140 mm
Weight
929g
Enclosure
IP30 metal case
Installation
Fixed wall mount, magnetic wall mount or DIN rail
ESD Protection
Contact Discharge 6KV DC Air Discharge 8KV DC
LED
Power LED: Power (Green) PoE Port (Ports 1 to 16): PoE-in-Use (Amber) LNK/ACT (Green) 100/1000X SFP Ports (Port 17 to 18): 1000 LNK/ACT (Green) 100 LNK/ACT (Amber)
Switch Specifications
Switch Architecture
Store-and-Forward
Switch Fabric
36Gbps/non-blocking
Switch Throughput@64 bytes
26.78Mpps @64 bytes
MAC Address Table
8K entries
Shared Data Buffer
4.1 megabits
Flow Control
IEEE 802.3x pause frame for full duplex Back pressure for half duplex
Jumbo Frame
10Kbytes
Power over Ethernet
PoE Standard
IEEE 802.3af/802.3at Power over Ethernet PSE
PoE Power Supply Type
End-span
PoE Power Output
IEEE 802.3af Standard Per port 48V~54V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard Per port 50V~54V DC (depending on the power supply), max. 36 watts
802.1Q tagged VLAN 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs
Link Aggregation
IEEE 802.3ad LACP and static trunk Supports 8 groups with 8 ports per trunk
Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU guard, BPDU filtering and BPDU forwarding
IGMP Snooping
IPv4 IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups
MLD Snooping
IPv6 MLD (v1/v2) snooping, up to 256 multicast groups
QoS
8 mapping IDs to 8 level priority queues Port Number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control
Ring
Supports ERPS, and complies with ITU-T G.8032 Recovery time < 450ms
Quick Installation Guide x 1 3-pin Terminal Block Connector x 1 Wall-mounted Kit x 1 DIN-rail Kit x 1 Magnet Kit x 1 RJ45 Dust Cap x 16 SFP Dust Cap x 2
