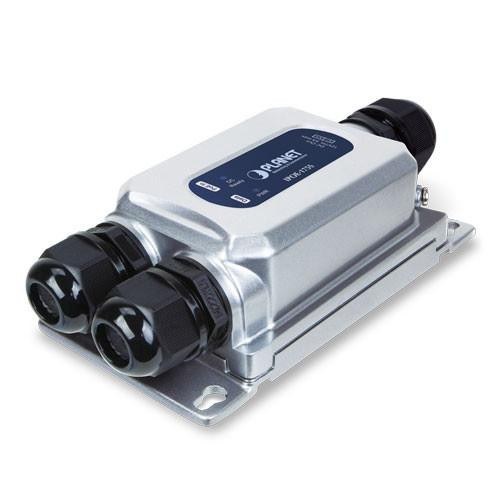

IPOE-175S

Write a Review
$167.20
SKU:
PT-IPOE-15
UPC:
847690009513
MPN:
IPOE-175S
Availability:
3 IN STOCK: Usually ships within 24 hours
Weight:
0.93 LBS
Current Stock:
Request a Quote
Loading…

Frequently Bought Together:

PLANET Technology IPOE-175S
Inc. Tax
Ex. Tax

Description

Industrial IP67 802.3bt PoE++ Splitter (DC 12V, -40~75 degrees C)

Hardware Specifications
Input Port 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt PoE++
“PoE + Data” in RJ45 port
Output Port 1 x 10/100/1000BASE-T
“Data” out RJ45 port
Output Power Terminal Block 1 x 2-pin terminal block “DC” out port
- Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)
Data Rate 10/100/1000Mbps
LED Indicators PWR (Green)
DC Ready x 1 (Green)
Input Voltage 44~56V DC
Power Requirement 4-pair 802.3at PoE+ and 802.3bt PoE++ : 52~56V DC
802.3at PoE+ : 48~56V DC
Power Consumption Ethernet full loading without DC output:
Full loading with maximum 12V DC, 5A output: 65.6watts
ESD Protection Air 8KV DC
Contact 6KV DC
Surge Protection 6KV
Enclosure IP67-rated and IK10 aluminum case
Installation Wall-mount ear
Dimensions (W x D x H) 150.5 x 43.8 x 72.93 mm
169.85 x 43.8 x 72.94 mm, with cable gland
Weight 424g
MTBF >100,000 hours
Network Cable 10BASE-T: UTP category 3,4, 5 cable (≤100m)
100BASE-TX: UTP category 5,5e cable (≤100m)
1000BASE-T: UTP category 5e,6 cable (≤100m)
Power over Ethernet
PoE Standard IEEE 802.3bt PoE++ type 3 PD
Backward compatible with IEEE 802.3at PoE+
PoE Power Supply Type 802.3bt PoE++/PoH (Power over HDBaseT)
802.3at PoE+ End-span/Mid-span
PoE Power Output DC 12V, 5A (60W, full load)
Power Pin Assignment 1/2 (-); 3/6 (+), 4/5 (+), 7/8 (-) or 1/2 (+); 3/6 (-), 4/5 (+), 7/8 (-)
Standards Conformance
Regulatory Compliance FCC Part 15 Class A, CE
Stability Testing IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)
Standard Conformances IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Operating Temperature -40 ~ 75 degrees C
Storage Temperature
-40 ~ 85 degrees C

Details

Warranty

5 years
