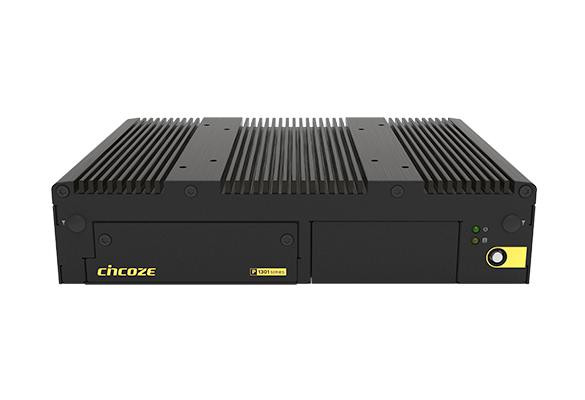

| System |
Processor |
• Onboard Intel® Alder Lake-N Series Processor:
- Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W
- Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W
- Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W |
| Memory |
• 1x DDR5 4800MHz SO-DIMM Socket
Supports Un-buffered and Non-ECC Type, Up to 16GB |
| BIOS |
• AMI BIOS |
| Graphics |
Graphics Engine |
• Integrated Intel® UHD Graphics |
| Maximum Display Output |
• Supports Triple Independent Display |
| CDS |
• 1x CDS Connector (1920 x 1080 @60Hz) |
| DP |
• 1x DisplayPort Connector (4096 x 2304 @60Hz)
* Verified maximum resolution: 3840 x 2160 @ 60Hz |
| VGA |
• 1x VGA Connector (1920 x 1200 @60Hz) |
| Audio |
Audio Codec |
• Realtek® ALC888, High Definition Audio |
| Line-out |
• 1x Line-out, Phone Jack 3.5mm |
| Mic-in |
• 1x Mic-in, Phone Jack 3.5mm |
| I/O |
LAN |
• 2x 2.5GbE LAN, RJ45
- GbE1 / GbE2: Intel® I225 |
| COM |
• 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 |
| USB |
• 3 x USB 3.2 Gen2x1 (10Gbps), Type A
• 1 x USB 2.0 (480Mbps), Type A |
| DIO |
• 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block |
| Storage |
SSD/HDD |
• 1x 2.5" Front Accessible SATA HDD/SSD Bay |
| M.2 SSD |
• 1 x M.2 SSD Shared by M.2 Key B Socket |
| Expansion |
M.2 Key E Socket |
• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion |
| M.2 Key B Socket |
• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / SATA ), Support 5G/Storage/Add-on Card Expansion |
| SIM Socket |
• 1x Front Accessible SIM Socket |
| CFM (Control Function Module) Interface |
• 1x CFM Interface for optional IGN Module Expansion
• 1x CFM Interface for optional PoE Module Expansion |
| Other Function |
Clear CMOS Switch |
• 1 x Clear CMOS Switch |
| Reset Button |
• 1x Reset Button |
| Instant Reboot |
• Support 0.2sec Instant Reboot Technology |
| Watchdog Timer |
• Software Programmable Supports 256 Levels System Reset |
| OSD Function |
• LCD On/Off, Brightness Up, Brightness Down |
| Internal Speaker |
• AMP 2W + 2W |
| Status LED Indicator |
• Power LED, HDD LED |
| Power |
Power Button |
• 1x ATX Power On/Off Button |
| Power Mode Switch |
• 1x AT/ATX Mode Switch |
| Power Input |
• 9 - 48VDC, 3-pin Terminal Block |
| Remote Power On/Off |
• 1x Remote Power On/Off, 2-pin Terminal Block |
| Remote Power LED |
• 1x Remote Power LED, 2-pin Terminal Block |
| Operating Stystem |
Microsoft® Windows® |
• Windows®11, Windows®10 |
| Linux |
• Ubuntu 22.04 |
| Physical |
Dimension ( W x D x H ) |
• 204.5 x 149 x 46.5mm |
| Weight |
• 1.57 kg |
| Mechanical Construction |
• Extruded Aluminum with Heavy Duty Metal |
| Mounting |
• Wall / VESA / CDS / DIN Rail |
| Physical Design |
• Fanless Design
• Jumper-less Design |
| Reliability & Protection |
Reverse Power Input |
• Yes |
| Over Voltage Protection |
• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the present level to recover |
| Over Current Protection |
• 15A |
| CMOS Battery Backup |
• SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| MTBF |
• 306,338 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
| Environment |
Operating Temperature |
• Intel® Processor N97 / Atom® x7425E: -40°C to 70°C
• Intel® Core™ i3-N305: -40°C to 60°C
* PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature |
• -40°C to 70°C |
| Relative Humidity |
• Intel® Processor N97 / Atom® x7425E: 95%RH @ 70°C (non-Condensing)
• Intel® Core™ i3-N305: 95%RH @ 60°C (non-Condensing) |
| Shock |
• Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Vibration |
• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
| EMC |
• CE, UKCA, FCC, ICES-003 Class A
• EN61000-6-4, EN61000-6-2 @ DC-input 24V |
| EMI |
• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
| EMS |
• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
(**Compliant with the standard when utilizing shielded ethernet cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz |
| Safety |
UL, cUL, CB, IEC, EN 62368-1 |
