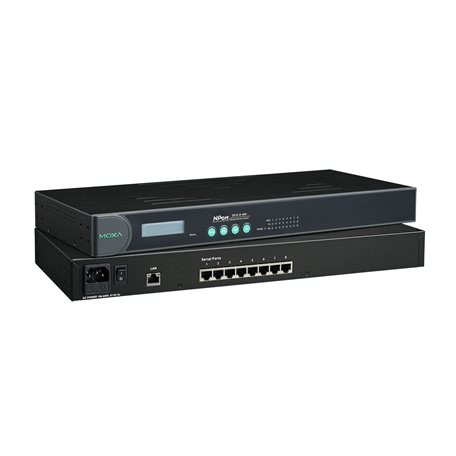

8 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, 100V or 240V
Ethernet Interface
-
10/100BaseT(X) Ports (RJ45 connector)
-
Magnetic Isolation Protection
Ethernet Software Features
-
Configuration Options
- Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
-
Management
- ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
-
Filter
-
Windows Real COM Drivers
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
-
Linux Real TTY Drivers
- Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
-
Fixed TTY Drivers
- SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
-
Android API
-
Time Management
Serial Interface
-
Connector
-
No. of Ports
-
Serial Standards
-
Operation Modes
- Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
-
Baudrate
- Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
-
Data Bits
-
Stop Bits
-
Parity
- None, Even, Odd, Space, Mark
-
Flow Control
- None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
-
Terminator for RS-485
-
RS-485 Data Direction Control
- ADDC® (automatic data direction control)
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
-
Input Current
-
Input Voltage
- 100 to 240 VAC, 47 to 63 Hz
Physical Characteristics
-
Housing
-
Installation
-
Dimensions (with ears)
- 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
-
Dimensions (without ears)
- 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
-
Weight
-
Interactive Interface
- LCD panel display
Push buttons for configuration
Environmental Limits
-
Operating Temperature
-
Storage Temperature (package included)
- -20 to 70°C (-4 to 158°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMC
-
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
-
Medical
- EN 60601-1-2 Class B, EN 55011
-
Safety
