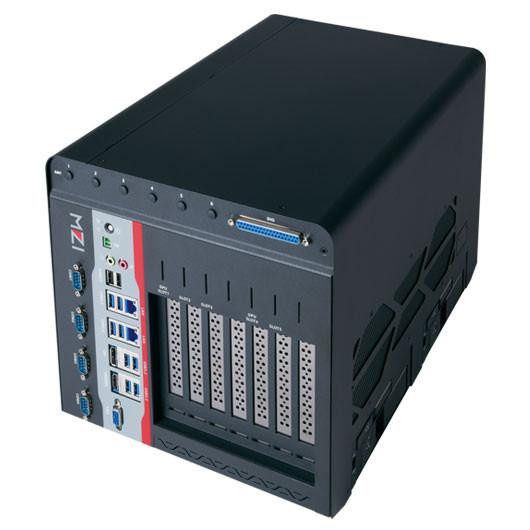

| SYSTEM |
|
CPU |
14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (Up to 125W) |
| |
CHIPSET |
Intel® R680E |
| |
SYSTEM MEMORY |
2 x 262-pin SO-DIMM / DDR5 4800 MHz / Max. 64 GB (Non-ECC/ECC) |
| |
GRAPHICS |
Intel® UHD Graphics |
| |
DISPLAY INTERFACE |
VGA / HDMI 2.0b / DisplayPort 1.4 |
| |
STORAGE SLOT |
1 x M.2 B Key 2280/2260/2242 Slot / 2 x Hot Swappable 2.5” HDD Tray (support 7-9.5mm height) / 2 x Hot Swappable 3.5” HDD Tray
/ 1 x CFast slot / 1 x M.2 M Key 2280/2262/2242 SSD slot / 1 x mSATA
/
*4 x SATA, 2 x M.2 SATA, and 1 x mSATA, all these 7 SATA ports can be configured in SATA RAID 0/1/5/10. |
| |
ETHERNET |
1 x Intel® I225-LM 2.5GbE LAN + 1 x Intel® I225-V 2.5GbE LAN |
| |
AUDIO |
Realtek® ALC888S |
| |
I/O CHIPSET |
Nuvoton NCT6126D |
| |
TPM |
Nuvoton NPCT750AAAYX TPM2.0 |
| |
EXPANSION SLOT |
1 x M.2 3052 / 3042 / 2242 / 2260 / 2280 B key (USB3.0 , SATAIII, PCIeX1) w/ SIM slot
/ 1 x M.2 2230/ 2242 / 2260 / 2280 M key (PCIeX4 NVME, SATAIII)
/ 1 x M.2 2230 E key (CNVi , PCIeX1, USB 2.0)
/ 1 x Mini PCIe Full size (USB2.0 / SATAIII / PCIeX1)
/ 1 x Mini PCIe Full size (USB2.0 / PCIeX1) /
#1: 1 x PCIe X16 (Gen4) or PCIe X8 (Gen4)
#2: 1 x PCIe X4 in PCIe X16 physical connector (Gen4)
#3: 1 x PCIe X4 in PCIe X16 physical connector (Gen4)
#4: 1 x PCIe X8 in PCIe X16 physical connector (Gen4 x8 = Gen3 x16 Bandwidth)
#5: 1 x PCIe X1 in open ended connector (Gen3) |
| |
INTERNAL SPEAKER |
1 x Buzzer |
| |
INDICATOR |
Power Button / Power LED / HDD LED |
| |
INTERNAL I/O |
1 x USB3.2 Gen1 TYPE A / 1 x USB2.0 TYPE A |
| |
FRONT I/O |
1 x 2-pin Terminal Block Remote Power on / off / 3 x RS232 / 4 x USB3.2 Gen2 / 4 x USB3.2 Gen1 / 6 x SMA hole with rubber cap / 1 x DB37 connector for 32 bit DIO / 1 x DisplayPort 1.4 / 1 x VGA / 1 x HDMI 2.0b / 2 x USB 2.0
/ 1 x RS232 / 422 / 485
/ 1 x Mic-in
/ 1 x Line-out |
| |
REAR I/O |
2 x 4-pin Terminal Block Power Input
/ 2 x SIM slot to M.2 B Key slot
/ 2 x SIM slot to mPCIe slot
/ 1 x CFast slot |
| POWER REQUIREMENT |
|
POWER INPUT |
9~48V Wide Range DC Input w/ Terminal Block Connectivity |
| |
POWER ADAPTER |
Optional 300W/1000W AC to DC PSU |
| MECHANICAL |
|
THERMAL DESIGN |
Fan |
| |
MOUNTING |
Wallmount |
| |
DIMENSIONS (W X D X H) |
264 x 415 x 256mm |
| |
WEIGHT |
13kg (28.7 lb) |
| ENVIRONMENTAL |
|
OPERATING TEMPERATURE |
-40°C ~ 70°C (w/ 35W CPU, w/o GPU card)
-40°C ~ 60°C (w/ 65W CPU, w/o GPU card)
-40°C ~ 40°C (w/ 125W CPU, w/o GPU card)
*Max OT limit -10°C w/ dual GPU card / with 0.7m/s Air Flow and Wide Temperature Memory/Storage / *Please consult with your sales contact window about the Operating Temperature of GPU Card Configurations |
| |
STORAGE TEMPERATURE |
-40 ~ 85°C (-40 ~185°F) |
| |
OPERATING HUMIDITY |
10% ~ 90% R/H (Non-condensing) |
| |
STORAGE HUMIDITY |
10% ~ 95% @85°C non-condensing |
| |
VIBRATION RESISTANCE |
MIL-STD-810H, Follow Method 514.8C-I Category 4 for Truck |
| |
SHOCK RESISTANCE |
MIL-STD-810H 516.8 procedure I - functional shock, Operating 20G, 11ms (Follow IEC 60068-2-27 half sine) |
| |
CERTIFICATION |
CE / FCC Class A |
| OS |
|
OS SUPPORT |
Windows® 10 IoT LTSC 64bit (LTSC 2021) / Ubuntu 22.04 / Windows® 11 64bit, |
| PACKING LIST |
|
PACKAGE |
1 x Embedded System / 1 x Wall Mount Brackets
/ 1 x 2 pin Terminal Block Male Connector / 2 x 4 pin Terminal Block Power Connector / 1 x GPU Power Cable kit |
