| SYSTEM |
|
CPU |
14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (Up to 65W) / *Please see the CPU Options in Docs / Manuals |
| |
CHIPSET |
Intel® R680E |
| |
SYSTEM MEMORY |
DDR5 4800 MHz / 2 x 262-pin SO-DIMM / Max. 96 GB (Non-ECC/ECC) |
| |
GRAPHICS |
Intel® UHD Graphics |
| |
DISPLAY INTERFACE |

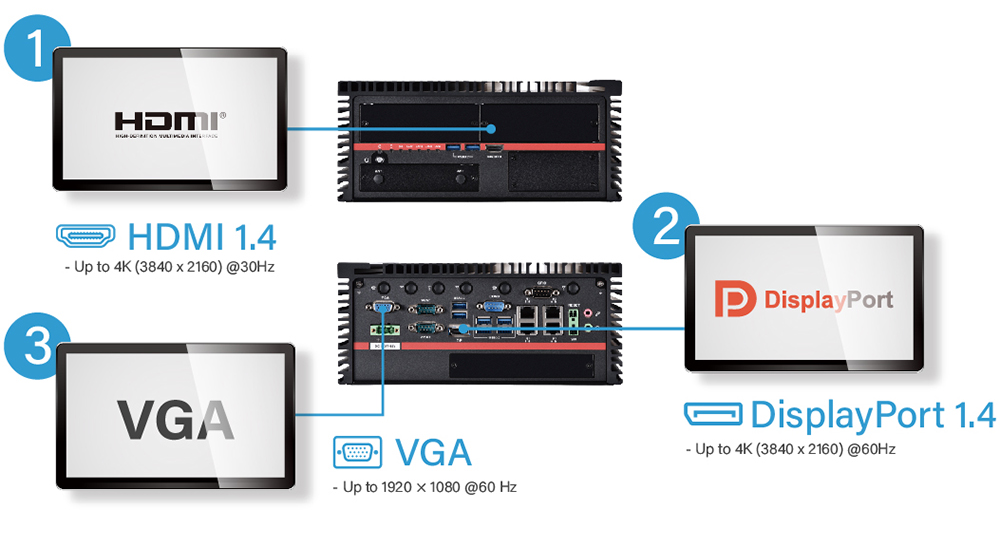

VGA / DisplayPort 1.4 / HDMI 1.4 |
| |
STORAGE SLOT |
2 x 2.5 HDD / SSD (1 w/ Removable HDD Bay, 1 w/ Internal HDD Bracket) / 1 x M.2 2280/2260/2242 NVMe / SATA SSD / 1 x M.2 2242/2260 SATA SSD / 1 x mSATA |
| |
ETHERNET |

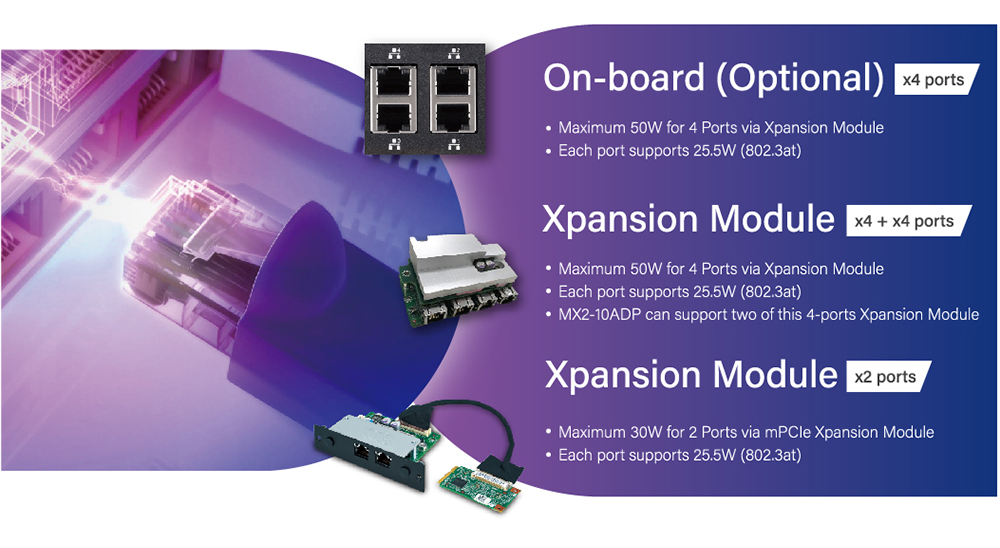

4 x Intel® I226-LM 2.5G LAN / *Optional 4 x PoE 802.3at Xpansion "MS-01PON-S10" |
| |
AUDIO |
Realtek® ALC888 |
| |
I/O CHIPSET |
Nuvoton NCT6126D |
| |
TPM |
Nuvoton NPCT760AABYX TPM2.0 |
| |

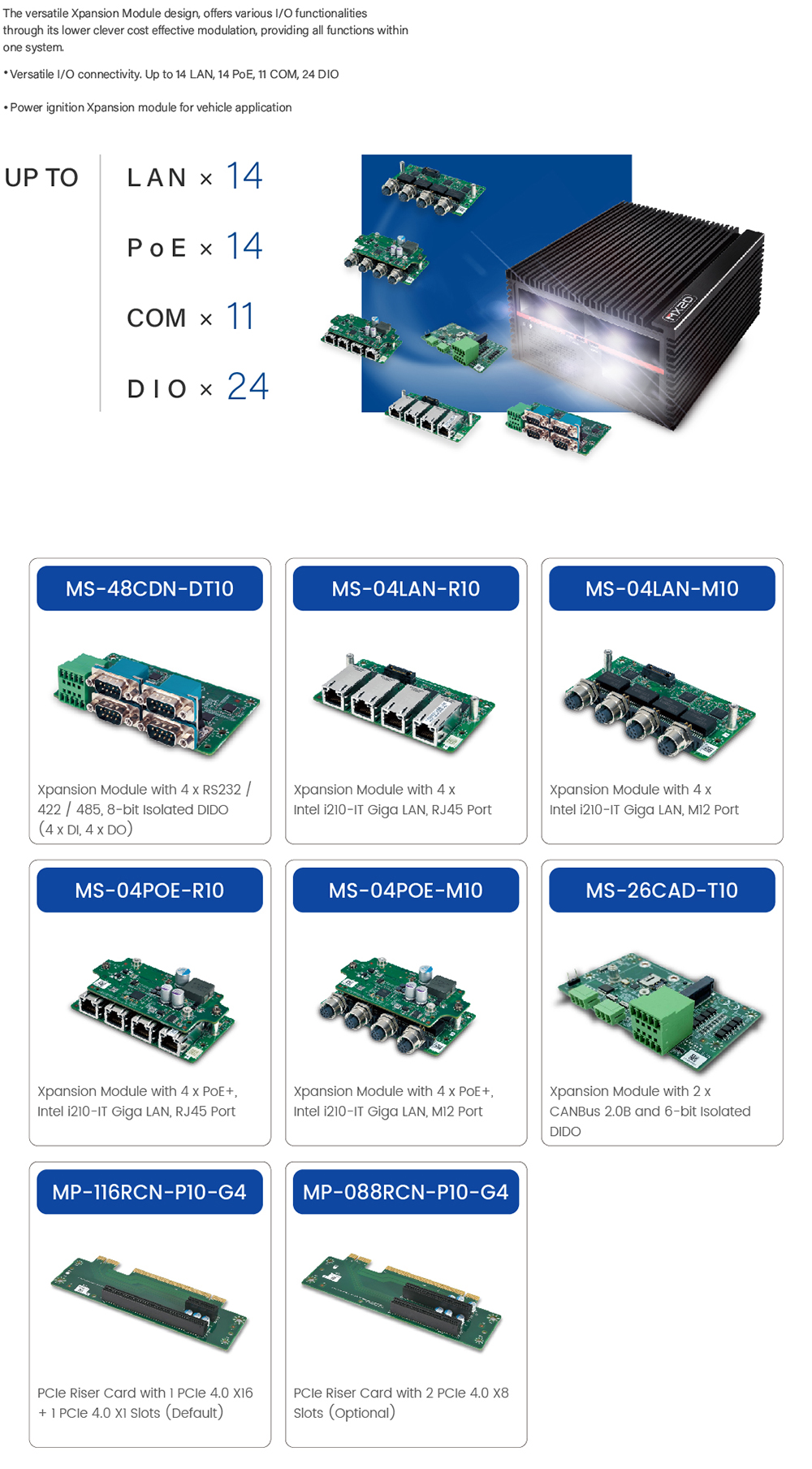

EXPANSION SLOT |
1 x M.2 2230/ 2242 / 2260 / 2280 M key (PCIeX4 NVME, SATAIII)/ 1 x mPCIe Full / Half size (USB2.0 / PCIeX1 / SATAIII) / 1 x M.2 2230 E key (CNVi , PCIeX1, USB 2.0) / 1 x M.2 3052 / 3042 / 2242 / 2260 B key (USB3.0 , SATAIII, PCIeX1) w/ 2 x SIM slot / PCIe 4.0 X16 slot / PCIe 4.0 X1 slot |
| |
INTERNAL SPEAKER |
1 x Buzzer |
| |
INDICATOR |
DIO / LAN1~4 ACT / Power LED / HDD LED |
| |

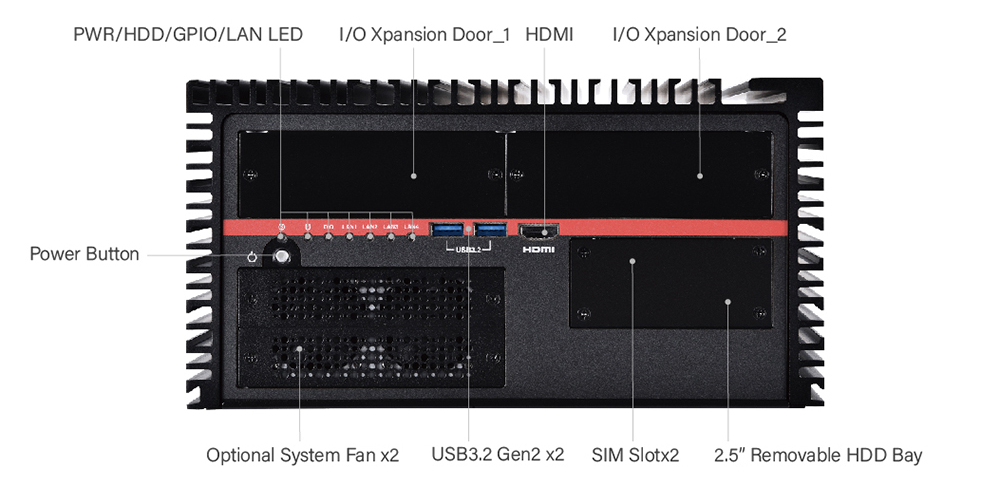

FRONT I/O |
1 x HDMI 1.4
/ 2 x USB 3.2 Gen2 / 2 x SIM Card Slot w/ Cover
/ 1 x 2.5" SATAIII HDD / SSD Bay |
| |

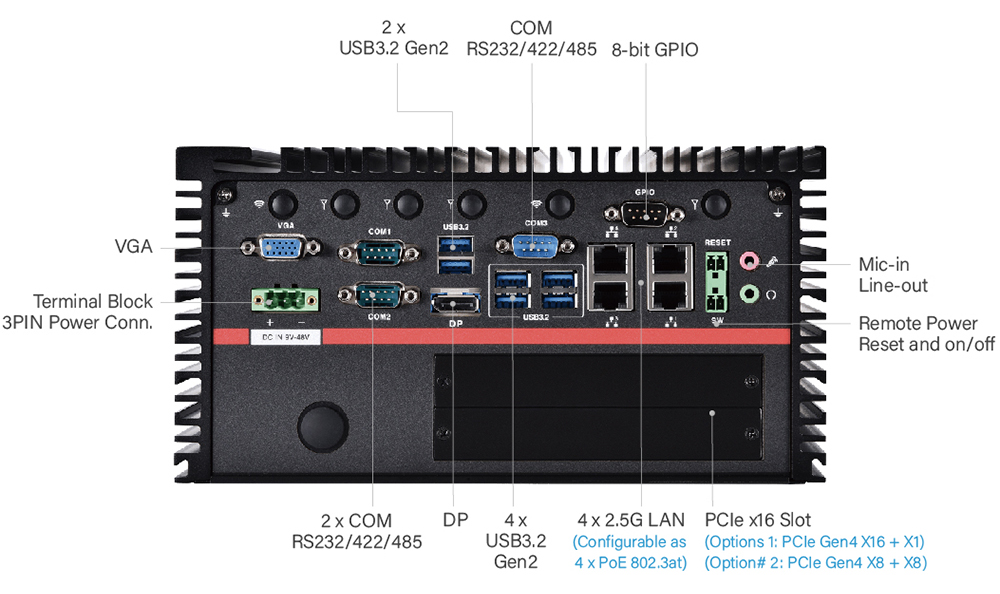

REAR I/O |
4 x RJ-45 / 6 x USB 3.2 Gen 2 (10 Gbps) / 3 x RS232 / 422 / 485 (Support Power 5V / 12V) / 6 x SMA Antenna (Optional for WiFi/LTE function) / 1 x 8-bit GPIO (in DB9 Connector) / 1 x PCIe x1 slot / 1 x DisplayPort 1.2
/ 1 x VGA
/ 1 x Mic-in
/ 1 x Line-out
/ 1 x PCIe x16 slot
/ 1 x 2-pin Terminal Block Remote Power Reset
/ 1 x 3-pin Terminal Block Power Input
/ 1 x 2-pin Terminal Block Remote Power on / off |
| POWER REQUIREMENT |
|
POWER INPUT |
9~48V Wide Range DC Input w/ Terminal Block Connectivity |
| |
POWER ADAPTER |
Optional |
| ENVIRONMENTAL |
|

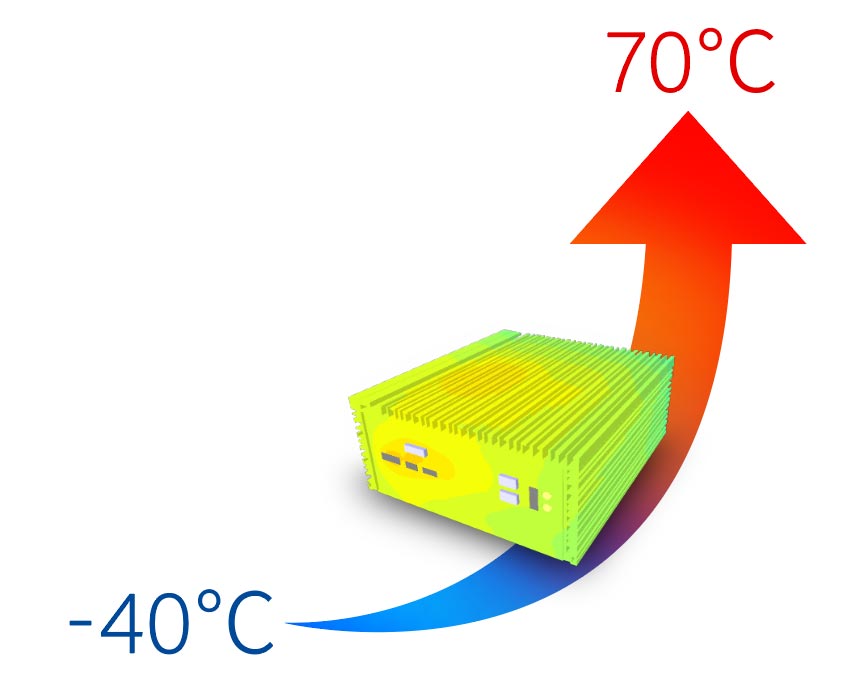

OPERATING TEMPERATURE |
35W TDP Processor: -40°C to 70°C / 65W TDP Processor: -40°C to 50°C / with 0.7m/s Air Flow and Wide Temperature Memory/Storage |
| |
STORAGE TEMPERATURE |
-40 ~ 85°C (-40 ~185°F) |
| |
OPERATING HUMIDITY |
10% ~ 90% R/H (Non-condensing) |
| |
STORAGE HUMIDITY |
10% ~ 95% @85°C non-condensing |
| |
VIBRATION RESISTANCE |
Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) |
| |
SHOCK RESISTANCE |
Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| |
CERTIFICATION |
CE / FCC Class A / LVD CoC: EN62368-1 / *E13-Mark/EN50155/EN50121/EN45545-2 by request |
| MECHANICAL |
|

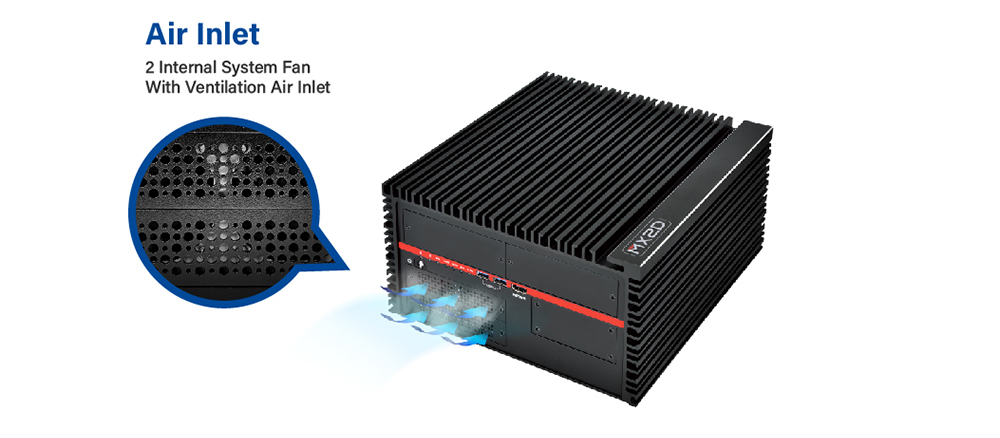

THERMAL DESIGN |

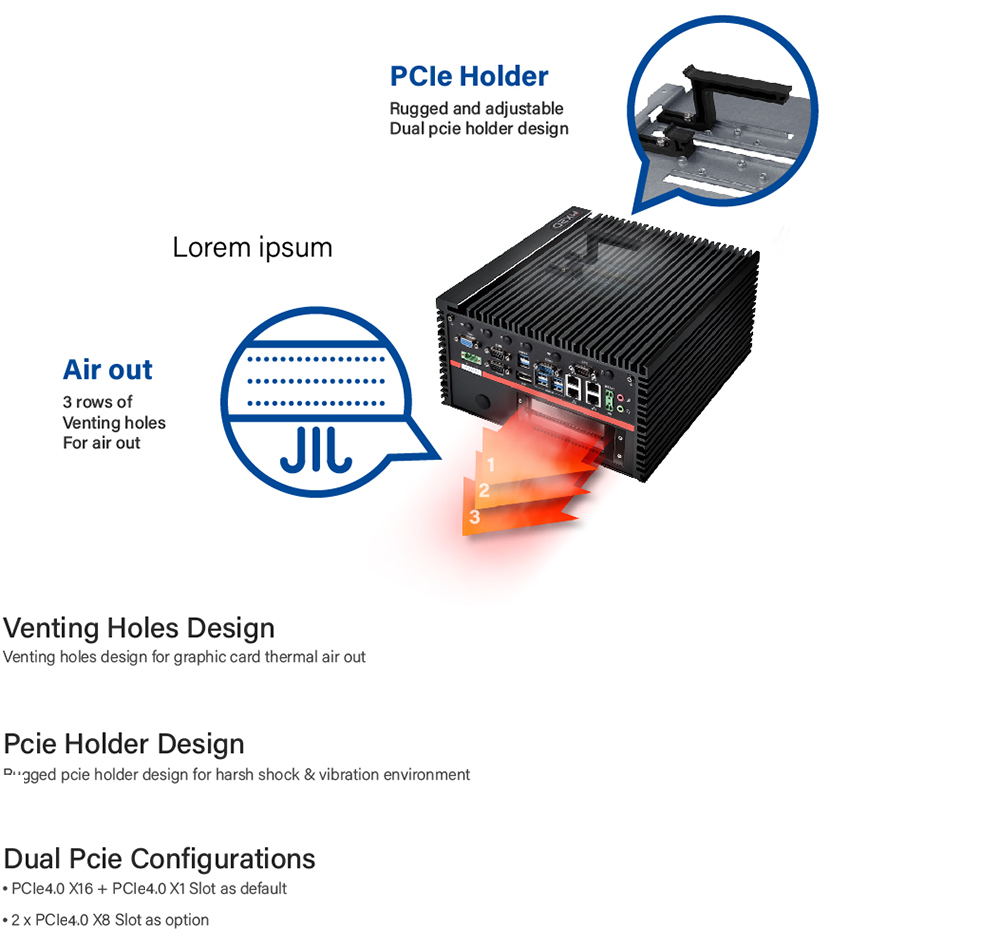

Fanless w/o Venting Holes / Options with 2 x Internal 40x40x20 System Fan (Supporting NVIDIA RTX A2000/RTX 4060 Graphic Cards) |
| |
MOUNTING |
Wallmount |
| |

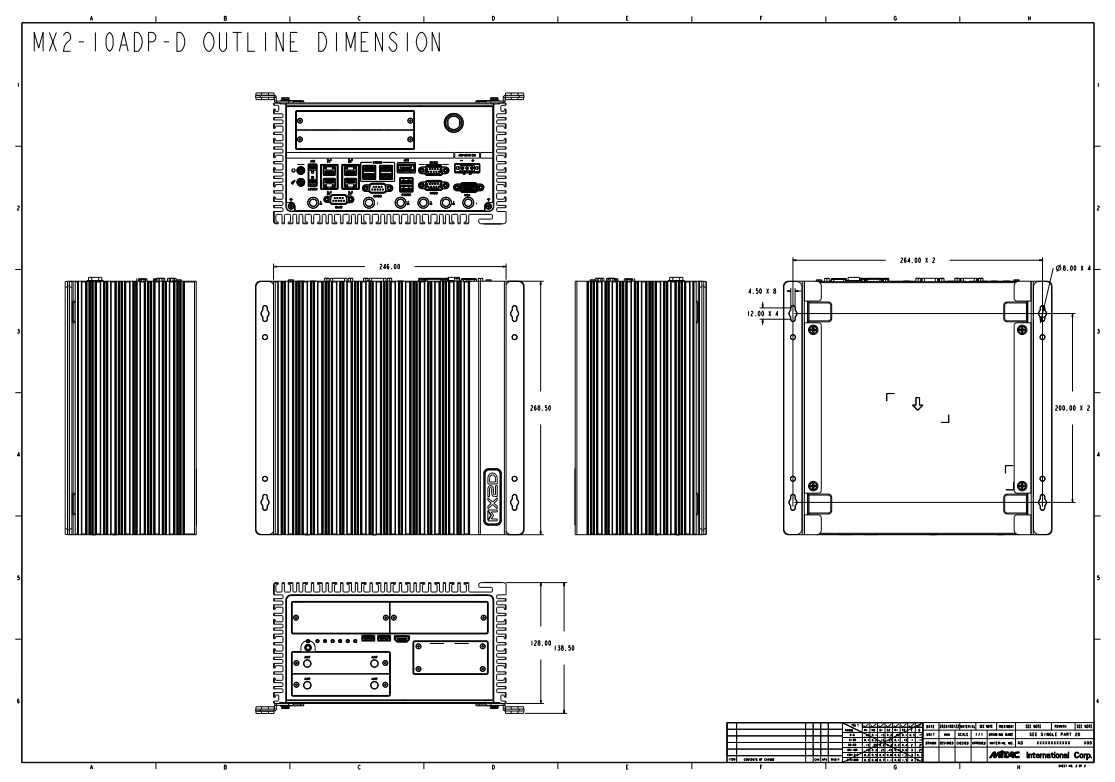

DIMENSIONS (W X D X H) |
10.6” x 9.7” x 5.0” (268 x 246 x 128 mm) |
| |
WEIGHT |
7.7kg (17 lb) |
| OS |
|
OS SUPPORT |
Linux (support by request) / Windows® 10 64-bit / Windows® 11 64bit, |
| PACKING LIST |
|
PACKAGE |
1 x Quick Installation Guide / 1 x Embedded System / 1 x CPU Cooler (passive) / 1 x Wall Mount Brackets
/ 1 x 3 pin Terminal Block Power Connector / 2 x 2 pin Terminal Block Male Connector
/ 1 x 30 cm SATA & SATA PWR Y Cable (3rd SSD/HDD needs optional SATA Y cable) |
