www

MRC-1002-T

Write a Review
$773.08
SKU:
2674
MPN:
MRC-1002-T
Availability:
AVAILABLE: 6~10 week lead time
Weight:
1.54 LBS
Current Stock:
Request a Quote

Frequently Bought Together:

Moxa MRC-1002-T
Inc. Tax
Ex. Tax

Description

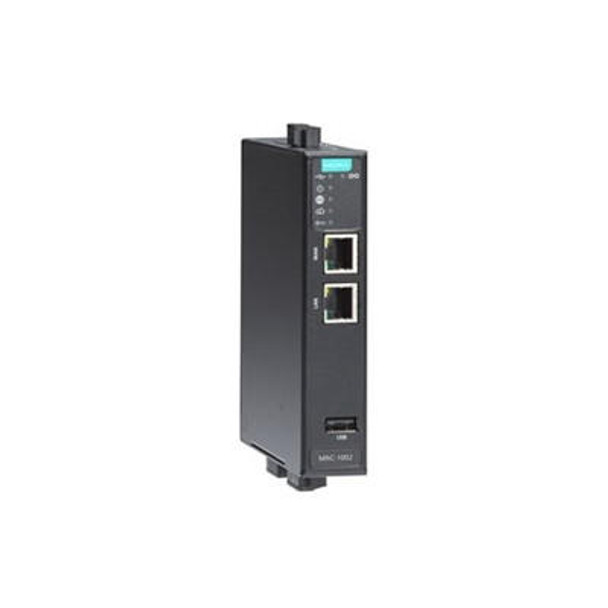

Moxa Remote Connect gateway with 2 Ethernet ports, -40 to 75C

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
Cellular Interface

  • Band Options (US)

    • LTE Band B2 (1900 MHz) / LTE Band B4 (AWS MHz) / LTE Band B5 (850 MHz) / LTE Band B13 (700 MHz) / LTE Band B17 (700 MHz) / LTE Band B25 (1900 MHz)
      UMTS/HSPA 2100 MHz / 1900 MHz / AWS MHz / 850 MHz / 900 MHz
      Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz

  • Band Options (EU)

    • LTE Band 20 (800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 3 (1800 MHz) / LTE Band 1 (2100 MHz) / LTE Band 7 (2600 MHz)
      UMTS/HSPA 5 (850 MHz) / LTE Band 8 (900 MHz)

  • Band Option (APAC)

    • LTE Band 19 (850 MHz) / LTE Band 6 (850 MHz) / LTE Band 6 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 3 (1800 MHz) / LTE Band 1 (2100 MHz)
      UMTS/HSPA 850 MHz / 850 MHz / 900 MHz / 2100 MHz

  • HSPA Data Rates

    • 42 Mbps DL, 5.76 Mbps UL (Category 24, 6)

  • GPRS Data Rates

    • 85.6 kbps DL, 42.8 kbps UL

  • EDGE Data Rates

    • 237 kbps DL, 237 kbps UL (Category 10, 12)

  • Antenna Connectors

    • 2 SMA connector(s)
LED Interface

  • LED Indicators

    • USB, Power, Internet, Cloud, Key, Cellular Signal, Chain
USB Interface

  • USB Standards

    • USB 2.0
Input/Output Interface

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Relays

  • Contact Current Rating

    • 1 A @ 24 VDC
System Power Parameters

  • Input Current

    • 0.62 A @ 12 VDC

  • Input Voltage

    • 12 to 36 VDC

  • Power Consumption

    • 7.44 W
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)

  • Weight

    • Packaged: 700 g (1.54 lb)
Standards and Certifications

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMC

    • EN 61000-6-2/-6-4, EN301489-1-52, EN 55032/35

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Safety

    • EN 61010-2-201

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Vibration

    • IEC 60068-2-6

  • Radio

    • RED, TELEC
MTBF

  • Time

    • 954,531 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
MRC Server Software

  • Amazon AWS EC2

    • Supports Amazon AWS EC2 service (can be downloaded from AWS Marketplace)

  • Licensing

    • Apply for an MRC Server License from Moxa’s channels before activating your software portal
MRC Client Software

  • Operating System

    • Windows 7/10 (32-bit or 64-bit)

Warranty

5 years
