| SYSTEM |
|
CPU |
Intel® Meteor Lake U Core™ Ultra 7 155U / Ultra 5 125U Processor |
| |
CHIPSET |
Intel® SoC Integrated |
| |
SYSTEM MEMORY |
DDR5 5600 MHz / 1 x 262-pin SO-DIMM / Max. 48GB (Non-ECC) |
| |
GRAPHICS |
Intel® Iris Xe Graphics |
| |

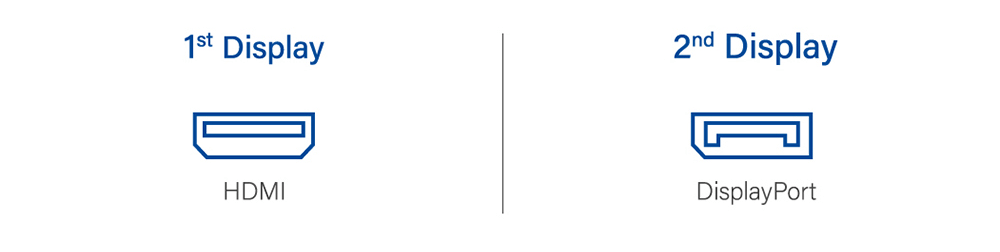

DISPLAY INTERFACE |
DisplayPort 1.2 / HDMI 1.4 |
| |
STORAGE SLOT |
1 x 2.5" HDD/SSD bracket / 1 x M.2 B Key 2242 SATA SSD Slot / 1 x M.2 M Key 2280 NVMe/SATA SSD Slot |
| |
ETHERNET |

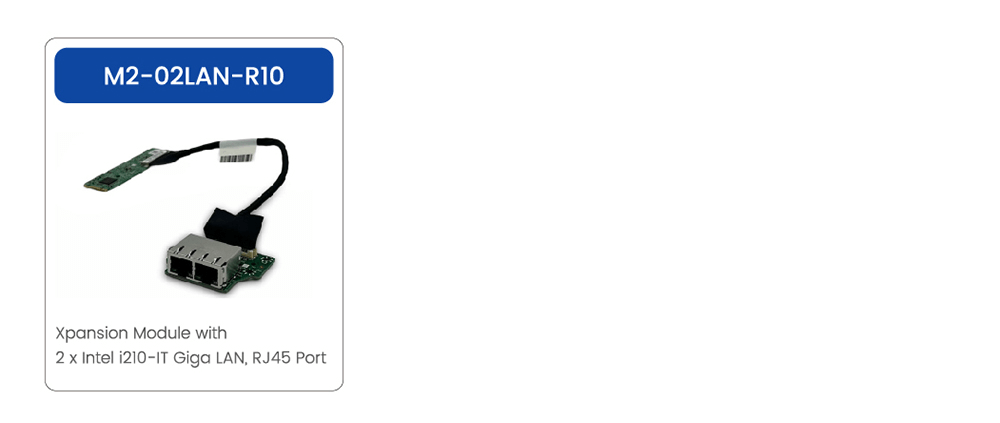

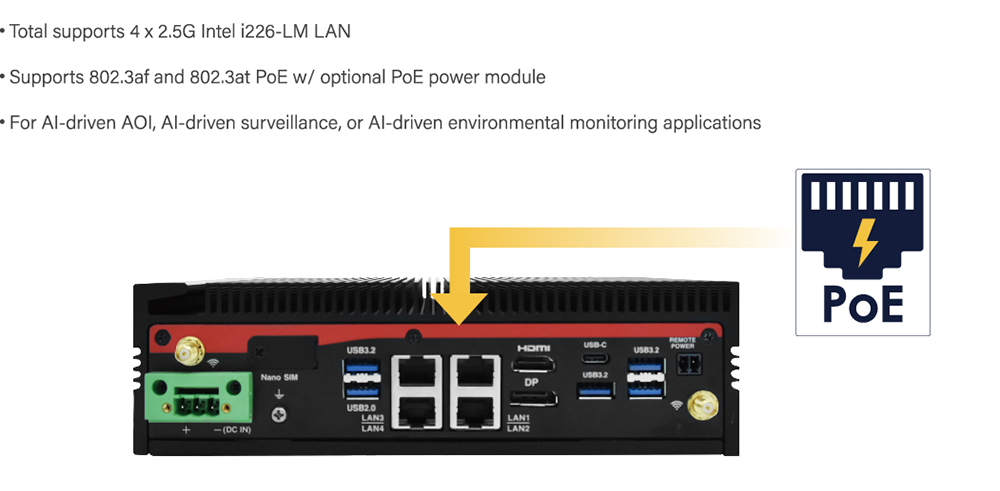

4 x Intel® I226-LM 2.5G LAN (Optional PoE Module) / Additional 2 x Intel® I210-IT Giga LAN for Options |
| |
AUDIO |
Realtek® ALC888S |
| |
I/O CHIPSET |
Nuvoton NCT6126D(eSPI) |
| |
TPM |
Nuvoton NPCT760AABYX TPM2.0 |
| |

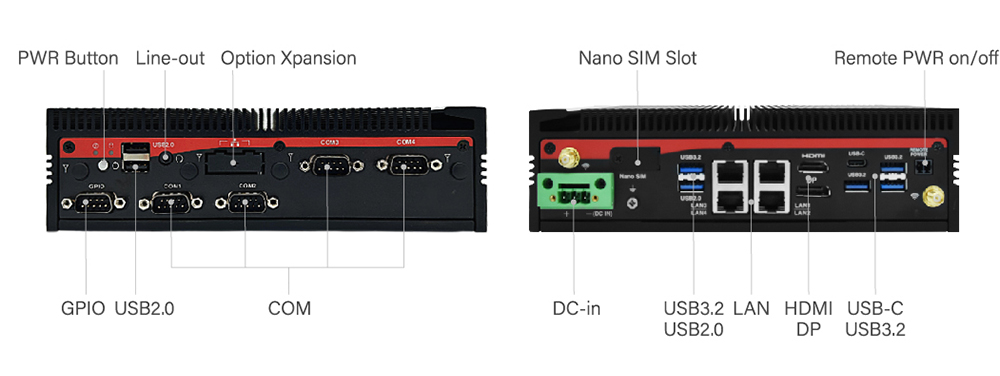

FRONT I/O |
2 x SMA Antenna (Optional for WiFi/LTE function) / 3 x RS232 / 8-bit GPIO in DB9 type / 2 x USB 2.0
/ 1 x RS232 / 422 / 485
/ 1 x Line-out
/ HDD LED
/ Power Button w/ Power Indicator |
| |
REAR I/O |
1 x USB Type C (Support PD15W, 5V/3A, DP Alt mode, USB3.2 Gen1) / 4 x RJ-45 / 1 x Nano SIM slot with cover / 1 x USB 2.0 (integrated in the same blue type connector) / 1 x HDMI 1.4
/ 1 x DisplayPort 1.2
/ 4 x USB 3.2 Gen 2 (10 Gbps)
/ 1 x 3-pin Terminal Block Power Input
/ 1 x 2-pin Terminal Block Remote Power on / off
/ 2 x SMA Antenna (Optional for WiFi/LTE function) |
| |
EXPANSION SLOT |
Storage/LTE/5G Slot: 1 x M.2 2242/3042/3052 B Key (USB2.0/PCIeX1/SATAIII) / 1x M.2 2280 M key (PCIe4.0 X4, SATAIII) / Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0) |
| |
INDICATOR |
Power LED / HDD LED |
| |
H/W MONITOR |
Temperature Monitor / Voltage Monitor |
| |
WATCHDOG TIMER |
1~255 steps by software program |
| |
EDGE AI ENGINE (Optional) |
Hailo-8™ M.2 2280 M key |
| POWER REQUIREMENT |
|
POWER INPUT |
8~26V Wide Range DC Input w/ Terminal Block Connectivity |
| |
POWER ADAPTER |
DC24V / 3A / AC / DC / 72W adapter (For AC SKU) |
| MECHANICAL |
|
THERMAL DESIGN |
Fanless |
| |
MOUNTING |

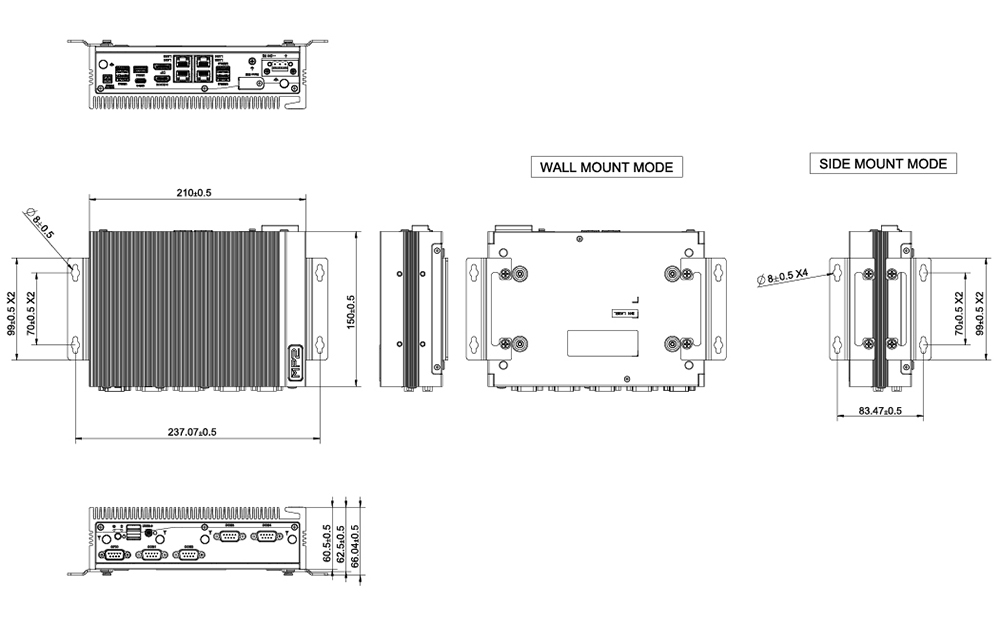

Wallmount / Side Mount / 75 mm x 75 mm VESA Holes & Din Rail Mount Combo Kit (Optional) |
| |
DIMENSIONS (W X D X H) |
8.3” x 5.9” x 2.5” (210 x 150 x 63 mm) |
| |
WEIGHT |
2.1kg (4.6 lb) |
| |
MATERIAL |
Top cover: Aluminum Alloy / Bezel and chassis: Steel |
| ENVIRONMENTAL |
|

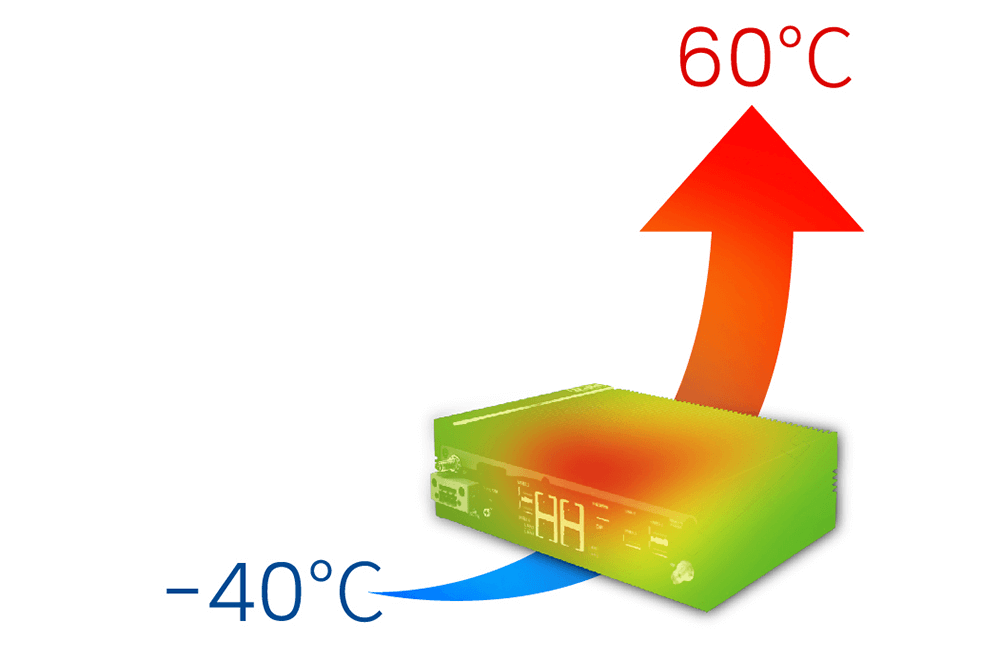

OPERATING TEMPERATURE |
-40°C to 60°C / with 0.7m/s Air Flow and Wide Temperature Memory/Storage |
| |
STORAGE TEMPERATURE |
-40 ~ 85°C (-40 ~185°F) |
| |
OPERATING HUMIDITY |
10% ~ 95% R/H (Non-condensing) |
| |

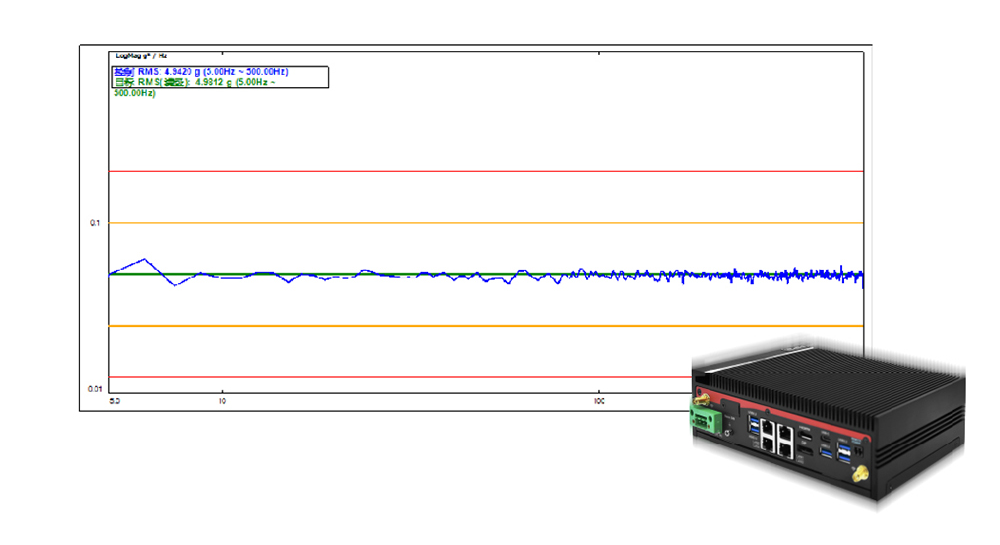

VIBRATION RESISTANCE |
Operating: 5Hz~500Hz / 2Grms / 3Axis (w/ SSD, according to IEC60068-2-64) |
| |
SHOCK RESISTANCE |
Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| |
CERTIFICATION |
CE / FCC Class A / LVD CoC: EN62368-1 / *E13-Mark/EN50155/EN50121/EN45545-2 by request |
| OS |
|
OS SUPPORT |
Linux (support by request) / Windows® 10 64-bit / Windows® 11 64bit, |
| PACKING LIST |
|
PACKAGE |
1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets
/ 1 x 3 pin Terminal Block Power Connector / 1 x 2 pin Terminal Block Male Connector |
