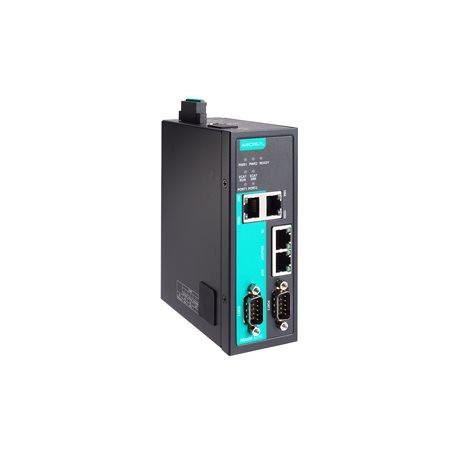

2-port serial/Modbus-to-EtherCAT gateway with 0 to 60°C operating temperature
Ethernet Interface
-
10/100BaseT(X) Ports (RJ45 connector)
- 2
Auto MDI/MDI-X connection
-
Magnetic Isolation Protection
Ethernet Software Features
-
Industrial Protocols
-
Configuration Options
- Web Console (HTTP/HTTPS)
Device Search Utility (DSU)
-
Management
- ARP
DHCP Client
DNS
HTTP
HTTPS
SMTP
SNMP Trap
SNMPv1/v2c/v3
TCP/IP
Telnet
UDP
-
MIB
-
Time Management
Serial Interface
-
No. of Ports
-
Connector
-
Console Port
- RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
-
Serial Standards
-
Baudrate
-
Data Bits
-
Parity
-
Stop Bits
-
Flow Control
- RTS Toggle (RS-232 only)
RTS/CTS
-
RS-485 Data Direction Control
- Automatic Data Direction Control (ADDC)
-
Pull High/Low Resistor for RS-485
- 1 kilo-ohm, 150 kilo-ohms
-
Terminator for RS-485
-
Isolation
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
-
RS-485-2w
-
RS-485-4w
Serial Software Features
-
Configuration Options
-
Industrial Protocols
Modbus RTU/ASCII
-
Mode
-
Functions Supported
- 1, 2, 3, 4, 5, 6, 15, 16, 23
-
Max. No. of Commands
-
Total Input Data Size
-
Total Output Data Size
MicroPython
-
Version
-
Functions Supported
-
Max. No. of Commands
-
Total Input Data Size
-
Total Output Data Size
EtherCAT
-
Mode
-
Baudrate
-
FMMU
-
Sync Manager
-
Total Input Data Size
-
Total Output Data Size
Memory
-
microSD Slot
- Up to 32 GB (SD 2.0 compatible)
Power Parameters
-
Input Voltage
-
Input Current
-
Power Connector
- Spring-type Euroblock terminal
Relays
-
Contact Current Rating
- Resistive load: 2 A @ 30 VDC
Physical Characteristics
-
Housing
-
IP Rating
-
Dimensions (without ears)
- 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)
-
Weight
Environmental Limits
-
Operating Temperature
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
-
Safety
-
Freefall
-
Shock
-
Vibration
- IEC 60068-2-6
IEC 60068-2-64
