| SYSTEM |
|
PROCESSOR |
Intel® Twin Lake N150(4C), and Core™ i3-N355(8C8T) Processor |
| |
CHIPSET |
Intel® SoC Integrated |
| |

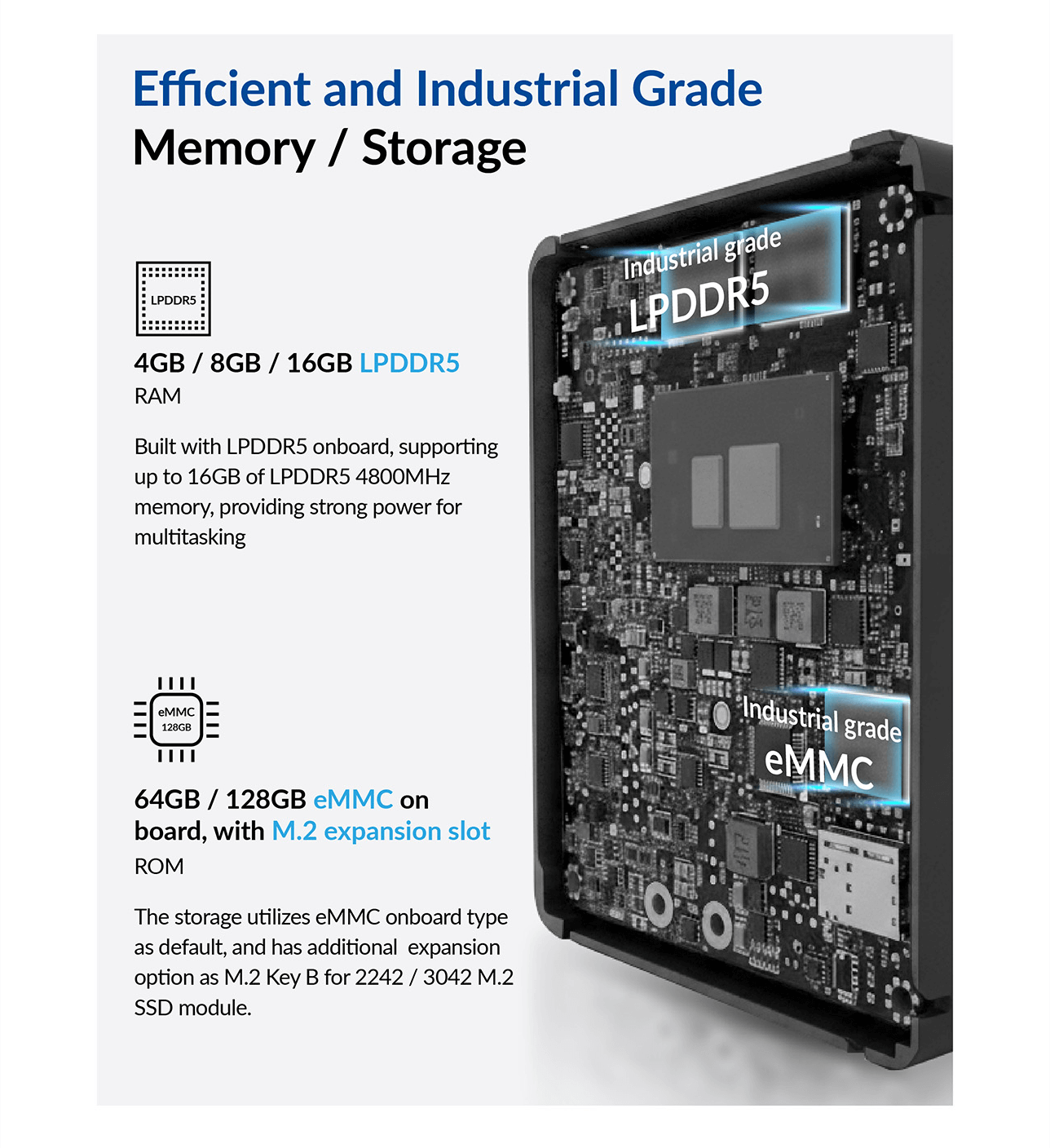

SYSTEM MEMORY |
Indsutrial grade LPDDR5 4800MHz onboard type(4GB, 8GB, 16GB), 8533MB/s |
| |
GRAPHICS |
Intel® UHD Graphics |
| |
STORAGE |
1 x Industrial grade eMMC (64GB/128GB), 400MB/s |
| |
DISPLAY INTERFACE |

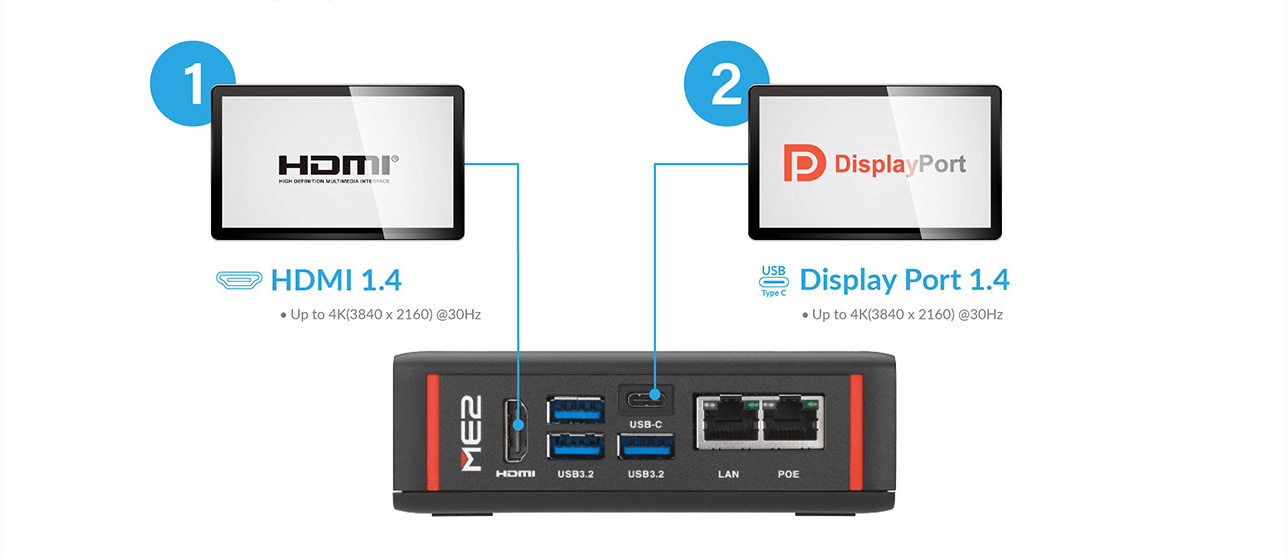

USB type C (DP 1.2) / HDMI 1.4 |
| |
ETHERNET |

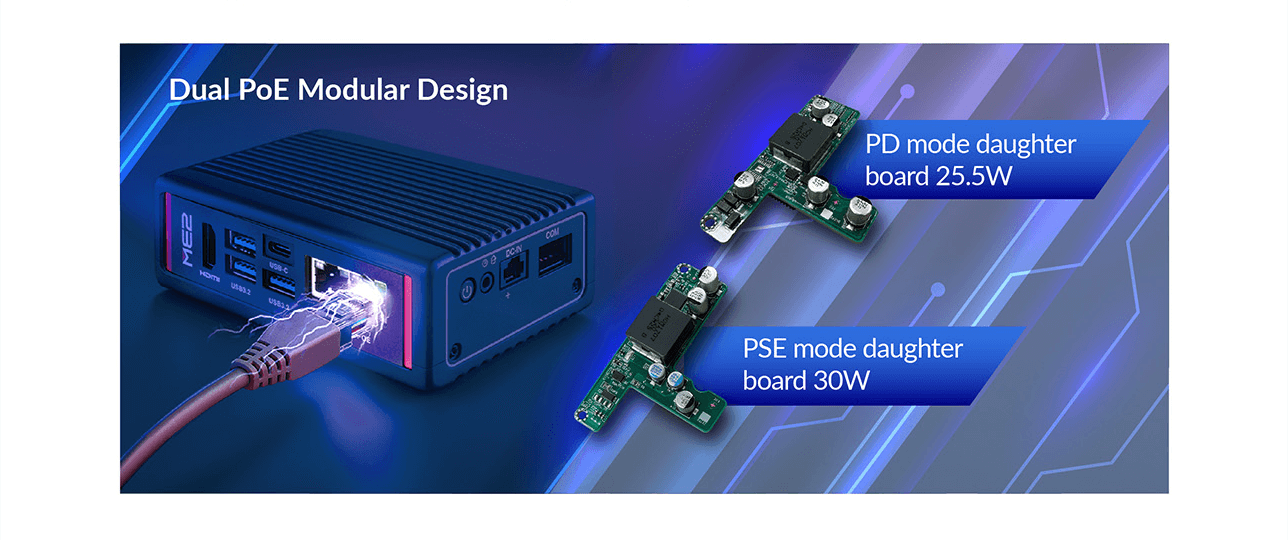

2 x Realtek RTL8111H-CG 1GbE, Option: 1x supports 802.3af and 802.3at PoE LAN(PD-Max: 25.5W, PSE-Max: 35W) |
| |
I/O CHIPSET |
Nuvoton NCT5225D |
| |
TPM |
Nuvoton NPCT760AABYX TPM2.0 |
| |

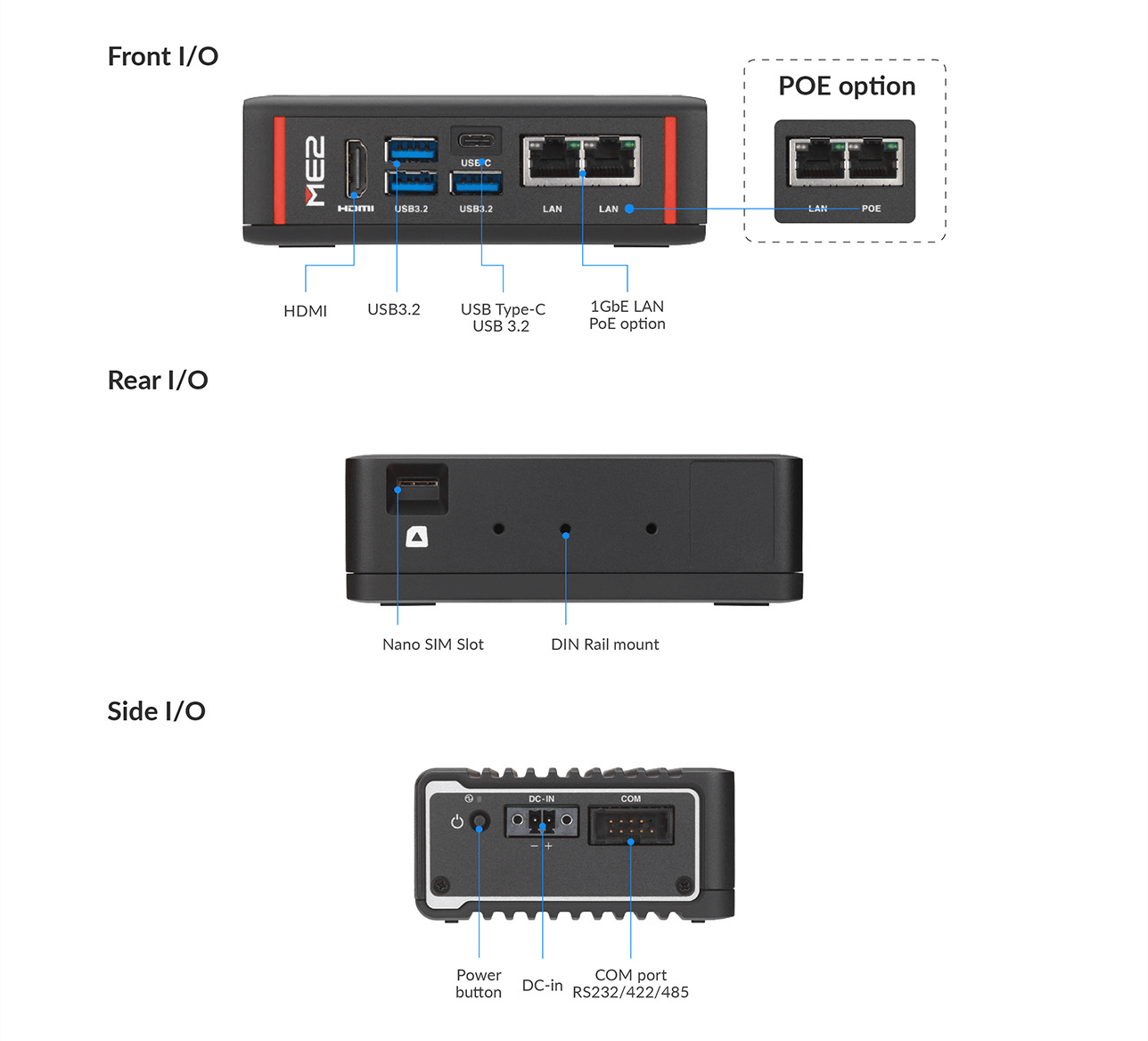

FRONT I/O |
3 x USB 3.2 Gen2 / 1 x USB 3.2 type C (Support display(5V/3A) and audio) / 2x RJ45 (1x POE option for PD mode or PSE mode) / 1 x HDMI 1.4 (Vertical) |
| |
LEFT SIDE I/O |
1 x Power button / 1 x Terminal block 2pin with locked / 1x 5Px2 NP9 header as RS232/422/485 |
| |
REAR SIDE I/O |
1x SIM slot hole for Nano SIM card / 2 x DIN rail hole |
| |
EXPANSION SLOT |
M.2 2242 / 3042 B key ( USB2.0, SATAIII, PCIex1) with nano SIM slot /M.2 2230 E key (PCIex1, USB2.0) |
| |
WATCHDOG TIMER |
1~255 steps by software program |
| POWER REQUIREMENT |
|
POWER INPUT |
DC-in 8~26V (Default ATX mode, AT/ATX adjusting by BIOS) |
| |
POWER ADAPTER |
Optional DC12V / 5A / AC / DC / 60W adapter (For AC SKU) |
| MECHANICAL |
|
ANTENNA |
4 x SMA Antenna (Optional for WiFi / LTE function) |
| |
THERMAL DESIGN |
Fanless |
| |
MOUNTING |

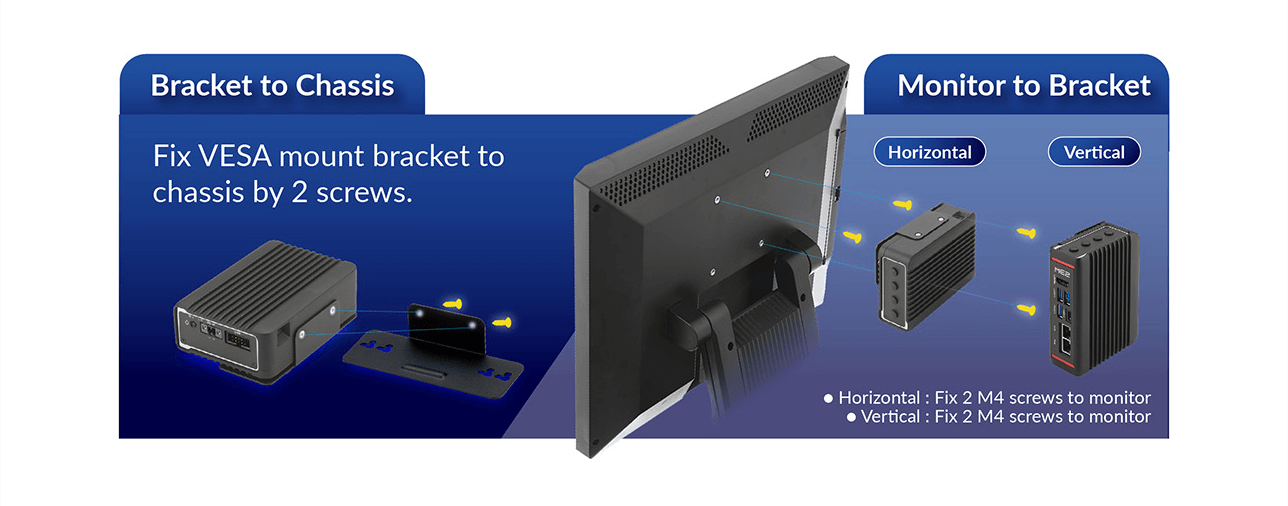

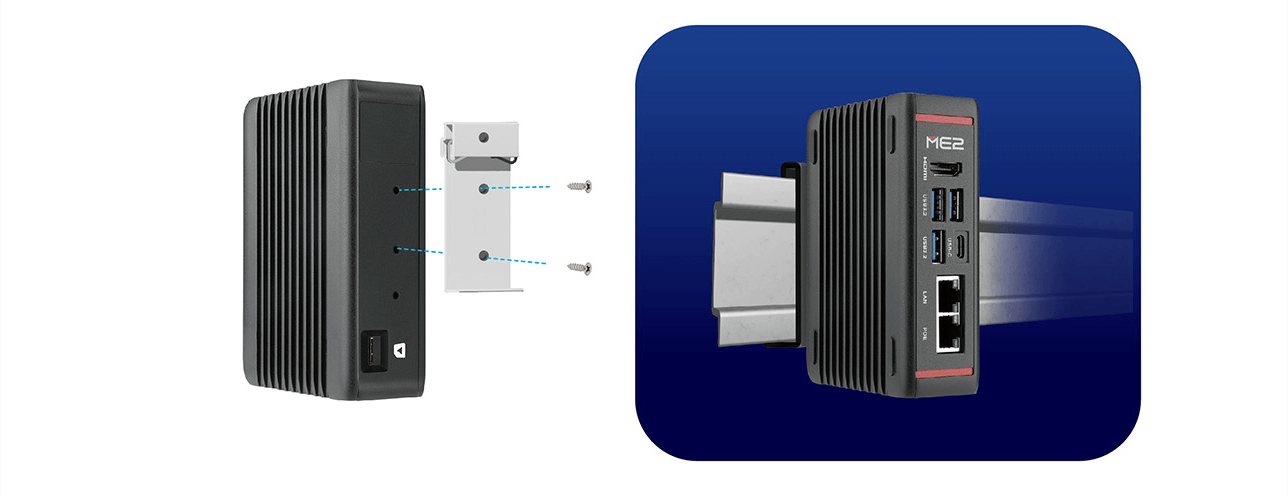

Din Rail Mount, VESA Mount (75 x 75mm) for option |
| |
DIMENSIONS (W X D X H) |

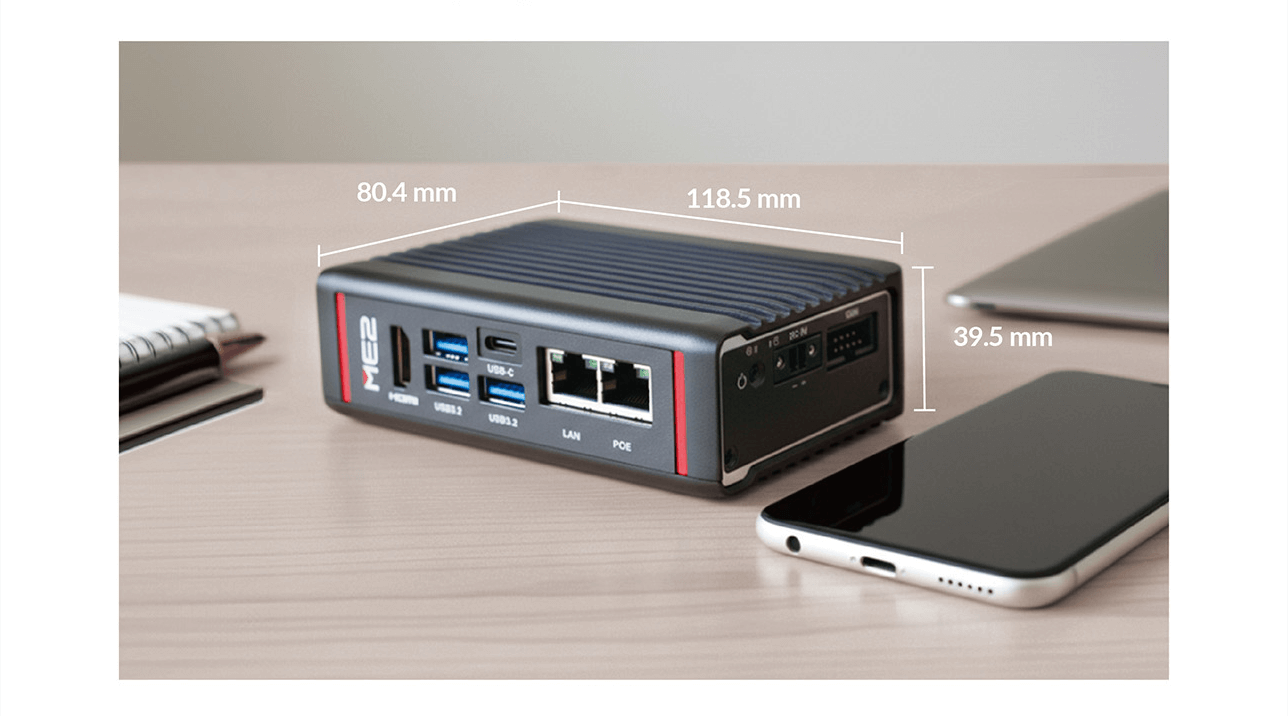

118.5 x 80.4 x 39.5mm |
| |
MATERIAL |
Enclosure: Die Casting |
| ENVIRONMENTAL |
|
OPERATING TEMPERATURE |

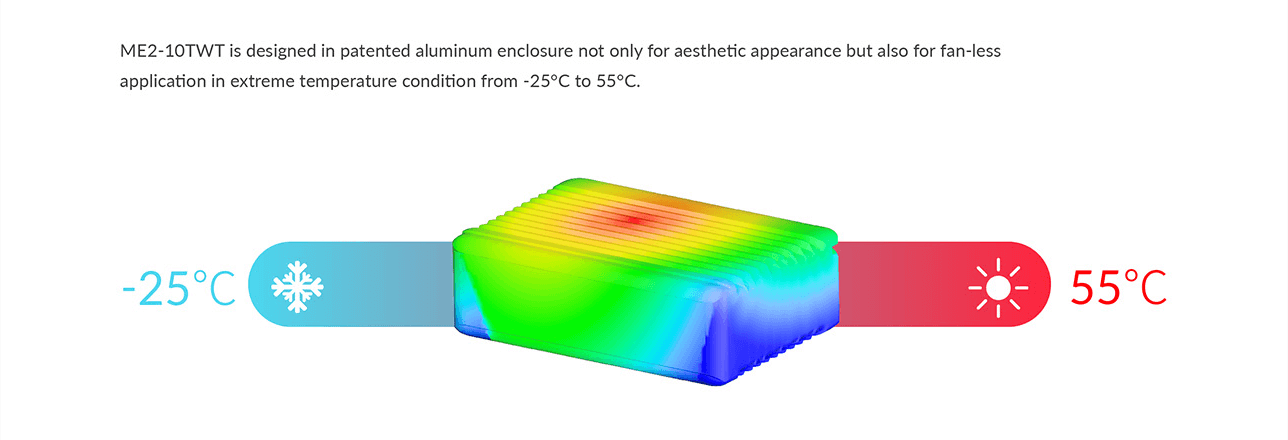

-25 ~ 55°C with 0.7m/s Air Flow (w/ Wide Temp. SSD/RAM)
* For with PSE SKUs: -25 ~ 35°C with 0.7m/s Air Flow (w/ Wide Temp. SSD/RAM) |
| |
STORAGE TEMPERATURE |
-40 ~ 85°C (-40 ~185°F) |
| |
OPERATING HUMIDITY |
10% ~ 95% R/H (Non-condensing) |
| |

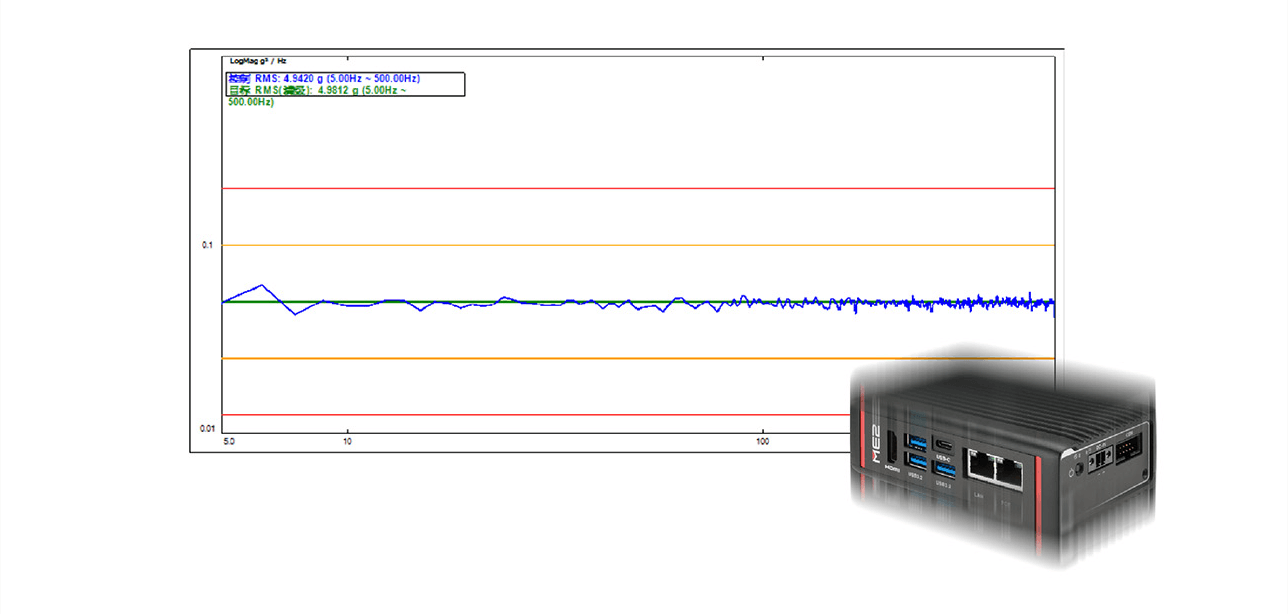

VIBRATION RESISTANCE |
Operating: 5Hz~500Hz / 2Grms / 3Axis (w/ SSD, according to IEC60068-2-64) |
| |
SHOCK RESISTANCE |
Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| |
CERTIFICATION |
CE / FCC Class B |
| OS |
|
OS SUPPORT |
Windows® 11 64-bit / Windows® 10 64-bit / Ubuntu 24.04 / Linux (support by request) |

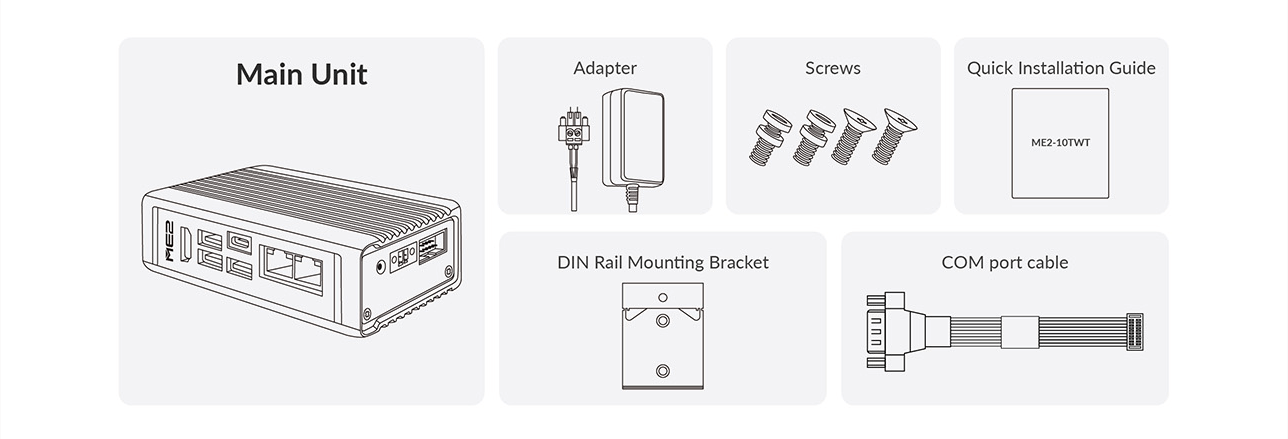

| PACKING LIST |
|
PACKAGE |
1 x Quick Installation Guide / 1 x Embedded System / 1 x Screws kit / 1 x DIN-Rail Mount Bracket / 1x VESA Mount Bracket (BOM option) / 1 x COM port cable / 1 x AC Adapter + US & EU power cord |
