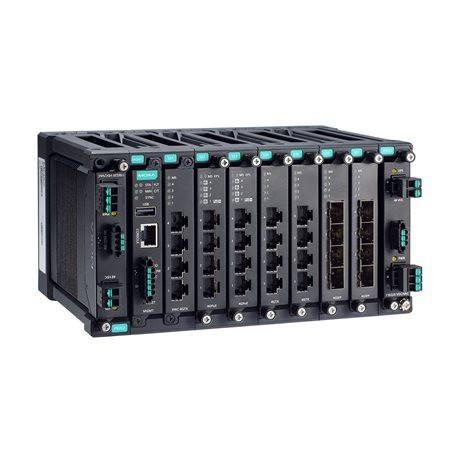

Layer 3 full Gigabit modular managed Ethernet switch with 4 fixed Gigabit Ethernet ports, 6 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 28 Gigabit Ethernet ports, -10 to 60°C operating temperature
Ethernet Interface
-
Pre-installed Modules
-
Module
- 6 slots for optional FE/GE modules
-
Slot Combination
- See the LM-7000H module series datasheet for more information.
Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.
LM-7000H non-PoE modules:
Any power module
LM-7000H PoE modules:
PWR-HV-P48, PWR-LV-P48 only
-
Standards
- IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication
Ethernet Software Features
-
Management
- IPv4
Flow control
Back Pressure Flow Control
ARP
DHCP Relay Agent (Option 82)
Fiber check
Port Mirroring (SPAN, RSPAN)
RARP
LLDP
Linkup Delay
SMTP
SNMP Trap
SNMP Inform
SNMPv1/v2c/v3
RMON
TFTP
SFTP
HTTP
HTTPS
Telnet
Syslog
Private MIB
Loopback interface
-
Filter
- GMRP
GVRP
GARP
802.1Q VLAN
IGMP Snooping v1/v2/v3
IGMP Querier
-
Redundancy Protocols
- Link Aggregation
MRP
MRP Interconnection
MSTP
Multiple Dual Homing
Multiple Network Coupling
Network Loop Protection
Ring Coupling
RSTP
STP
Tracking
Turbo Chain
Turbo Ring v2
-
Routing Redundancy
-
Security
- Access control list
Broadcast storm protection
DHCP Snooping
Dynamic ARP Inspection
HTTPS/SSL
IEEE 802.1AE MAC security
IP Source Guard
Login and Password Policy
MAC authentication bypass
MAC Sticky
RADIUS
Rate Limit
SSH
Static Port Lock
TACACS+
Trust access control
-
Time Management
- SNTP
IEEE 1588v2 PTP (hardware-based)
Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
NTP Authentication
NTP Server/Client
-
Protocols
- 802.1X
ARP
DNS
HTTP
HTTPS
ICMP
IPv4
NTP Client
QoS
RARP
RMON
SMTP
SNMPv1/v2c/v3
Syslog
TCP/IP
Telnet
TFTP
UDP
VLAN Assignment
-
Industrial Protocols
- EtherNet/IP
Modbus TCP
PROFINET
-
Unicast Routing
-
Multicast Routing
- Multicast Local Route
PIM-DM
PIM-SM
-
MIB
- P-BRIDGE MIB
Q-BRIDGE MIB
IEEE8021-SPANNING-TREE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
SNMPv2-MIB
RMON MIB Groups 1, 2, 3, 9
-
Power Substation
- 1588 PTP Power Profile C37.238-2017
1588 PTP Power Profile IEC 61850-9-3
GOOSE Check
MMS
Switch Properties
-
Jumbo Frame Size
-
MAC Table Size
-
Max. No. of VLANs
-
VLAN ID Range
-
IGMP Groups
-
Priority Queues
-
Packet Buffer Size
LED Interface
-
LED Indicators
- PWR, EPS, STATE, SYNC, FAULT, MSTR/HEAD, CPLR/TAIL
Input/Output Interface
-
Digital Input Channels
-
Digital Inputs
- +13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
-
Alarm Contact Channels
- 3 (On MGMT, PWR1, PWR2 Module)
Relay output with current carrying capacity of 2 A @ 30 VDC
-
Buttons
Power Parameters
-
Input Voltage
- With PWR-HV-P48 installed:
110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC
With PWR-LV-P48 installed:
24/48 VDC, PoE: 48 VDC
With PWR-HV-NP installed:
110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz
With PWR-LV-NP installed:
24/48 VDC
-
Operating Voltage
- With PWR-HV-P48 installed:
88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC
With PWR-LV-P48 installed:
18 to 72 VDC (24/48 VDC for hazardous location), PoE: 46 to 57 VDC (48 VDC for hazardous location)
With PWR-HV-NP installed:
88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz
With PWR-LV-NP installed:
18 to 72 VDC
-
Input Current
- With PWR-HV-P48/PWR-HV-NP installed:
Max. 0.30 A @ 110 VDC
Max. 0.15 A @ 220 VDC
Max. 0.60 A @ 110 VAC
Max. 0.40 A @ 220 VAC
With PWR-LV-P48/PWR-LV-NP installed:
Max. 1.5 A @ 24 VDC
Max. 0.75 A @ 48 VDC
EPS (PoE models only):
Max. 8.2 A @ 48 VDC
Note: These are the input current ratings for the device with the maximum number of modules installed.
-
Power Consumption (Max.)
- With PWR-HV-P48/PWR-HV-NP installed:
Max. 33.0 W @ 110 VDC
Max. 34.0 W @ 220 VDC
Max. 35.8 W @ 110 VAC
Max. 38.0 W @ 220 VAC
With PWR-LV-P48/PWR-LV-NP installed:
Max. 36.0 W @ 24 VDC
Max. 36.0 W @ 48 VDC
Note: These are the maximum power consumption ratings for the device with the maximum number of modules installed.
-
Max. PoE Power Output per Port
-
Total PoE Power Budget
- Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems
Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems
Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems
Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems
-
Overload Current Protection
-
Reverse Polarity Protection
Physical Characteristics
-
IP Rating
-
Dimensions
- 218 x 115 x 163.25 mm (8.59 x 4.53 x 6.44 in)
-
Weight
-
Installation
- DIN-rail mounting
Wall mounting (with optional kit)
Rack mounting (with optional kit)
Environmental Limits
-
Operating Temperature
- -10 to 60°C (14 to 140°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
Safety
- EN IEC 62368-1
IEC 60950-1
IEC 62368-1
UL 62368-1
-
EMC
- EN 55032/35
EN 61000-6-2/-6-4
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
IEC 61000-4-11 Voltage Dips & Interruptions
-
Railway
-
Traffic Control
-
Shock
-
Freefall
-
Vibration
-
Hazardous Locations
-
Power Substation
MTBF
-
Time
-
Standards
- Telcordia Standard SR-332
