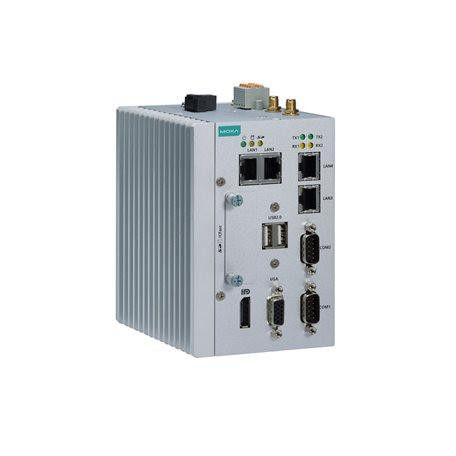

x86 embedded computer with Intel Atom® quad-core E3845 processor, 1 VGA port, 4 GbE ports, 4 serial ports, 4 DIs, 4 DOs, 2 USB ports, 1 CFast slot, 1 uSIM slot, 1 mPCIe slot, 12 to 36 VDC power input, US LTE
Computer
-
Graphics Controller
-
System Memory Pre-installed
-
System Memory Slot
- SODIMM DDR3/DDR3L slots x 1
-
Supported OS
- Windows 10 IoT Enterprise LTSC 2021
Linux Debian 9 (kernel v4.9)
Computer Interface
-
USB 2.0
- USB 2.0 hosts x 2, type-A connectors
-
SIM Format
LED Indicators
-
System
-
LAN
- 2 per port (10/100/1000 Mbps)
-
Serial
Serial Interface
-
Baudrate
-
Connector
-
Data Bits
-
Flow Control
- Automatic Data Direction Control (ADDC) for RS-485
RTS/CTS, XON/XOFF
-
Isolation
-
Parity
- None, Even, Odd, Space, Mark
Power Parameters
-
Input Voltage
-
Power Connector
- Terminal block (for DC models)
-
Power Consumption
Physical Characteristics
-
Housing
-
Installation
- DIN-rail mounting
Wall mounting (with optional kit)
Environmental Limits
-
Operating Temperature
- -40 to 70°C (-40 to 158°F)
-
Storage Temperature (package included)
- -45 to 75°C (-49 to 167°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
-
Hazardous Locations
- All models excluding MC-1121-E4-T-US:
ATEX Zone 2
IECEx Zone 2
Class I Division 2
-
Maritime
-
Radio Frequency
-
Safety
