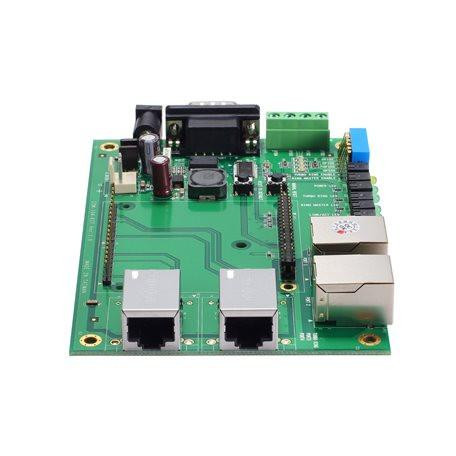

Includes a EOM-104 switch module and a evaluation board with 4 10/100BaseT(X) ports for testing and application development
Ethernet Interface
-
Standards
- IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
-
10/100BaseT(X) Port
-
Connector
- 1 connector with 2 x 20 pins, 2 connectors with 1 x 9 pins, and 1 connector with 2 x 2 pins
-
GPIO
- 4 x Programmable I/O pins
Ethernet Software Features
-
Protocols
- BOOTP, DHCP Client, HTTP, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
-
MIB
- Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Switch Properties
-
MAC Table Size
-
Packet Buffer Size
Serial Interface
-
Console Port
- RS-232 (TxD, RxD, DTR, DSR)
Physical Characteristics
-
Dimensions
- 54 x 60 x 8.25 mm (2.13 x 2.36 x 0.32 in)
-
Weight
Environmental Limits
-
Operating Temperature
- -40 to 75°C (-40 to 167°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
