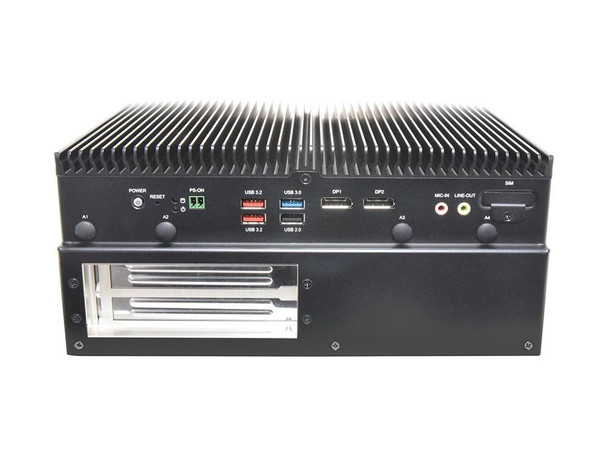

EAI-I510

AI Inference System Powered by Intel® Core™ Ultra Processors (Series 2) (Arrow Lake H)

Write a Review
  • Intel® Core™ Ultra Processors (Series 2) (Arrow Lake H)
  • DDR5 6400Mhz Memory Up to 96GB
  • 2x 2.5GbE RJ45, 2x 10GbE RJ45
  • 2x DB9 RS-232/422/485, 4x USB Type A, 2x DP 1.2, Mic-in & Line-out, 4x DI & 4x DO
  • 1x M.2 2230 E-Key for WiFi 6/6E, 1x M.2 3042/3052 B-Key for LTE/5G, 1x Nano-SIM
  • Operating temperature 0°C ~ 40°C for commercial appliances
Request a Quote

Datasheet

User Manual

Frequently Bought Together:

Inc. undefined
Ex. undefined

Overview

The EAI-I510 is a cost-effective embedded system powered by the Intel® Core™ Ultra 9/7/5 Processors (Series 2) (Arrow Lake H). It features DDR5 6400MHz memory, with support for up to 96GB, and operates with a power input range of +24VDC. Designed to function within a temperature range of 0°C to 40°C, the device meets CE/FCC Class A and UL 62368 certifications. Its I/O options include 2x 2.5GbE RJ45, 2x 10GbE RJ45, 2x DB9 RS-232/422/485, 4x USB Type A, 1x DP 1.2, Mic-in & Line-out, and 4x DI & 4x DO.

Platform
CPU Intel® Core™ Ultra 9/7/5 Processors (Series 2) (Arrow Lake H)
SOM TDP Up to 45W/28W
Chipset SoC
BIOS  AMI SPI Flash BIOS
System Memory
Technology DDR5 up to 6400Mhz, non-ECC SODIMM
Max. Capacity 96GB
Ethernet
Interface 2x 2.5GbE RJ45
2x 10GbE RJ45
iAMT  i226-LM (LAN1)
Bypass N/A
I/O Interface
Reset Button 1
Serial  2x DB9 RS-232/422/485 (Console Only supported on COM1)
Display 2x DP 1.2 (1x DP++, 1x DP)
USB  1x USB 2.0, 1x USB 3.0, 2x USB 3.2 (Gen2) Type A
DIO 4x DI & 4x DO
Power Button 1x Power on/off Button
1x 2-pin terminal block (cabling control)
Audio 2x Phone Jack for Mic-in & Line-out
Antenna 6x SMA Antenna for Wifi/ LTE/ 5G modules
Storage
HDD/SSD Support 2x 2.5” SSD
Onboard Slots 1x M.2 2280 M-Key (NvMe)
Expansion
PCIe Slot 2x PCIe x8 Gen3 FHHL Slot
mini-PCIe/M.2 1x M.2 2230 E-Key for WiFi 6/6E w/BT
1x M.2 3042/3052 B-Key for LTE/5G
SIM Card Slot 1x Nano-SIM
1x eSIM (space reserved)
Miscellaneous
Watchdog Yes
Internal RTC with Li Battery Yes
TPM Onboard TPM 2.0
Cooling
Processor Passive CPU Heatsink
System Fan
Environmental Parameters
Temperature 0ºC~40ºC
Humidity (RH) 5~90% Operating
5~95% Non-Operating, non-condensing
System Dimensions
Dimensions(W x D x H) 270 x 188.5 x 119 mm
Weight TBD
Mounting Wall mount/VESA mount(optional)
Power
Type / Watts 24VDC
Input 1x 2-pin Terminal Block +24VDC
Driver Support
OS  Windows10 & 11 (LTSC), Linux Ubuntu
Certification
EMC CE/UKCA, FCC Class A, RoHS
Safety UL+CB 62368-1
SKU CPU Memory Storage Ethernet I/O  Power
EAI-I510A Intel®CoreTM Ultra 9, 285H, 16C, 45W (Series 2) (Arrow Lake H) DDR5 6400Mhz,
up to 96GB		 2x 2.5GbE RJ45
2x 10GbE RJ45		 2x DB9 RS-232/422/485
2x DP 1.2
4x USB Ports
4x DI & 4x DO
Mic-in & Line-out		 2x 2.5” SSD
1x M.2 2280 M-Key (NvME)		 +24VDC
EAI-I510B Intel®CoreTM Ultra 7, 265H, 16C, 28W (Series 2) (Arrow Lake H)
EAI-I510C Intel®CoreTM Ultra 7, 235H, 14C, 28W (Series 2) (Arrow Lake H)
