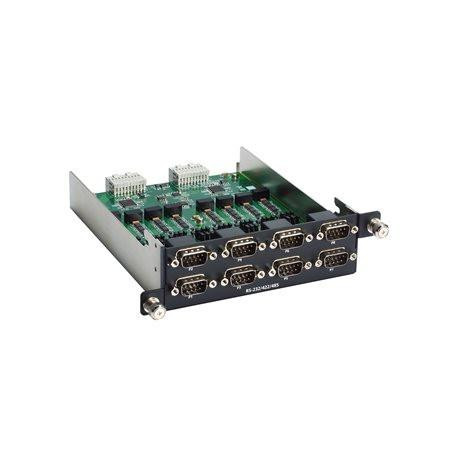

8-port software-selectable RS-232/422/485 PCIe serial module with DB9 connector
Computer
-
System Memory Slot
-
DRAM
- 32 GB max. capacity (SODIMM x 2, each supporting 2133 MHz and 16 GB maximum per module)
-
Graphics Controller
-
Storage Slot
- 2.5-inch HDD/SSD slots x 2
mSATA slots x 1
-
Supported OS
- Windows 10 IoT Enterprise LTSC 2019 (64-bit)
Linux Debian 9
Linux SDK supported:
Debian 12
Ubuntu 22.04 LTS & HWE
RedHat 9
CentOS 7.9
Computer Interface
-
Video Output
- HDMI x 2, HDMI connector (type A)
-
USB 2.0
- USB 2.0 hosts x 3, type-A connectors
2 ports on the front panel, 1 port inside the computer
-
USB 3.0
- USB 3.0 hosts x 3, type-A connectors
3 ports on the rear panel
-
Ethernet Ports
- Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
-
Serial Ports
- RS-232/422/485 ports x 2 (software-selectable, [X2] connector)
LED Indicators
-
System
- Power x 1
Storage x 1
Programmable x 8
-
Serial
-
LAN
- 2 per port (10/100/1000 Mbps)
Serial Interface
-
Baudrate
-
ESD
-
Isolation
-
Serial Standards
-
Surge
-
Connector
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
-
RS-485-2w
-
RS-485-4w
Power Parameters
-
Input Current
- 100 to 240 VDC, 0.9 A (max)
100 to 240 VAC, 50/60 Hz, 0.9 A (max)
-
Power Button
- Reset button (front panel)
ON/OFF (rear panel)
Physical Characteristics
-
Housing
-
Dimensions (without ears)
- 440 x 282 x 88 mm (17.32 x 11.08 x 3.46 in)
-
Weight
-
Installation
Environmental Limits
-
Operating Temperature
- -40 to 70°C (-40 to 158°F)
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8: 300 A/m
IEC 61000-4-11
-
Power Substation
-
Shock
- IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
-
Safety
- UL 60950-1
IEC 60950-1
UL 62368-1
IEC 62368-1
-
Protection Relay
MTBF
-
Time
-
Standards
- Telcordia Standard SR-332
