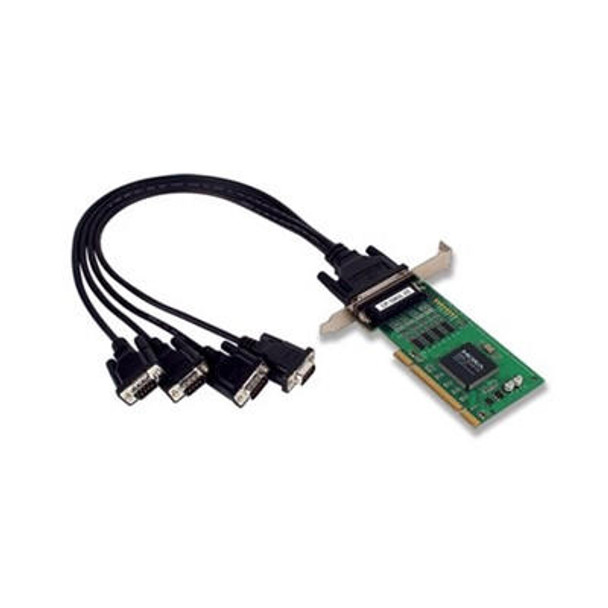

4-port RS-232 low-profile Universal PCI serial board, 0 to 55°C operating temperature (includes DB9 male cable)
Serial Interface
-
Comm. Controller
- MU860 (16C550C compatible)
-
Bus
-
Connector
-
FIFO
-
Max. No. of Boards per PC
-
No. of Ports
-
Serial Standards
-
Baudrate
-
Data Bits
-
Stop Bits
-
Parity
- None, Even, Odd, Space, Mark
-
Flow Control
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Software Features
-
Windows Drivers
- DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
-
Linux Drivers
- Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
-
UNIX Drivers
- QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
Physical Characteristics
-
Dimensions
- 64.4 x 120 mm (2.53 x 4.72 in)
LED Interface
-
LED Indicators
- Built-in Tx, Rx LEDs for each port
Environmental Limits
-
Operating Temperature
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class B
-
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
-
International Approval
MTBF
-
Time
-
Standards
- Telcordia (Bellcore) Standard TR/SR
