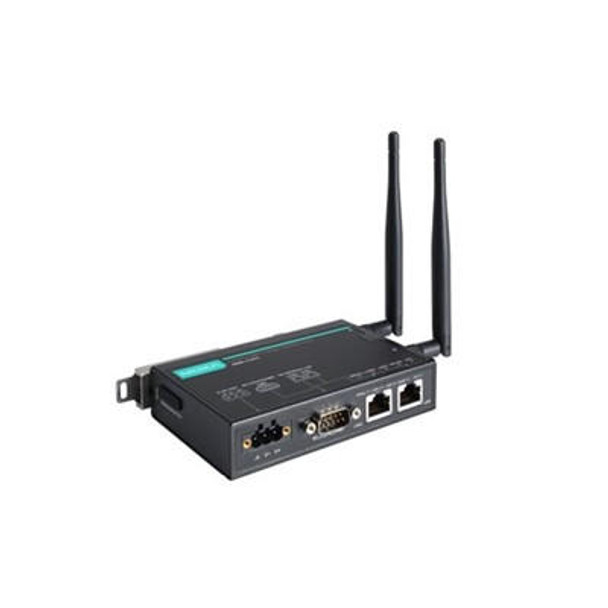

802.11a/b/g/n wireless client, EU band, 0 to 60°C operating temperature
WLAN Interface
-
WLAN Standards
- 802.11a/b/g/n
802.11i Wireless Security
-
Modulation Type
-
Frequency Band for EU (20 MHz operating channels)
- 2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
-
Wireless Security
- WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
-
Transmission Rate
- 802.11b: 1 to 11 Mbps
802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps
-
Transmitter Power for 802.11a
- 23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
-
Transmitter Power for 802.11n (5 GHz)
- 23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
18±1.5 dBm @ MCS7/15 40 MHz
-
Transmitter Power for 802.11b
- 26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps
-
Transmitter Power for 802.11g
- 23±1.5 dBm @ 6 to 24 Mbps
22±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
19±1.5 dBm @ 54 Mbps
-
Transmitter Power for 802.11n (2.4 GHz)
- 23±1.5 dBm @ MCS0/8 20 MHz
17±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz
-
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
- Typ. -90 @ 6 Mbps
Typ. -88 @ 9 Mbps
Typ. -87 @ 12 Mbps
Typ. -85 @ 18 Mbps
Typ. -81 @ 24 Mbps
Typ. -78 @ 36 Mbps
Typ. -74 @ 48 Mbps
Typ. -73 @ 54 Mbps
Note
-
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
- Typ. -69 dBm @ MCS7 20 MHz
Typ. -70 dBm @ MCS15 20 MHz
Typ. -64 dBm @ MCS7 40 MHz
Typ. -66 dBm @ MCS15 40 MHz
Note
-
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
- Typ. -89 dBm @ 1 Mbps
Typ. -89 dBm @ 2 Mbps
Typ. -89 dBm @ 5.5 Mbps
Typ. -88 dBm @ 11 Mbps
-
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
- Typ. -88 dBm @ 6 Mbps
Typ. -88 dBm @ 9 Mbps
Typ. -88 dBm @ 12 Mbps
Typ. -87 dBm @ 18 Mbps
Typ. -84 dBm @ 24 Mbps
Typ. -81 dBm @ 36 Mbps
Typ. -77 dBm @ 48 Mbps
Typ. -75 dBm @ 54 Mbps
-
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
- Typ. -70 dBm @ MCS7 20 MHz
Typ. -70 dBm @ MCS15 20 MHz
Typ. -64 dBm @ MCS7 40 MHz
Typ. -65 dBm @ MCS15 40 MHz
-
WLAN Operation Mode
- Client, Client-Router, Slave, Sniffer
-
Antenna
- External, 2/2 dBi, Omni-directional
-
Antenna Connectors
Ethernet Interface
-
10/100BaseT(X) Ports (RJ45 connector)
-
Standards
- IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.1Q for VLAN Tagging
Ethernet Software Features
-
Management
- DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, VLAN, Wireless Search Utility, MXview, MXconfig
-
Routing
- Port forwarding, Static Route, NAT
-
Security
-
Time Management
Firewall
-
Filter
- ICMP, MAC address, IP protocol, Port-based
Serial Interface
-
Connector
-
Serial Standards
- RS-232, RS-422/485, RS-232/422/485
-
Operation Modes
- Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP
-
Data Bits
-
Stop Bits
-
Parity
- None, Even, Odd, Space, Mark
-
Flow Control
-
Baudrate
-
Serial Data Log
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR
-
RS-422
-
RS-485-2w
-
RS-485-4w
LED Interface
-
LED Indicators
- SYS, LAN1, LAN2, WLAN, Serial
Physical Characteristics
-
Housing
-
IP Rating
-
Dimensions
- 77.1 x 115.5 x 26 mm (3.04 x 4.55 x 1.02 in)
-
Weight
-
Installation
- DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
-
Input Voltage
-
Power Connector
- 1 removable 3-contact terminal block(s)
-
Power Consumption
-
Reverse Polarity Protection
Environmental Limits
-
Operating Temperature
-
Storage Temperature (package included)
- -40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
- EN 61000-6-2/-6-4, EN 55032/24
-
EMI
- CISPR 22, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
-
Radio
- EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-1137C, ANATEL, MIC, NCC, SRRC, WPC, KC, RCM
-
Road Vehicles
-
Safety
-
Vibration
