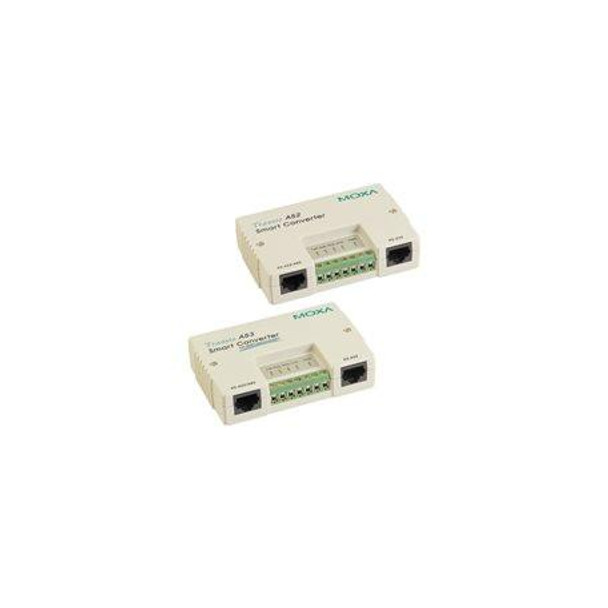

RS-232/422/485 converter with 2 kV isolation, adapter, DB25F cable
Serial Interface
-
Connector
-
Flow Control
-
Isolation
-
No. of Ports
-
RS-485 Data Direction Control
- ADDC (automatic data direction control)
-
Serial Standards
Serial Signals
-
RS-232
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422
- Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
-
RS-485-4w
-
RS-485-2w
Power Parameters
-
Input Current
-
Input Voltage
-
No. of Power Inputs
-
Overload Current Protection
-
Power Consumption
-
Source of Input Power
Physical Characteristics
-
Housing
-
IP Rating
-
Dimensions
- 90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in)
-
Weight
-
Installation
Environmental Limits
-
Operating Temperature
-
Storage Temperature (package included)
- -20 to 75°C (-4 to 167°F)
-
Ambient Relative Humidity
- 5 to 95% (non-condensing)
Standards and Certifications
-
EMC
-
EMI
- CISPR 32, FCC Part 15B Class A
-
EMS
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
-
Environmental Testing
- IEC 60068-2-1
IEC 60068-2-14
IEC 60068-2-2
IEC 60068-2-3
-
Vibration
